AK 4200/05-5.0-H-baGY

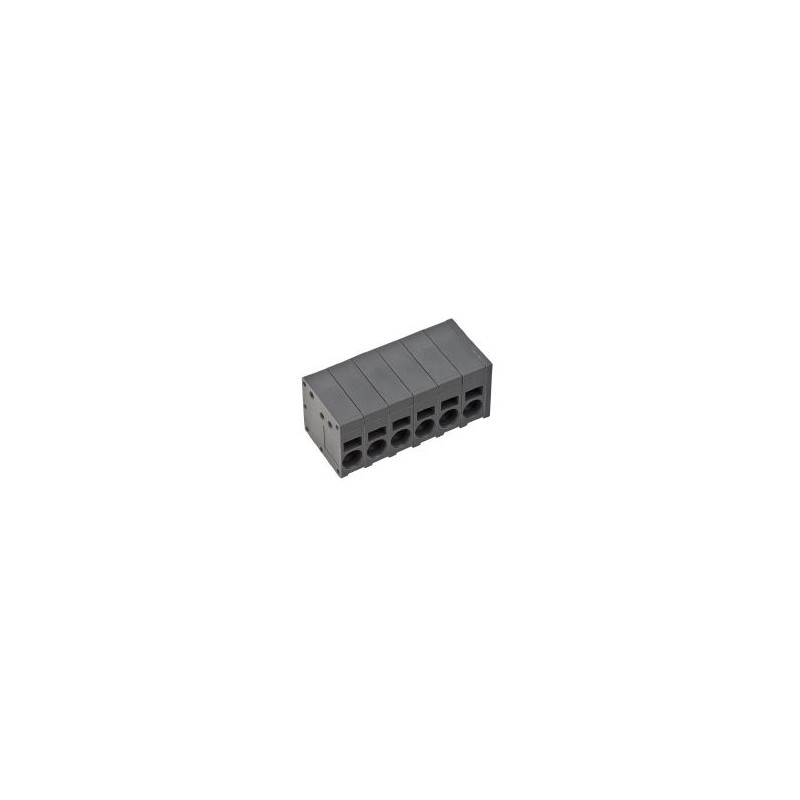

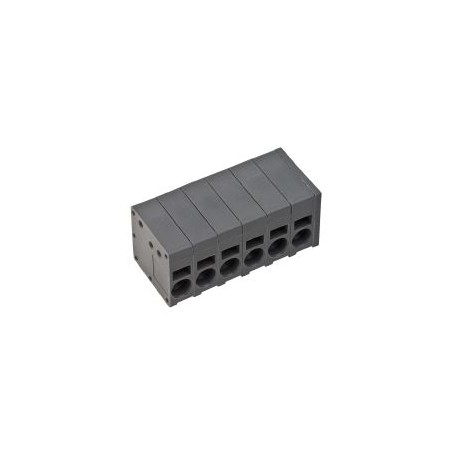

PTR spring terminal block series AK4200

  • 2- to 6-pole spring terminal blocks in grey
  • side wire entry
  • suitable for a wire cross section of 4mm2 (solid-core) resp. 2,5mm2 (fine-strand)
  • without lever
  • insulator is made of PA (UL94V-0)
  • rated voltage: 250V AC
  • rated current: 24A
  • pitch: 5mm
PTR AK4200 series

AK 4200/05-5.0-H-baGY

112358 AK 4200/05-5.0-H-baGY AK4200/5-5.0-H-BAGY AK4200/5-5.0-H-BAGY PTR spring terminal block series AK4200. 2- to 6-pole spring terminal blocks in grey side wire entry suitable for a wire cross section of 4mm2 (solid-core) resp. 2,5mm2 (fine-strand) without lever insulator is made of PA (UL94V-0) rated voltage: 250V AC rated current: 24A pitch: 5mm

Specifications

manufacturer
Manufacturer's name AK4200/5-5.0...
Number of poles 5
Depth [mm] 14,4
Height [mm] 13,5
Length [mm] 26,4
Data Sheet

Unit price

1,09 €

Stock: 0
Further delivery:
CW 06/2025

Minimum order quantity 50 units or
multiples of 50.
