AK 4200/02-5.0-V-baGY

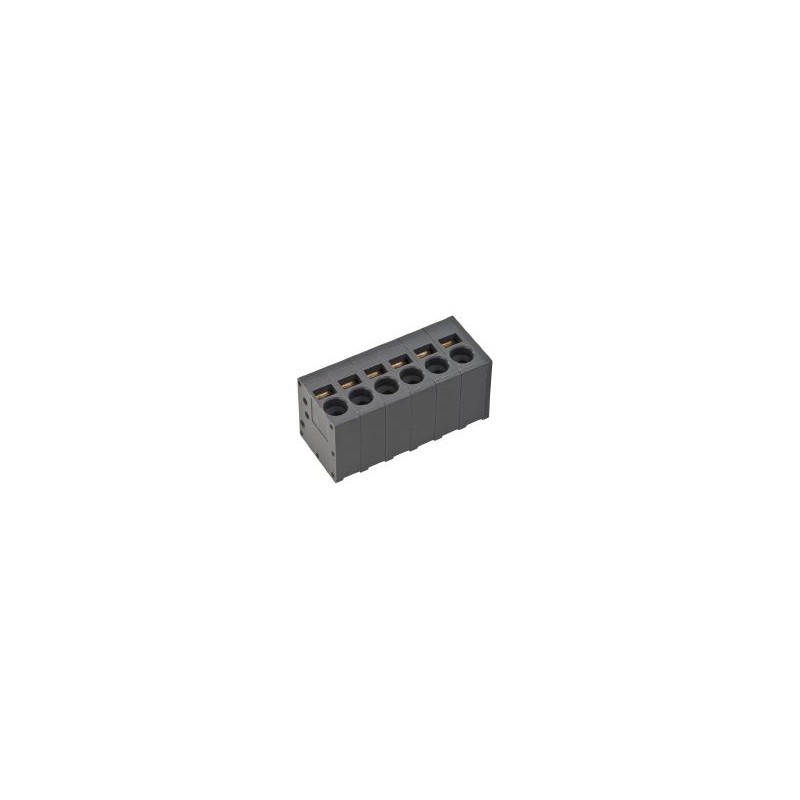

PTR spring terminal block series AK4200

  • 2- to 6-pole spring terminal blocks in grey
  • 90° wire entry angle
  • suitable for a wire cross section of 4mm2 (solid-core wire) resp. 2,5mm2 (fine-stranded wire)
  • without lever
  • insulator made of PA (UL94V-0)
  • rated voltage: 250V AC
  • rated current: 24A
  • pitch: 5mm

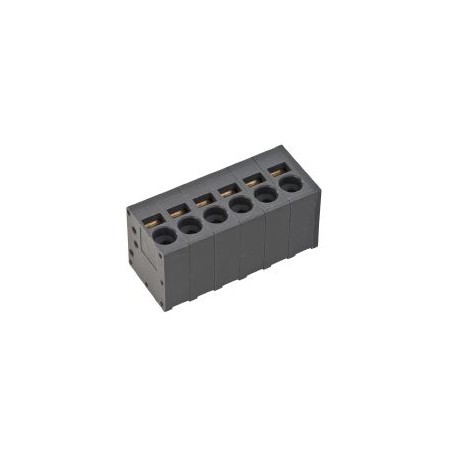

PTR AK4200 series

AK 4200/02-5.0-V-baGY

112353 AK 4200/02-5.0-V-baGY AK4200/2-5.0-V-BAGY AK4200/2-5.0-V-BAGY PTR spring terminal block series AK4200. 2- to 6-pole spring terminal blocks in grey 90° wire entry angle suitable for a wire cross section of 4mm2 (solid-core wire) resp. 2,5mm2 (fine-stranded wire) without lever insulator made of PA (UL94V-0) rated voltage: 250V AC rated current: 24A pitch: 5mm

Specifications

manufacturer
Manufacturer's name AK4200/2-5.0...
Depth [mm] 13,5
Number of poles 2
Height [mm] 14,4
Length [mm] 11,4
Data Sheet

Unit price

0,496 €

Stock: 3190
Further delivery:
CW 01/2025

Minimum order quantity 10 units or
multiples of 10.
