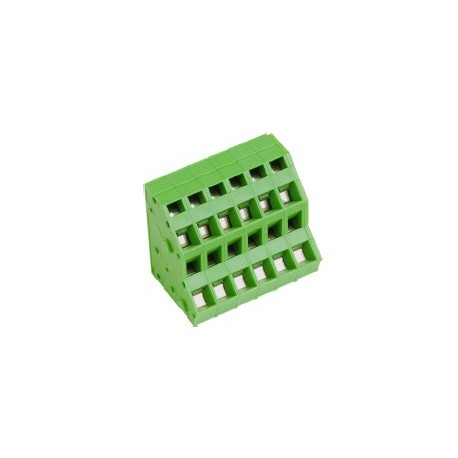

AKZ 3750/03-5.08

PTR double row spring terminal block series AK3750 and AKZ3750

  • 2- to 6-pole double row spring terminal blocks in green (RAL 6018)
  • with a lever and a 45° wire entry angle
  • suitable for a conductor cross-section of up to 2,5mm²
  • insulator is made of PA (UL94V-0)
  • rated voltage: 250V
  • rated current: 12A
  • pitch AK3750_: 5mm
  • pitch AKZ3750_: 5,08mm
PTR AKZ3750 series

AKZ 3750/03-5.08

112373 AKZ 3750/03-5.08 AKZ3750/3-5.08-GRÜN AKZ3750/3-5.08-GRÜN PTR double row spring terminal block series AK3750 and AKZ3750. 2- to 6-pole double row spring terminal blocks in green (RAL 6018) with a lever and a 45° wire entry angle suitable for a conductor cross-section of up to 2,5mm² insulator is made of PA (UL94V-0) rated voltage: 250V rated current: 12A pitch AK3750_: 5mm pitch AKZ3750_: 5,08mm

Specifications

manufacturer
Manufacturer's name AKZ3750/3-5....
Design with lever
Depth [mm] 21
Number of poles 3
Height [mm] 25,7
Pitch [mm] 5,08
Length [mm] 16,94
Data Sheet

Unit price

0,97 €

Stock: 100
Further delivery:
CW 06/2025

Minimum order quantity 10 units or
multiples of 10.
