AK 370/03-5,0-V

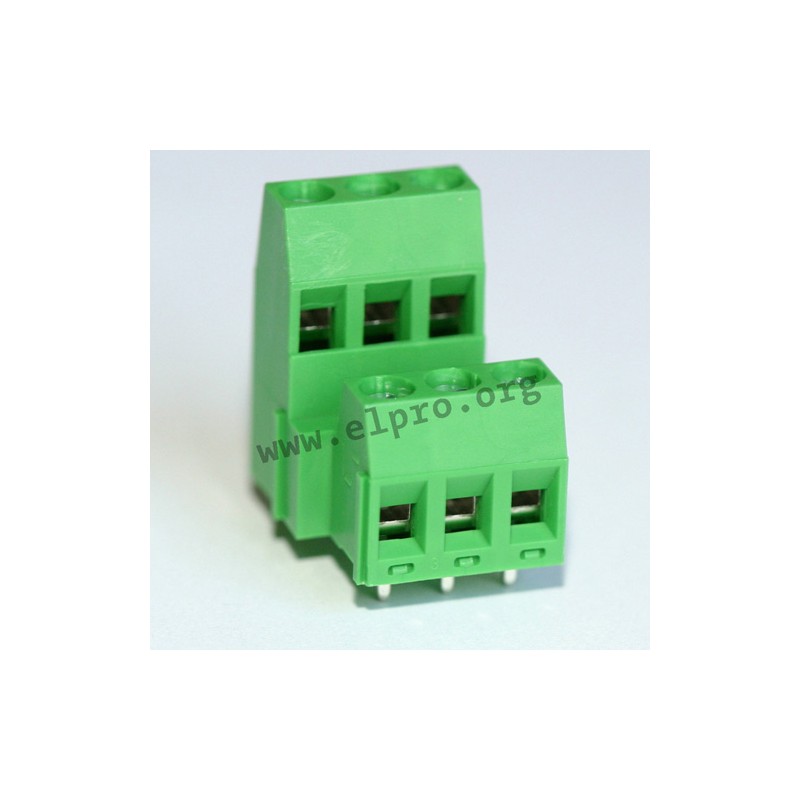

PTR double row terminal block series AK370

  • 2- and 3-pole terminal blocks with a side wire entry in green
  • screw-cage clamp principle, double row
  • suitable for a conductor cross-section of up to 2,5mm² (single stranded wire) resp. 1,5mm² (fine stranded wire)
  • insulator is made of PA (UL94V-0)
  • rated voltage: 250V
  • rated current: 24A
  • pitch: 5mm

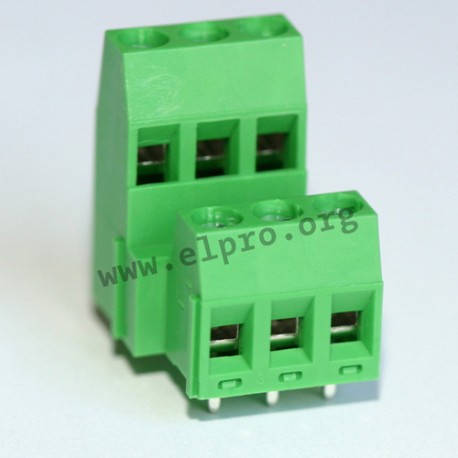

series AK370 by PTR

AK 370/03-5,0-V

13792 AK 370/03-5,0-V AK370/3-5,0-V-GRUEN AK370/3-5,0-V-GRUEN PTR double row terminal block series AK370. 2- and 3-pole terminal blocks with a side wire entry in green screw-cage clamp principle, double row suitable for a conductor cross-section of up to 2,5mm² (single stranded wire) resp. 1,5mm² (fine stranded wire) insulator is made of PA (UL94V-0) rated voltage: 250V rated current: 24A pitch: 5mm

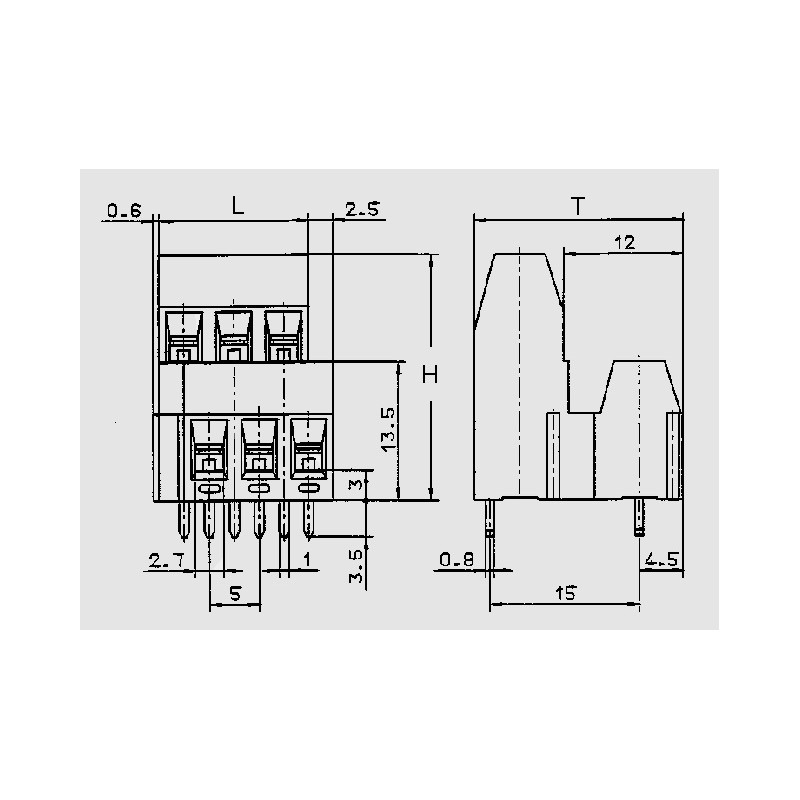

Specifications

manufacturer
Manufacturer's name AK370/3-5,0-...
Design Doppelstock,...
Number of poles 3
Height [mm] 24,1
T [mm] 21
Length [mm] 15
Data Sheet

Unit price

0,992 €

Stock: 2170
Further delivery:
CW 01/2025

Minimum order quantity 10 units or
multiples of 10.
