AK 350/04-5,0-V

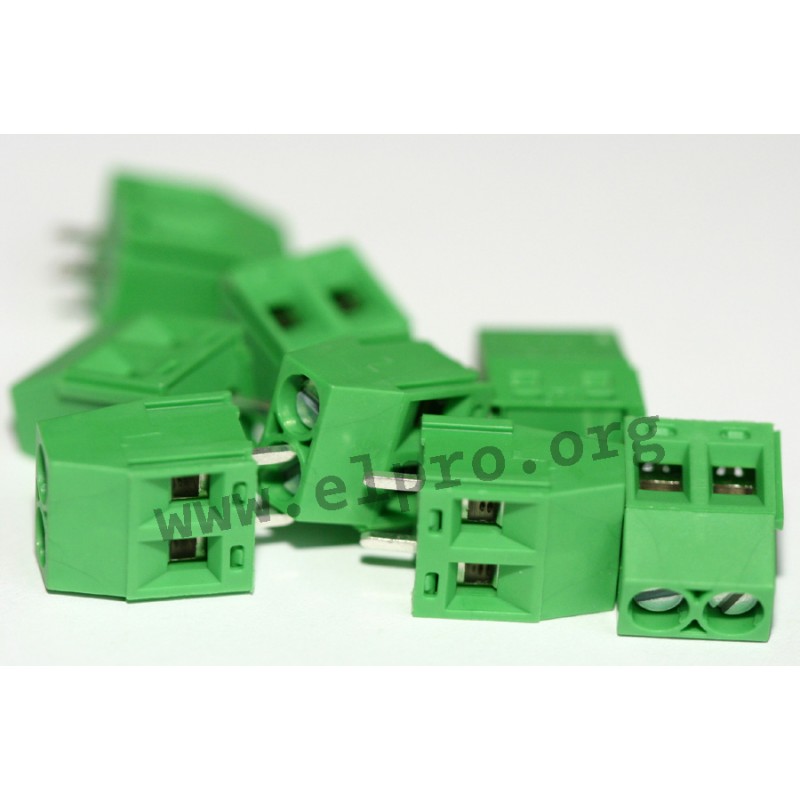

PTR terminal block series AK350

  • screw-cage clamp principle
  • side wire entry
  • 2-, 3-, 4-, 5- or 6-pole
  • pitch: 5mm
  • rated voltage (EN 60998): 250V
  • rated current (T60): 17,5A
  • test voltage: 2kV
  • rated cross section single-stranded wire: 2.5mm²
  • rated cross section fine-stranded wire: 1.5mm²
  • stripped length: 6mm
  • insulating material: PA
  • temperature range: -30 to +105°C
  • flammability class: UL94V-0
  • colour: green
PTR terminal blocks

AK 350/04-5,0-V

112436 AK 350/04-5,0-V AK350/4-5.0-V-GRÜN AK350/4-5.0-V-GRÜN PTR terminal block series AK350. screw-cage clamp principle side wire entry 2-, 3-, 4-, 5- or 6-pole pitch: 5mm rated voltage (EN 60998): 250V rated current (T60): 17,5A test voltage: 2kV rated cross section single-stranded wire: 2.5mm² rated cross section fine-stranded wire: 1.5mm² stripped length: 6mm insulating material: PA temperature range: -30 to +105°C flammability class: UL94V-0 colour: green

Specifications

manufacturer
Manufacturer's name AK350/4-5.0-V-GRÜN
Design screw-cage...
Number of poles 4
Height [mm] 13,5
Pitch [mm] 5
T [mm] 9
Length [mm] 20,6
Data Sheet

Unit price

0,607 €

Stock: 300
Further delivery:
CW 01/2025

Minimum order quantity 50 units or
multiples of 50.
