AK 3001/04 KD-5,0

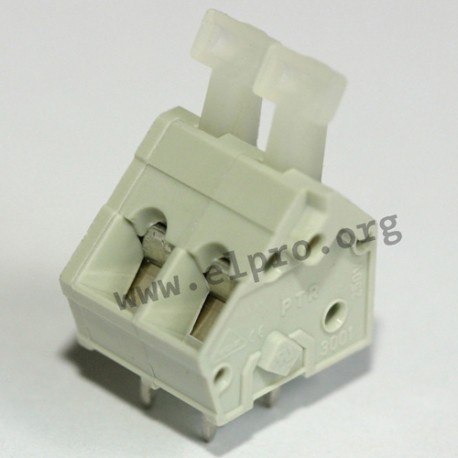

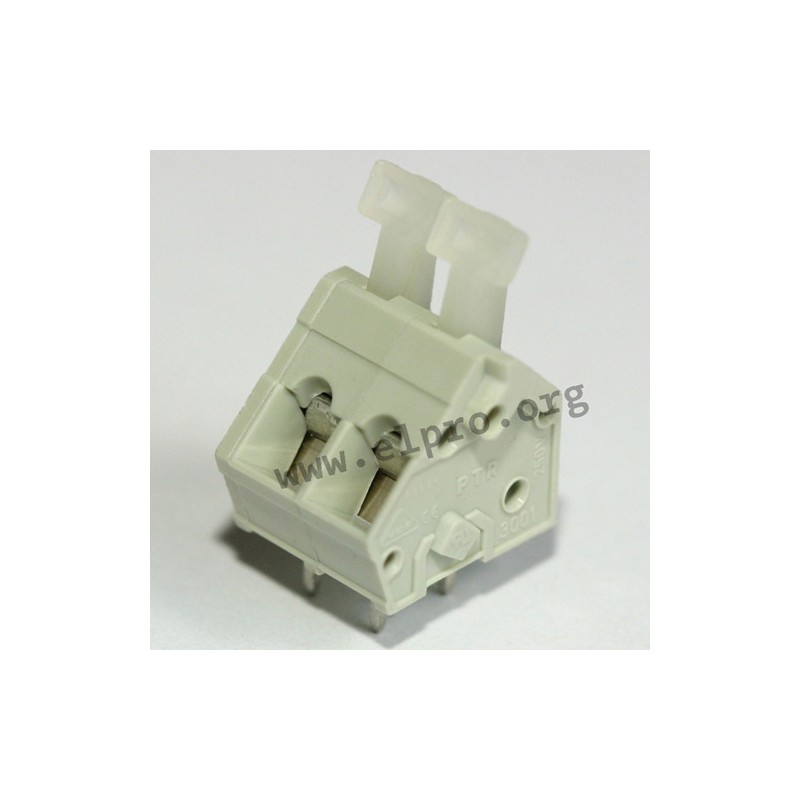

PTR spring terminal block series AK3001

  • 2- to 10-pole spring terminal blocks in pebble grey
  • side wire entry
  • stackable
  • with lever
  • suitable for a wire cross section of 2,5mm2
  • insulator is made of PA (UL94V-0)
  • rated voltage: 250V AC
  • rated current: 24A
  • pitch: 5mm (adjustable to 5,08mm)

AK 3001/04 KD-5,0

13786 AK 3001/04 KD-5,0 AK3001/4-KD-5.0/KIES AK3001/4-KD-5.0/KIES PTR spring terminal block series AK3001. 2- to 10-pole spring terminal blocks in pebble grey side wire entry stackable with lever suitable for a wire cross section of 2,5mm2 insulator is made of PA (UL94V-0) rated voltage: 250V AC rated current: 24A pitch: 5mm (adjustable to 5,08mm)

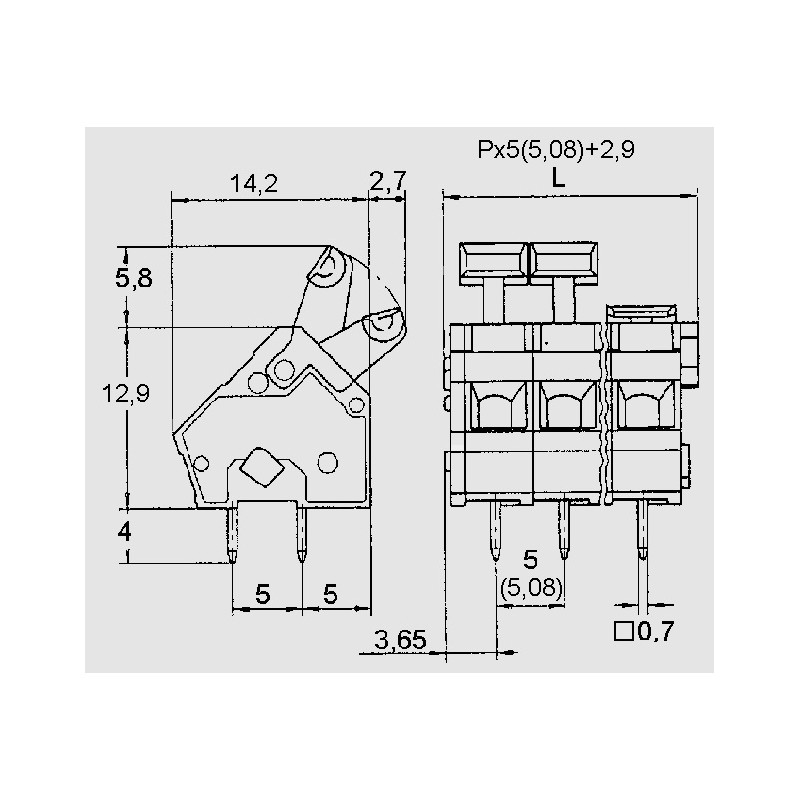

Specifications

manufacturer
Manufacturer's name AK3001/4-KD-...
Design with lever
Number of poles 4
Height [mm] 12,9
Pitch [mm] 5 / 5,08
T [mm] 14,2
Length [mm] 22,9
Data Sheet

Unit price

0,738 €

Stock: 3583
Further delivery:
CW 01/2024

Minimum order quantity 1 to 3 units or multiples of 10 plus 0 to 3 .
