AK 300/05-5.0

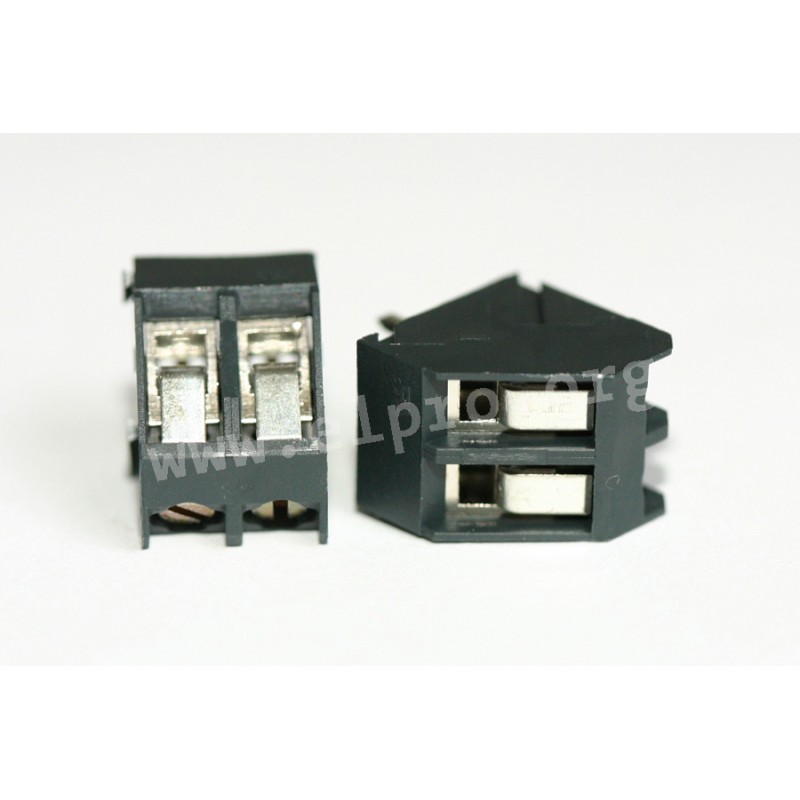

PTR terminal block series AK300

  • 2- to 6-pole terminal blocks with a 45° wire entry angle
  • screw-cage clamp principle
  • suitable for a conductor cross-section of 2,5mm² (single-stranded wire) resp. 1,5mm² (fine-stranded wire)
  • insulator is made of PA (UL94V-0)
  • in dark grey
  • rated voltage: 250V
  • rated current: 24A
  • pitch: 5mm
PTR terminal blocks

AK 300/05-5.0

112458 AK 300/05-5.0 AK300/5-5,0-GRAU AK300/5-5,0-GRAU PTR terminal block series AK300. 2- to 6-pole terminal blocks with a 45° wire entry angle screw-cage clamp principle suitable for a conductor cross-section of 2,5mm² (single-stranded wire) resp. 1,5mm² (fine-stranded wire) insulator is made of PA (UL94V-0) in dark grey rated voltage: 250V rated current: 24A pitch: 5mm

Specifications

manufacturer
Manufacturer's name AK300/5-5,0-GRAU
Design screw-cage...
Number of poles 5
Height [mm] 12,5
Pitch [mm] 5,0
T [mm] 12,5
Length [mm] 25,6
Data Sheet

Unit price

0,676 €

Stock: 200
Further delivery:
CW 01/2025

Minimum order quantity 50 units or
multiples of 50.
