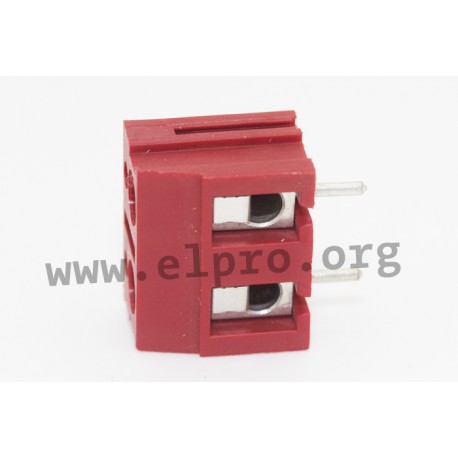

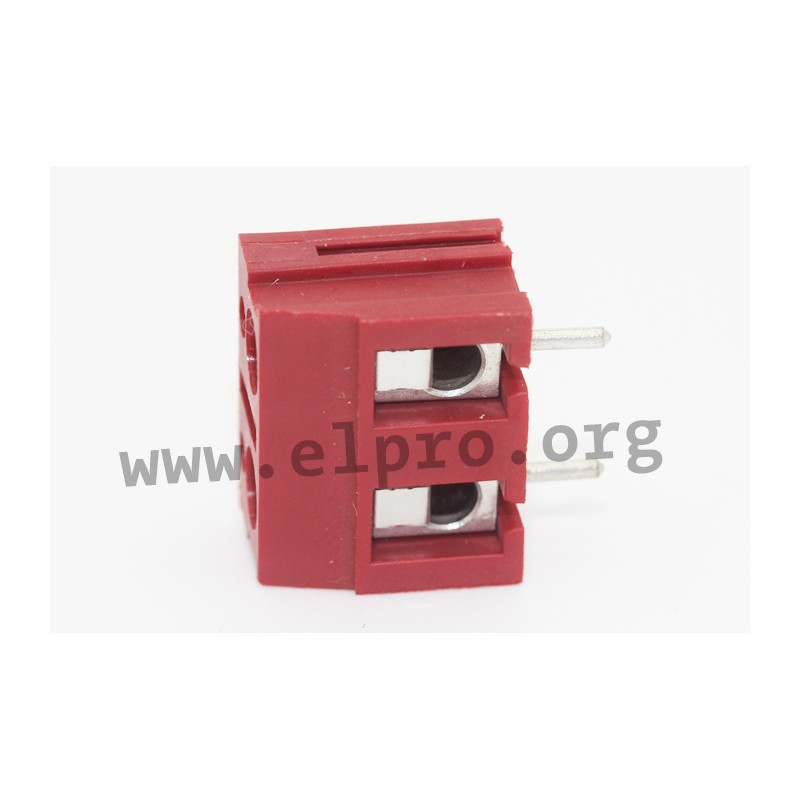

AK 110/02 DS-7,5-V-rot

PTR terminal block series AK110

  • 2- to 6-pole terminal blocks with a side wire entry
  • in grey or red
  • screw principle with wire guard
  • suitable for a wire cross section of 0,5 to 2,5mm²
  • insulator made of PA (UL94V-0)
  • rated voltage: 500V
  • rated current: 24A
  • pitch: 7,5mm
AK 110/02 DS-7,5-V-rot

AK 110/02 DS-7,5-V-rot

13765 AK 110/02 DS-7,5-V-rot AK110/2DS-7,5-V/ROT AK110/2DS-7,5-V/ROT PTR terminal block series AK110. 2- to 6-pole terminal blocks with a side wire entry in grey or red screw principle with wire guard suitable for a wire cross section of 0,5 to 2,5mm² insulator made of PA (UL94V-0) rated voltage: 500V rated current: 24A pitch: 7,5mm

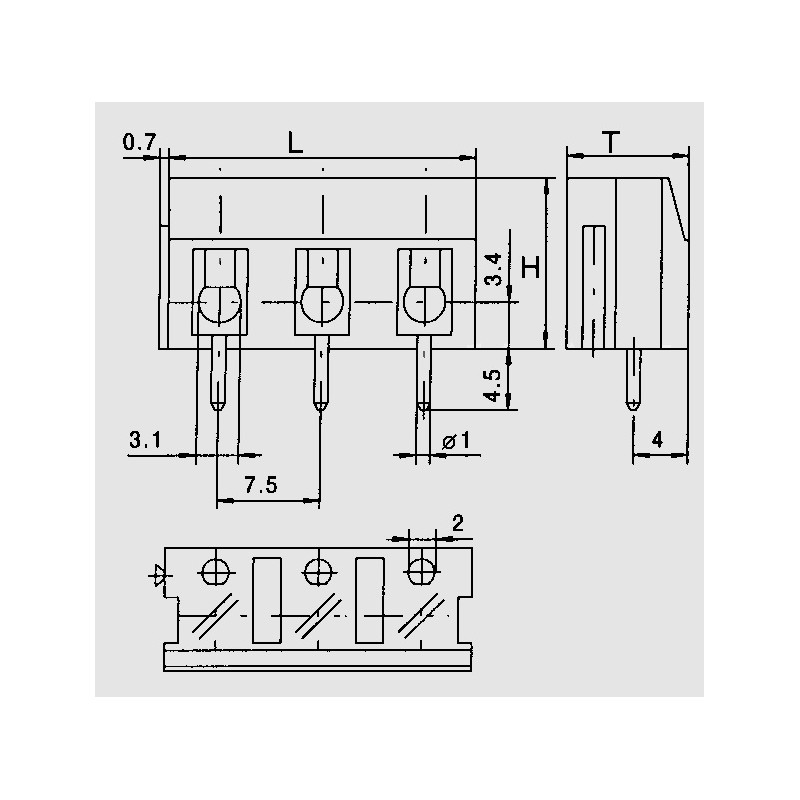

Specifications

manufacturer
Manufacturer's name AK110/2DS-7,...
Design screw principle
Colour red
Number of poles 2
Height [mm] 12,5
T [mm] 9
Length [mm] 15
Data Sheet

Unit price

0,221 €

Stock: 6404
Next incoming goods:
CW 51/2024
1400 units

Further delivery:
CW 05/2025

Minimum order quantity 1 to 4 units or multiples of 50 plus 0 to 4 .
