AK 100/02 DS-5.0-V

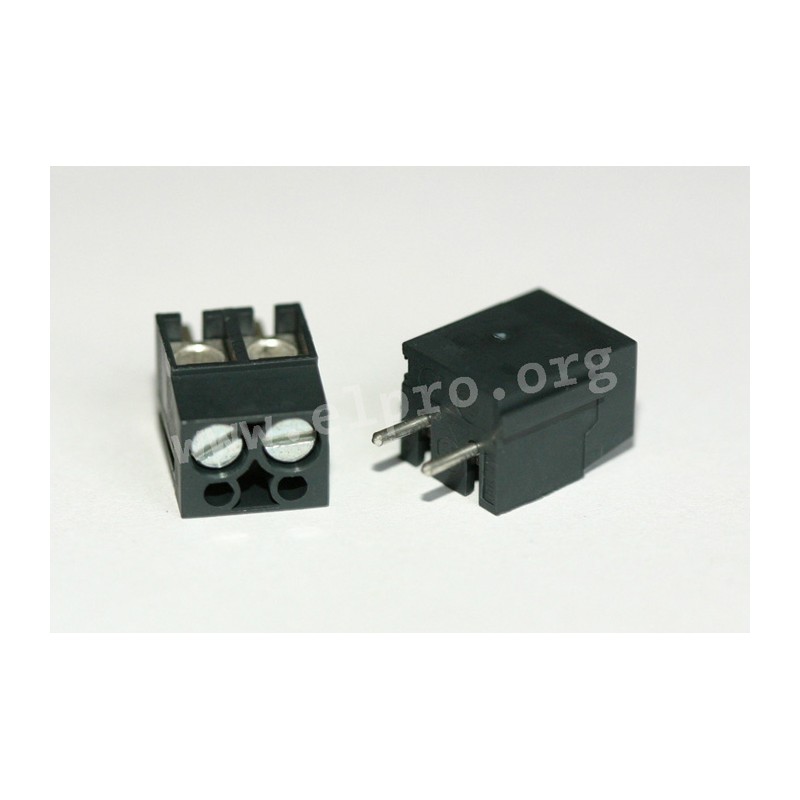

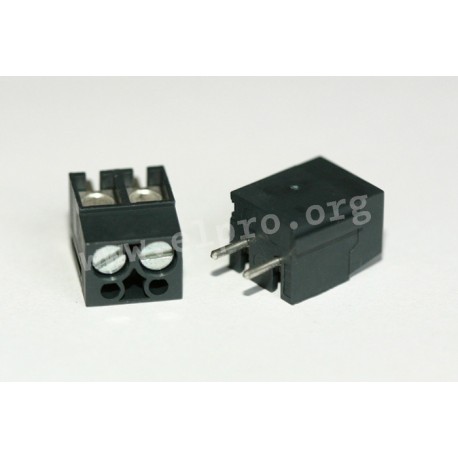

PTR terminal block series AK100

  • 2- to 6-pole terminal blocks with a side wire entry in dark grey
  • screw principle with wire guard
  • suitable for a conductor cross-section of 2,5mm²
  • insulator is made of PA (UL94V-0)
  • rated voltage: 250V
  • rated current: 24A
  • pitch: 5mm
AK 100/02 DS-5.0-V

AK 100/02 DS-5.0-V

13776 AK 100/02 DS-5.0-V AK100/2DS-5,0-V/GRAU AK100/2DS-5,0-V/GRAU PTR terminal block series AK100. 2- to 6-pole terminal blocks with a side wire entry in dark grey screw principle with wire guard suitable for a conductor cross-section of 2,5mm² insulator is made of PA (UL94V-0) rated voltage: 250V rated current: 24A pitch: 5mm

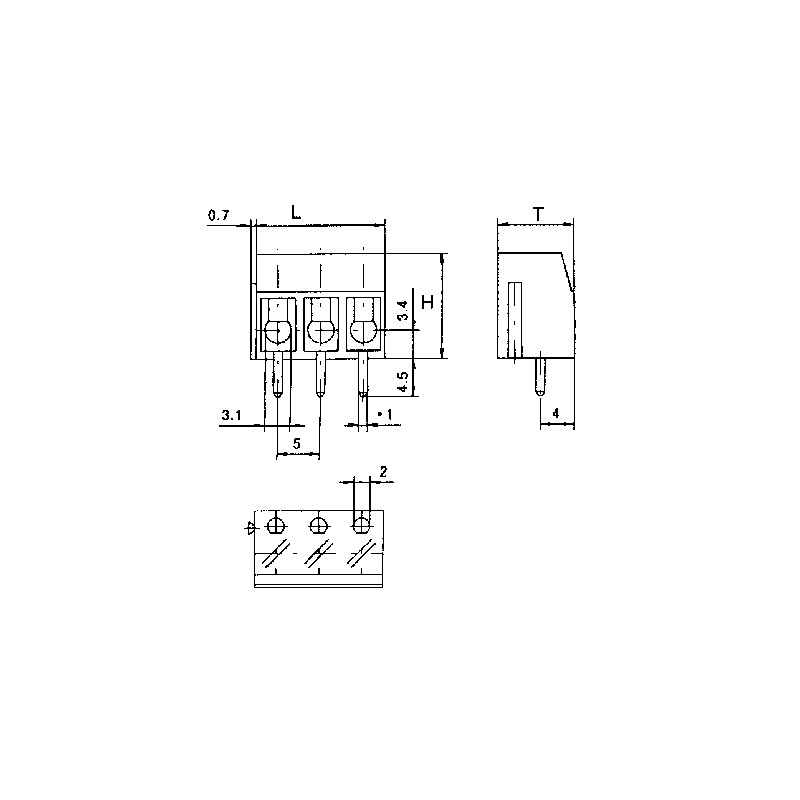

Specifications

manufacturer
Manufacturer's name AK100/2DS-5,...
Design screw principle
Number of poles 2
Height [mm] 12,5
Pitch [mm] 5
T [mm] 9
Length [mm] 10,7
Data Sheet

Unit price

0,144 €

Stock: 6235
Further delivery:
CW 05/2025

Minimum order quantity 1 to 35 units or multiples of 50 plus 0 to 35 .
