AK 100/06 DS-5.0-H

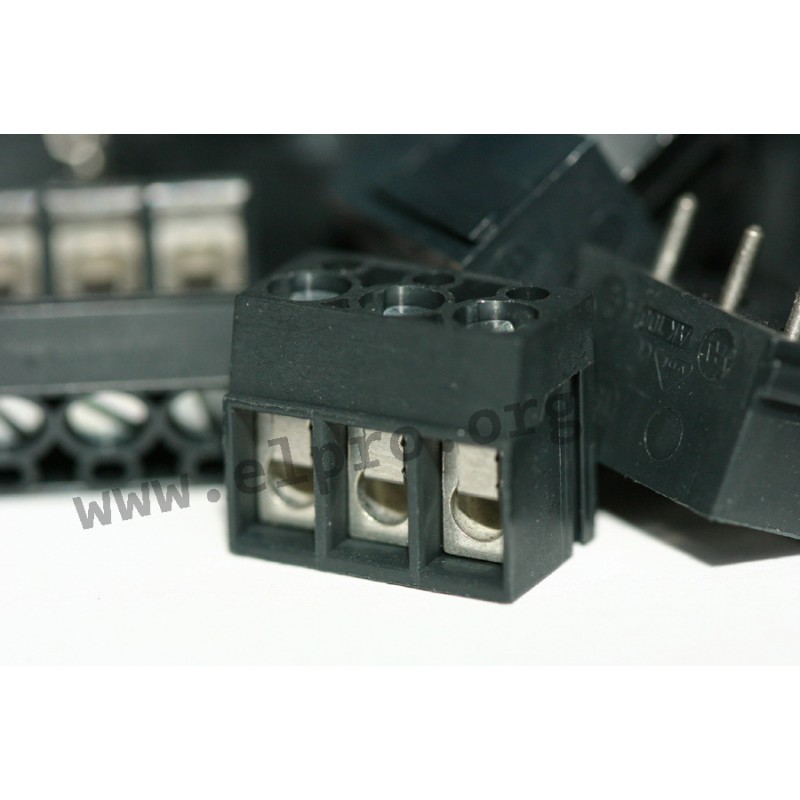

PTR terminal block series AK100

  • 2- to 6-pole terminal blocks in dark grey
  • screw principle with wire guard
  • 90° wire entry angle (top wire entry)
  • suitable for a wire cross section of 2,5mm²
  • rated voltage (EN 60998): 250V
  • rated current: 24A
  • insulator made of PA (UL94V-0)
  • operating temperature: -30°C to +105°C
  • pitch: 5mm
PTR terminal blocks

AK 100/06 DS-5.0-H

112449 AK 100/06 DS-5.0-H AK100/6DS-5.0-H-GRAU AK100/6DS-5.0-H-GRAU PTR terminal block series AK100. 2- to 6-pole terminal blocks in dark grey screw principle with wire guard 90° wire entry angle (top wire entry) suitable for a wire cross section of 2,5mm² rated voltage (EN 60998): 250V rated current: 24A insulator made of PA (UL94V-0) operating temperature: -30°C to +105°C pitch: 5mm

Specifications

manufacturer
Manufacturer's name AK100/6DS-5....
Design screw principle
Number of poles 6
Height [mm] 12,5
Pitch [mm] 5
T [mm] 9
Length [mm] 30,7
Data Sheet

Unit price

0,67 €

Stock: 150
Further delivery:
CW 01/2025

Minimum order quantity 50 units or
multiples of 50.
