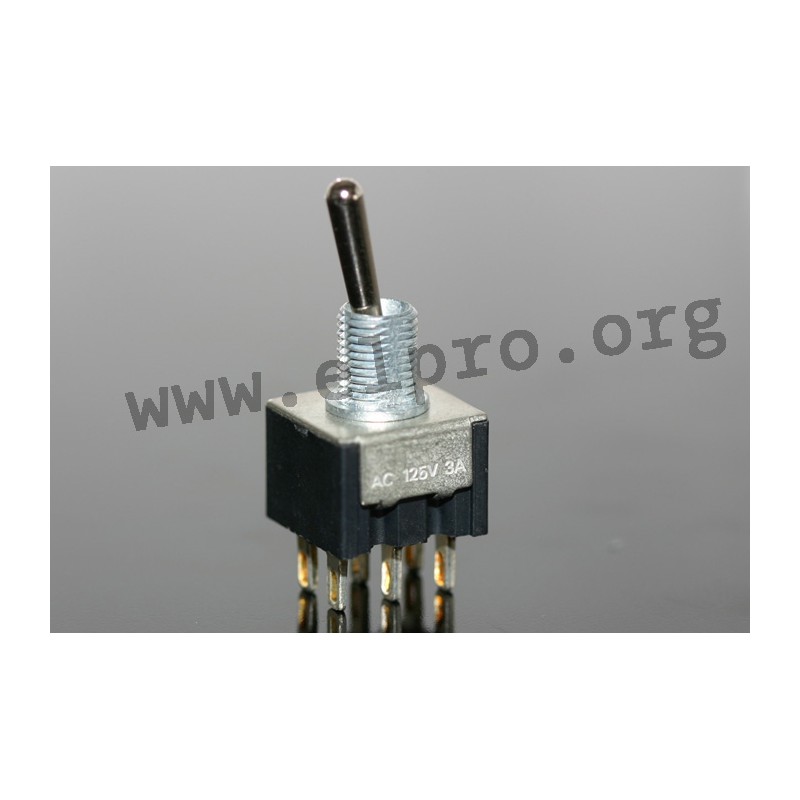

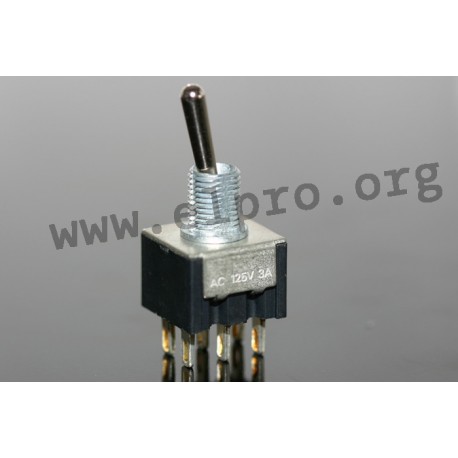

KNX 8

for Ø6.35mm panel cutouts

* transfer resistance: <30mΩ
* insulation resistance: >500MΩ/500V
* DC dielectric strength: 500V AC/1Min.
* life expectancy under nominal load: 10.000 cycles
* life expectancy, unloaded: 15 - 18 cycles/min.
* switching lever, lenght: 10mm
* switching lever, Ø: 2.9mm
* 1/4-40UNS thread
* 6.35mm housing bores
* output KNX 5: 50V DC/0,5A
* output KNX 6/KNX 7/KNX 8: 28V DC/3A
KNX 8

KNX 8

13253 KNX 8 WT22I03-T(P1)17.4 WT22I03-T(P1)17.4 for Ø6.35mm panel cutouts. * transfer resistance: &lt;30mΩ * insulation resistance: &gt;500MΩ/500V * DC dielectric strength: 500V AC/1Min. * life expectancy under nominal load: 10.000 cycles * life expectancy, unloaded: 15 - 18 cycles/min. * switching lever, lenght: 10mm * switching lever, Ø: 2.9mm * 1/4-40UNS thread * 6.35mm housing bores * output KNX 5: 50V DC/0,5A * output KNX 6/KNX 7/KNX 8: 28V DC/3A

Specifications

manufacturer
Manufacturer's name WT22I03-T(P1)17.4
Switch positions 2x ON-ON
Switching current [A] 3
Panel cut-out [mm] Ø6,35

Unit price

1,22 €

Stock: 1470
Further delivery:
CW 09/2025

Minimum order quantity 10 units or
multiples of 10.
