B 500 C 10000 FS

power bridge rectifiers 10 A

• case: epoxy with cooling plate
• glass passivated
• thermal resistance, typical, 2°K/W
• operating temperature range -55...+150°C
• flat steel

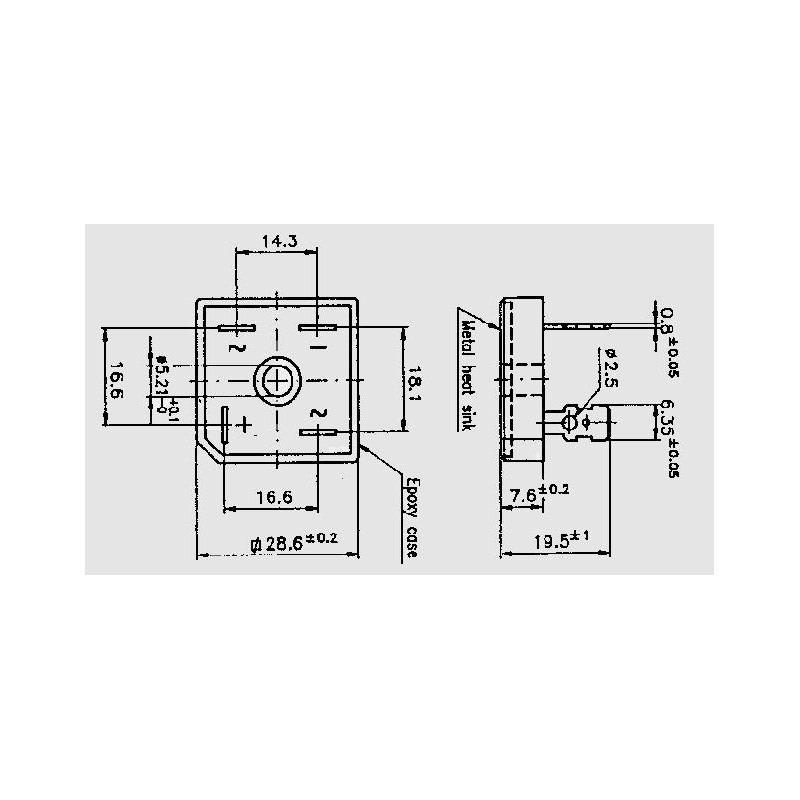

dimensions B _ C 10000 FS

B 500 C 10000 FS

25809 B 500 C 10000 FS B 500 C 10000 FS power bridge rectifiers 10 A. • case: epoxy with cooling plate• glass passivated• thermal resistance, typical, 2°K/W• operating temperature range -55...+150°C• flat steel

Discontinued items. Only remainder of stock available.

Specifications

Case power bridge...
(Max.) peak recurrent reverse voltage [V] 1000
Forward voltage [V] 1,1
(Max.) average forward (rectified) current [A] 10
Reverse current [µA] 5
(Max.) RMS voltage [V] 700

Unit price

1,99 €

Stock: 3
