> Passive elements>Potentiometers>Trimmer potentiometers>Piher trimmer potentiometers, 0,33W, horizontal, PTC10LV series>PTC 10 LV 500 k

Manufacturers

PTC 10 LV 500 k

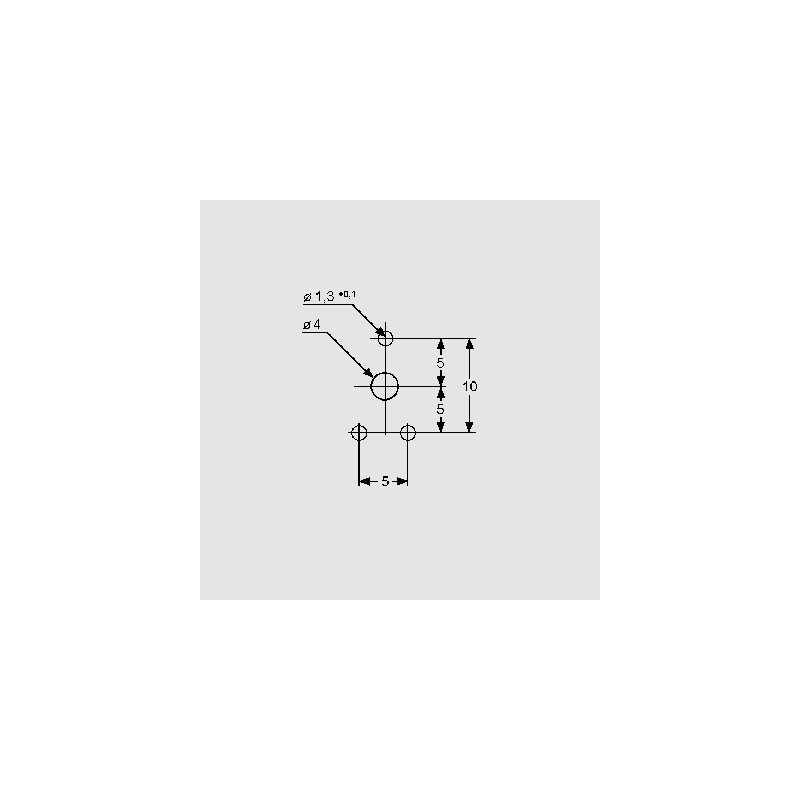

pitch 5/10mm

• cermet resistive element
• dust-proof enclosure
• plastic material according to DIN, UL94V-0
• excellent stability, multipurpose applications as variable film potentiometer
• wiper positioned at 50% or fully clockwise
• resistant against cleaning agents, ultrasonic cleaning possible
• taper: linear
• power rating, max. (TU = 70°C): 0.33W
• operating voltage, max.: 200V DC
• temperature range: -40...+90°C

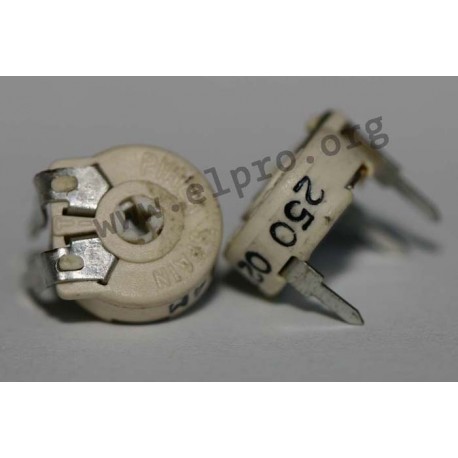

Piher series PTC-10

PTC 10 LV 500 k

10518 PTC 10 LV 500 k PTC10LV10504A2020 PTC10LV10504A2020 pitch 5/10mm. * cermet resistive element* dust-proof enclosure* plastic material according to DIN, UL94V-0* excellent stability, multipurpose applications as variable film potentiometer* wiper positioned at 50% or fully clockwise* resistant against cleaning agents, ultrasonic cleaning possible* taper: linear* power rating, max. (TU = 70°C): 0.33W* operating voltage, max.: 200V DC* temperature range: -40...+90°C

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name PTC10LV10504A2020
Resistance [Ω] 500k
Power, max. [W] 0,33
Data Sheet

Unit price

0,66 €

Stock: 15
