PTC 10 LV 5 k

pitch 5/10mm

* cermet resistive element
* dust-proof enclosure
* plastic material according to DIN, UL94V-0
* excellent stability, multipurpose applications as variable film potentiometer
* wiper positioned at 50% or fully clockwise
* resistant against cleaning agents, ultrasonic cleaning possible
* taper: linear
* power rating, max. (TU = 70°C): 0.33W
* operating voltage, max.: 200V DC
* temperature range: -40...+90°C

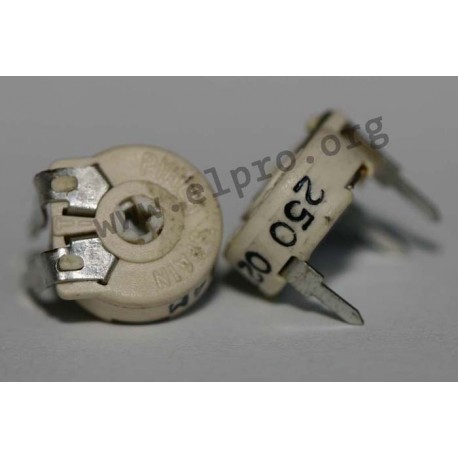

Piher series PTC-10

PTC 10 LV 5 k

10516 PTC 10 LV 5 k PTC10LV10-502A2020 PTC10LV10-502A2020 pitch 5/10mm. * cermet resistive element* dust-proof enclosure* plastic material according to DIN, UL94V-0* excellent stability, multipurpose applications as variable film potentiometer* wiper positioned at 50% or fully clockwise* resistant against cleaning agents, ultrasonic cleaning possible* taper: linear* power rating, max. (TU = 70°C): 0.33W* operating voltage, max.: 200V DC* temperature range: -40...+90°C

Specifications

manufacturer
Manufacturer's name PTC10LV10-502A2020
Resistance [Ω] 5k
Power, max. [W] 0,33
Data Sheet

Unit price

0,644 €

Stock: 819
Further delivery:
CW 02/2025

Minimum order quantity 1 to 9 units or multiples of 10 plus 0 to 9 .
