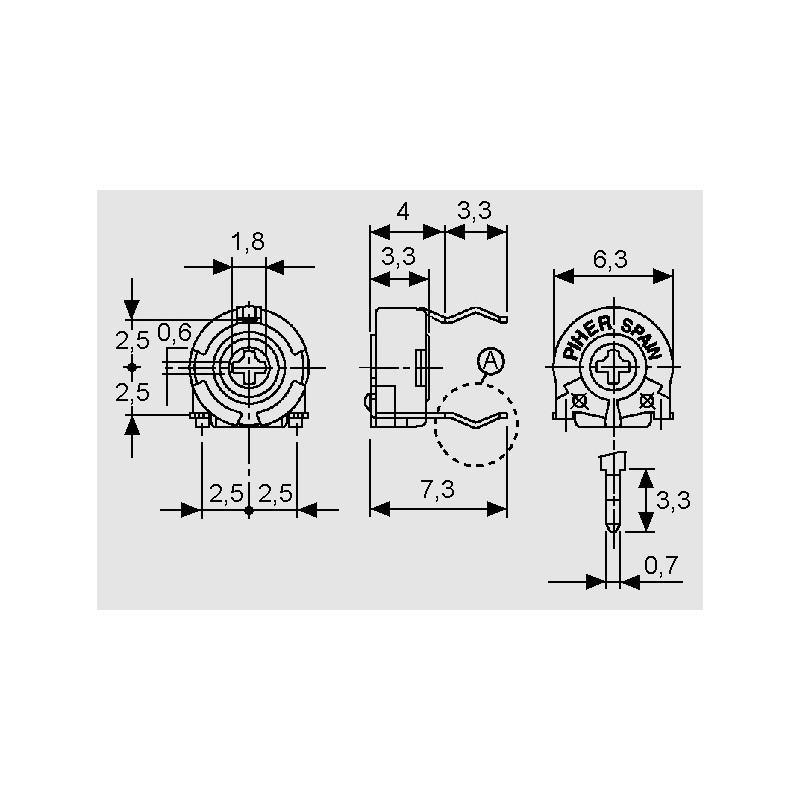

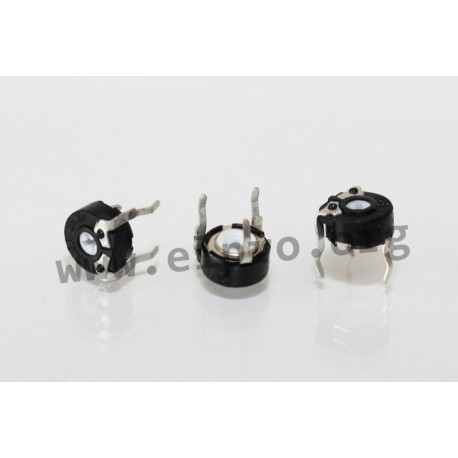

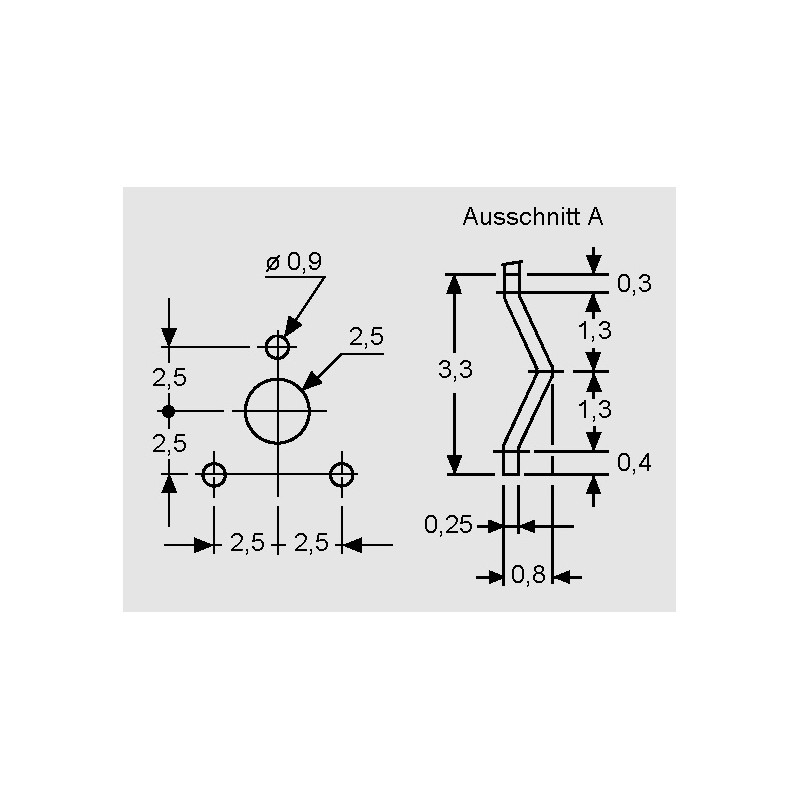

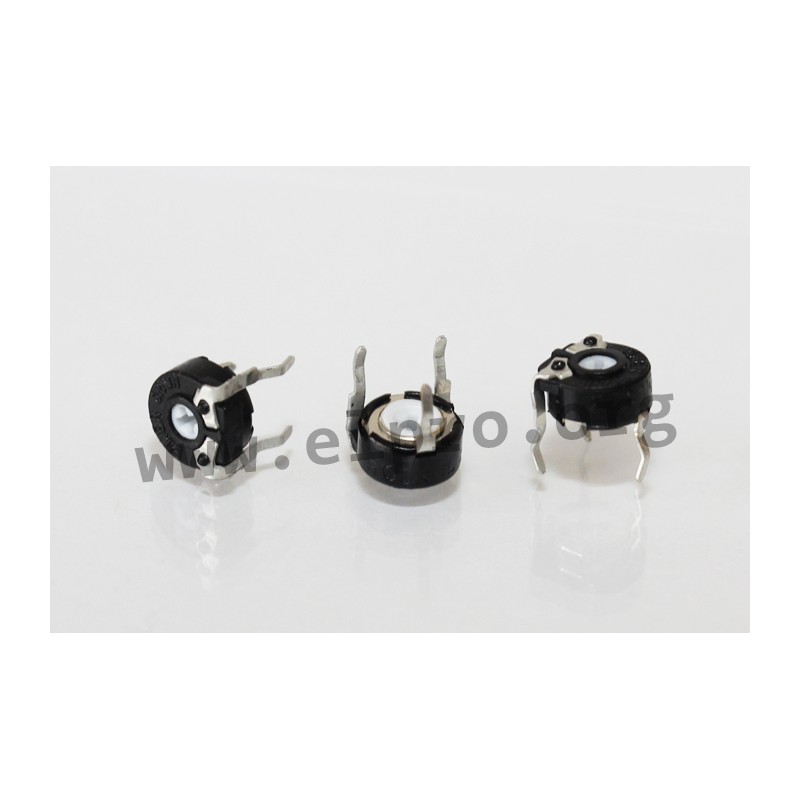

PT 6 KV 1 k
* series: PT6, top adjustment
* shaft: arrow slot
* by Piher
* pitch: 5/5mm
* housing: Ø 6mm
* polyester substrate
* sealed enclosure, dust and colophony proof, protected against harmful influences
* double wiper, dual support
* excellent stability, multipurpose applications as variable film potentiometer
* wiper positioned at 50% or fully clockwise
* resistant against cleaning agents, ultrasonic cleaning possible
* taper: linear
* power rating (TU = 40°C): 0.1W
* operating voltage, max.: 100V DC
* resistance tolerance =1MΩ: ±20%
* resistance tolerance >1MΩ: ±30%
* temperature range: -25...+70°C
* resistance tolerance mechanical: 235 ±5°
* resistance tolerance electrical: 220 ±20°
* torque: 0.2...2Ncm
* stop torque: 4Ncm
* diameter: 6.3mm
* depth: 3.3mm
* resistance and production code
carbon trimmers PT6KV by Piher
* power: 0.1W* series: PT6, top adjustment
* shaft: arrow slot
* by Piher
* pitch: 5/5mm
* housing: Ø 6mm
* polyester substrate
* sealed enclosure, dust and colophony proof, protected against harmful influences
* double wiper, dual support
* excellent stability, multipurpose applications as variable film potentiometer
* wiper positioned at 50% or fully clockwise
* resistant against cleaning agents, ultrasonic cleaning possible
* taper: linear
* power rating (TU = 40°C): 0.1W
* operating voltage, max.: 100V DC
* resistance tolerance =1MΩ: ±20%
* resistance tolerance >1MΩ: ±30%
* temperature range: -25...+70°C
* resistance tolerance mechanical: 235 ±5°
* resistance tolerance electrical: 220 ±20°
* torque: 0.2...2Ncm
* stop torque: 4Ncm
* diameter: 6.3mm
* depth: 3.3mm
* resistance and production code
PT 6 KV 1 k
Specifications
| manufacturer | Piher |
| Manufacturer's name | PT6KV-102A2020 |
| Resistance [Ω] | 1k |
| Power, max. [W] | 0,1 |
