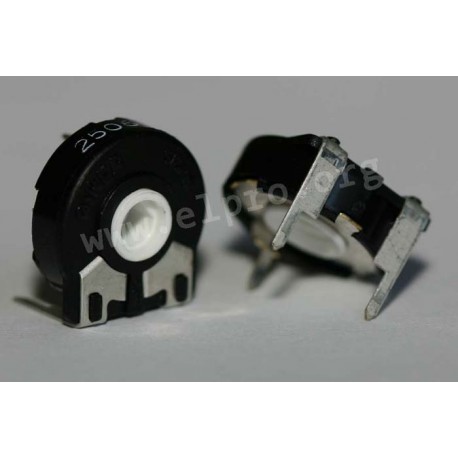

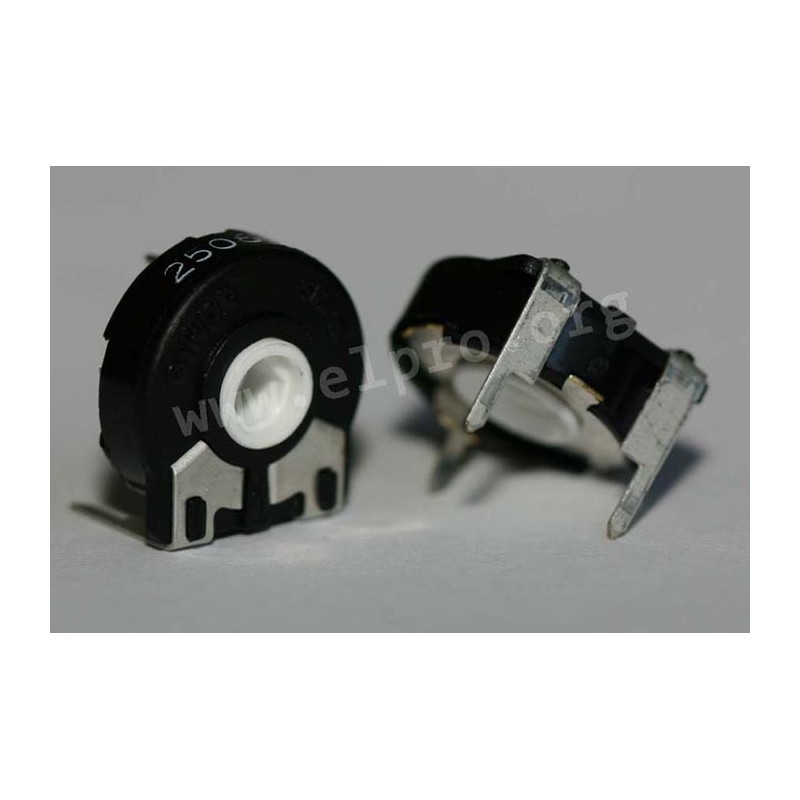

PT 15 LV 500 k

pitch 10/12.5mm

* horizonzal
* high quality polyester substrate
* sealed enclosure, dust and colophony proof, protected against harmful influences
* double wiper, dual support
* excellent stability, multipurpose applications as variable film potentiometer
* resistant against cleaning agents, ultrasonic cleaning possible
* taper: linear
* power rating (TU = 40°C): 0.25W
* operating voltage, max.: 250V DC
* temperature range: -25...+70°C

PT 15 LV 500 k

10490 PT 15 LV 500 k PT15NV02-504A2020-S PT15NV02-504A2020-S pitch 10/12.5mm. * horizonzal* high quality polyester substrate* sealed enclosure, dust and colophony proof, protected against harmful influences* double wiper, dual support* excellent stability, multipurpose applications as variable film potentiometer* resistant against cleaning agents, ultrasonic cleaning possible* taper: linear* power rating (TU = 40°C): 0.25W* operating voltage, max.: 250V DC* temperature range: -25...+70°C

Specifications

manufacturer
Manufacturer's name PT15NV02-504...
Resistance [Ω] 500k
Power, max. [W] 0,25
Data Sheet

Unit price

0,284 €

Stock: 238
Further delivery:
CW 06/2025

Minimum order quantity 1 to 13 units or multiples of 25 plus 0 to 13 .
