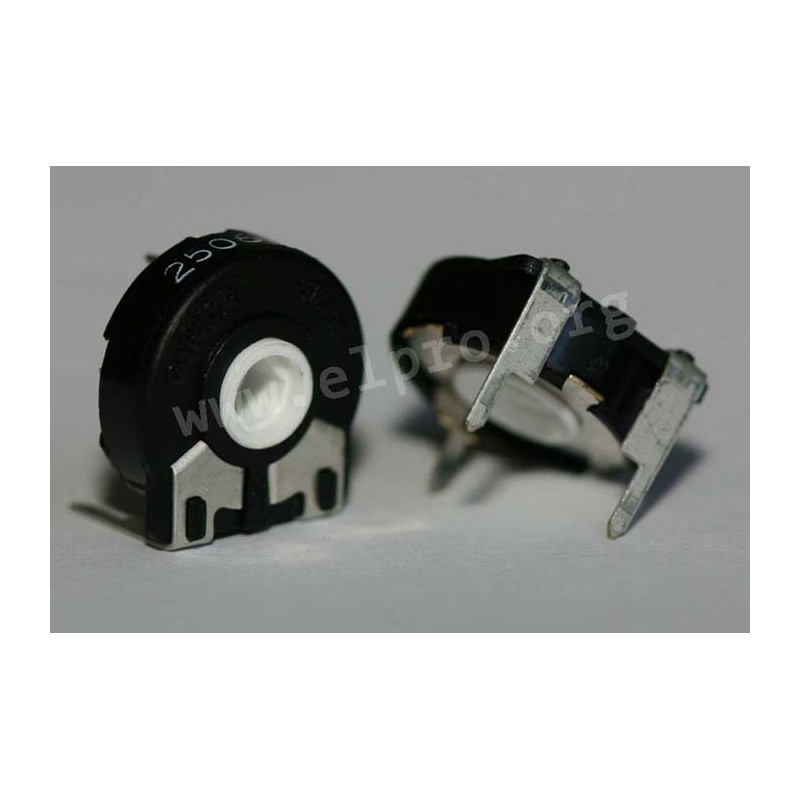

PT 15 LV 2,5 M

pitch 10/12.5mm

* horizonzal
* high quality polyester substrate
* sealed enclosure, dust and colophony proof, protected against harmful influences
* double wiper, dual support
* excellent stability, multipurpose applications as variable film potentiometer
* resistant against cleaning agents, ultrasonic cleaning possible
* taper: linear
* power rating (TU = 40°C): 0.25W
* operating voltage, max.: 250V DC
* temperature range: -25...+70°C
PT 15 LV 2,5 M

PT 15 LV 2,5 M

10482 PT 15 LV 2,5 M PT 15 LV 2,5 M pitch 10/12.5mm. * horizonzal* high quality polyester substrate* sealed enclosure, dust and colophony proof, protected against harmful influences* double wiper, dual support* excellent stability, multipurpose applications as variable film potentiometer* resistant against cleaning agents, ultrasonic cleaning possible* taper: linear* power rating (TU = 40°C): 0.25W* operating voltage, max.: 250V DC* temperature range: -25...+70°C

Discontinued items. Only remainder of stock available.

Specifications

Resistance [Ω] 2,5M
Power, max. [W] 0,25
Data Sheet

Unit price

0,231 €

Stock: 135

Minimum order quantity 1 to 10 units or multiples of 25 plus 0 to 10 .
