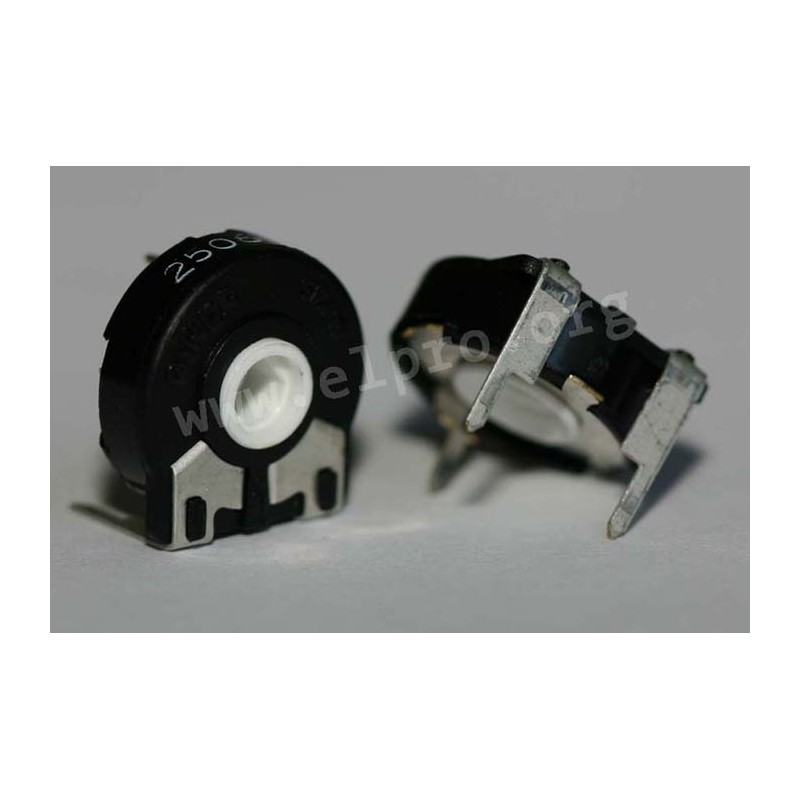

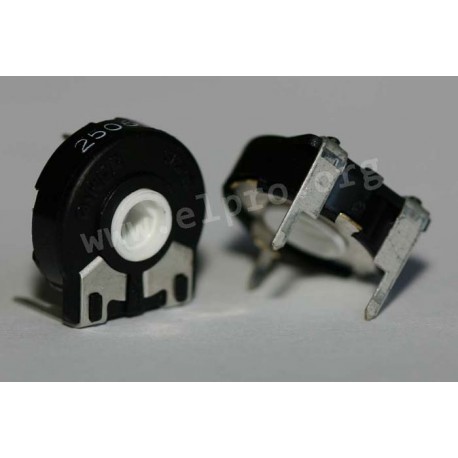

PT 15 LV 2,5 k

pitch 10/12.5mm

* horizonzal
* high quality polyester substrate
* sealed enclosure, dust and colophony proof, protected against harmful influences
* double wiper, dual support
* excellent stability, multipurpose applications as variable film potentiometer
* resistant against cleaning agents, ultrasonic cleaning possible
* taper: linear
* power rating (TU = 40°C): 0.25W
* operating voltage, max.: 250V DC
* temperature range: -25...+70°C
PT 15 LV 2,5 k

PT 15 LV 2,5 k

10481 PT 15 LV 2,5 k PT15NV02-252A2020-S PT15NV02-252A2020-S pitch 10/12.5mm. * horizonzal* high quality polyester substrate* sealed enclosure, dust and colophony proof, protected against harmful influences* double wiper, dual support* excellent stability, multipurpose applications as variable film potentiometer* resistant against cleaning agents, ultrasonic cleaning possible* taper: linear* power rating (TU = 40°C): 0.25W* operating voltage, max.: 250V DC* temperature range: -25...+70°C

Specifications

manufacturer
Manufacturer's name PT15NV02-252...
Resistance [Ω] 2,5k
Power, max. [W] 0,25
Data Sheet

Unit price

0,284 €

Stock: 3874
Further delivery:
CW 02/2025

Minimum order quantity 1 to 24 units or multiples of 25 plus 0 to 24 .
