PT 10 LV 5 M
* power rating: 0.15W
* shaft: arrow slot

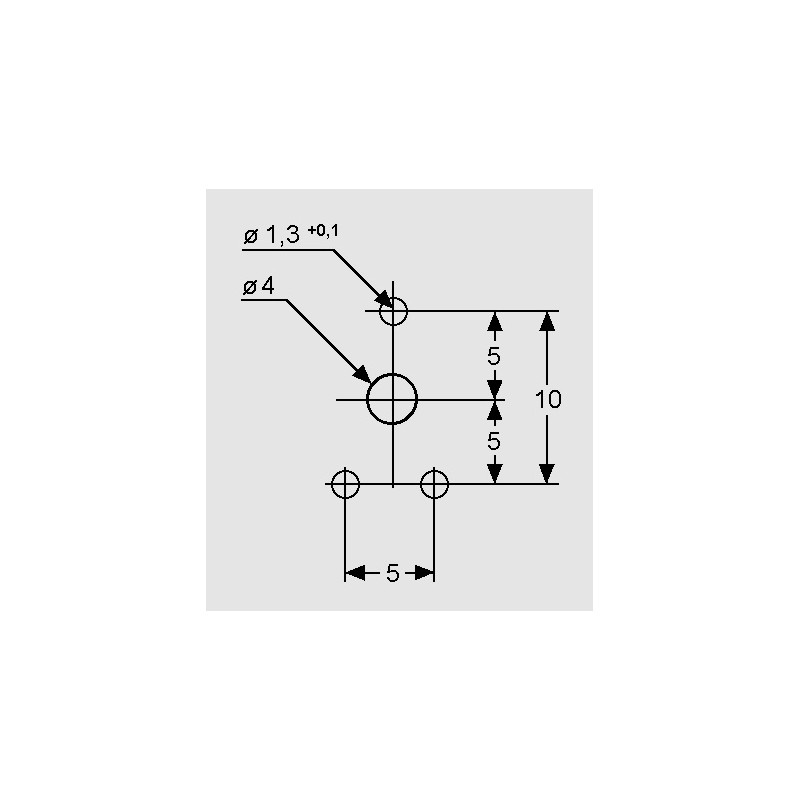

* pitch: 5/10mm
* housing: Ø10mm
* polyester substrate
* sealed enclosure, dust and colophony proof, protected against harmful influences
* double wiper, dual support
* excellent stability, multipurpose applications as variable film potentiometer
* wiper positioned at 50% or fully clockwise
* resistant against cleaning agents, ultrasonic cleaning possible
* taper: linear
* power rating (TU = 40°C): 0.15W
* operating voltage, max.: 200V DC
* resistance tolerance: =1MΩ: ±20%
* resistance tolerance: >1MΩ: ±30%
* temperature range: -25...+70°C
* rotation mechanical: 235 ±5°
* rotation electrical: 220 ±20°
* torque (3...5 U/s): 0.4...2Ncm
* stop torque: 5Ncm

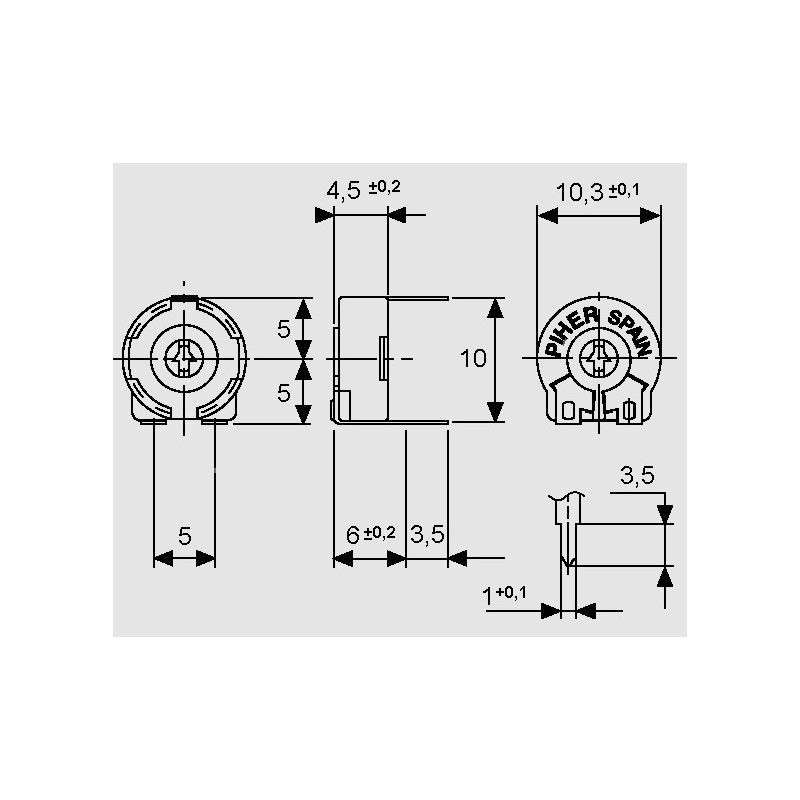

* diameter: 10.3mm
* depth: 4.5mm

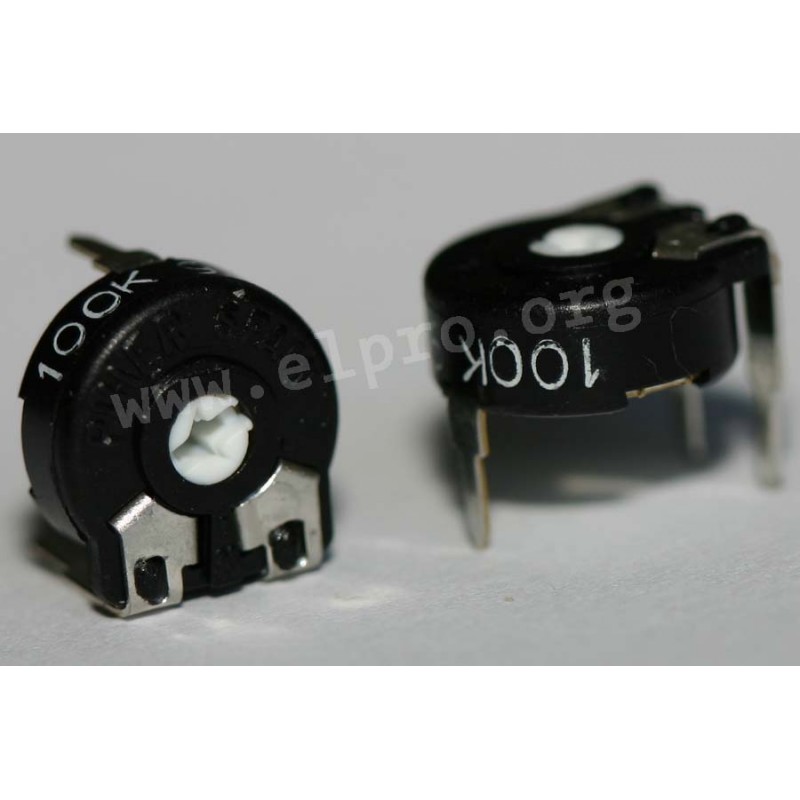

carbon trimmers PT10LV by Piher
* series PT10V, horizontal* power rating: 0.15W
* shaft: arrow slot
* pitch: 5/10mm
* housing: Ø10mm
* polyester substrate
* sealed enclosure, dust and colophony proof, protected against harmful influences
* double wiper, dual support
* excellent stability, multipurpose applications as variable film potentiometer
* wiper positioned at 50% or fully clockwise
* resistant against cleaning agents, ultrasonic cleaning possible
* taper: linear
* power rating (TU = 40°C): 0.15W
* operating voltage, max.: 200V DC
* resistance tolerance: =1MΩ: ±20%
* resistance tolerance: >1MΩ: ±30%
* temperature range: -25...+70°C
* rotation mechanical: 235 ±5°
* rotation electrical: 220 ±20°
* torque (3...5 U/s): 0.4...2Ncm
* stop torque: 5Ncm
* diameter: 10.3mm
* depth: 4.5mm
PT 10 LV 5 M
Specifications
| manufacturer | Piher |
| Manufacturer's name | PT10LV10-505... |
| Resistance [Ω] | 5M |
| Power, max. [W] | 0,15 |
