PT 10 LV 100 R
• power rating: 0.15W
• shaft: arrow slot

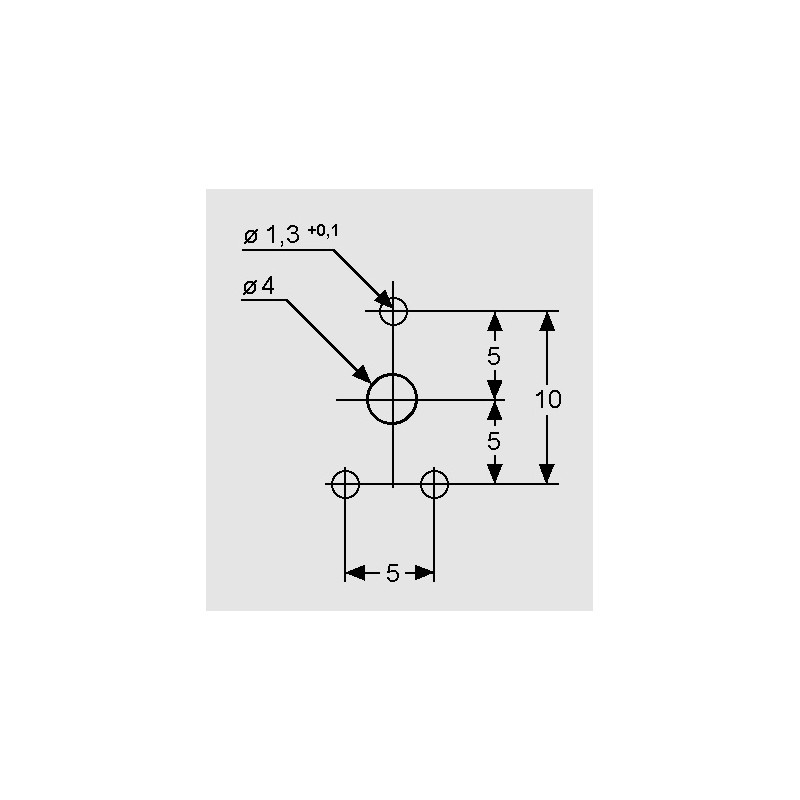

• pitch: 5/10mm
• housing: Ø10mm
• polyester substrate
• sealed enclosure, dust and colophony proof, protected against harmful influences
• double wiper, dual support
• excellent stability, multipurpose applications as variable film potentiometer
• wiper positioned at 50% or fully clockwise
• resistant against cleaning agents, ultrasonic cleaning possible
• taper: linear
• power rating (TU = 40°C): 0.15W
• operating voltage, max.: 200V DC
• resistance tolerance: =1MΩ: ±20%
• resistance tolerance: >1MΩ: ±30%
• temperature range: -25...+70°C
• rotation mechanical: 235 ±5°
• rotation electrical: 220 ±20°
• torque (3...5 U/s): 0.4...2Ncm
• stop torque: 5Ncm

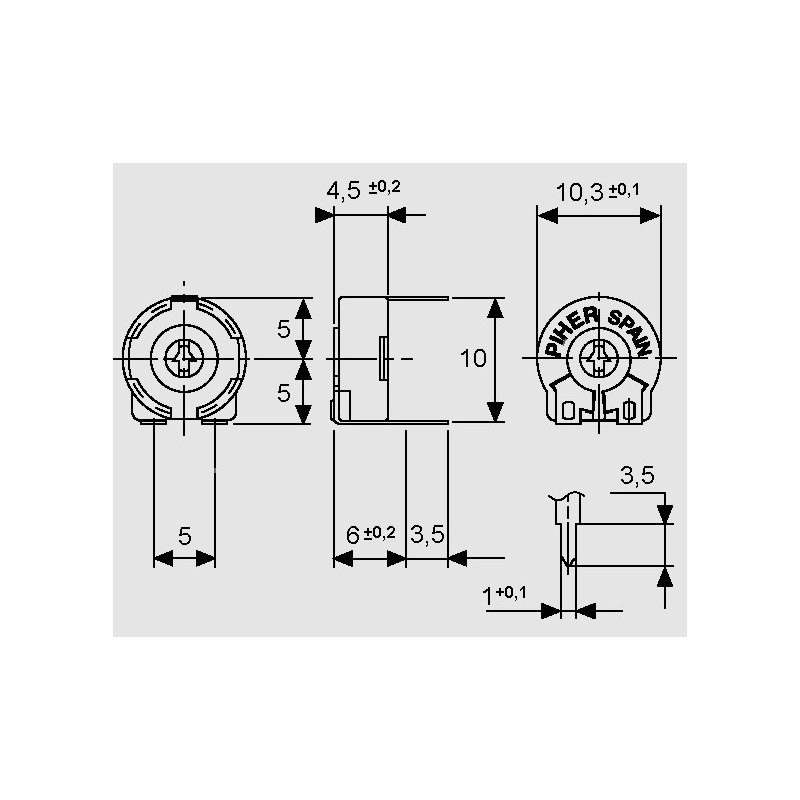

• diameter: 10.3mm
• depth: 4.5mm

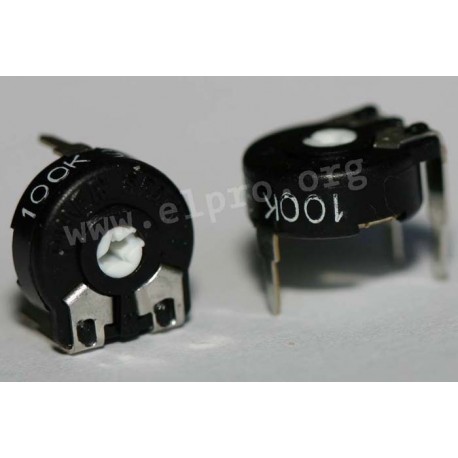

carbon trimmers PT10LV by Piher
• series PT10V, horizontal• power rating: 0.15W
• shaft: arrow slot
• pitch: 5/10mm
• housing: Ø10mm
• polyester substrate
• sealed enclosure, dust and colophony proof, protected against harmful influences
• double wiper, dual support
• excellent stability, multipurpose applications as variable film potentiometer
• wiper positioned at 50% or fully clockwise
• resistant against cleaning agents, ultrasonic cleaning possible
• taper: linear
• power rating (TU = 40°C): 0.15W
• operating voltage, max.: 200V DC
• resistance tolerance: =1MΩ: ±20%
• resistance tolerance: >1MΩ: ±30%
• temperature range: -25...+70°C
• rotation mechanical: 235 ±5°
• rotation electrical: 220 ±20°
• torque (3...5 U/s): 0.4...2Ncm
• stop torque: 5Ncm
• diameter: 10.3mm
• depth: 4.5mm
PT 10 LV 100 R
Specifications
| manufacturer | Piher |
| Manufacturer's name | PT10LV10-101... |
| Resistance [Ω] | 100 |
| Power, max. [W] | 0,15 |
