> Passive elements>Potentiometers>Rotary potentiometers>Piher rotary potentiometers, 6mm, mono, 0,25W, PC16SH series>PC-16 SH10IM06 2,2M A3030

Manufacturers

PC-16 SH10IM06 2,2M A3030

6mm, mono

• rated power (TU = 40°C): 0.25W
• operating voltage, max.: 250V DC
• resistance tolerance
100Ω...1MΩ: ±20%
>1MΩ: ±30%
• rotation
mechanical: 300° ±5°
electrical: 280° ±20°
• torque: 0.5...1.5Ncm
• stop torque: >40Ncm
• temperature range: -25...+70°C

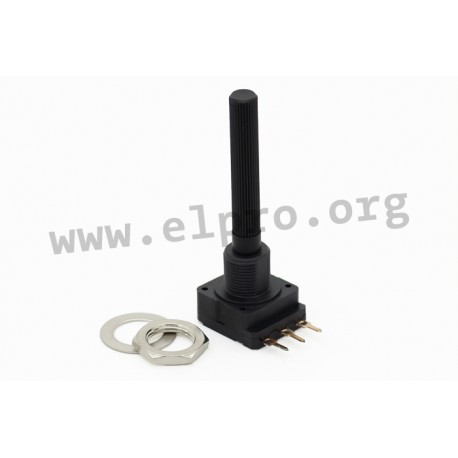

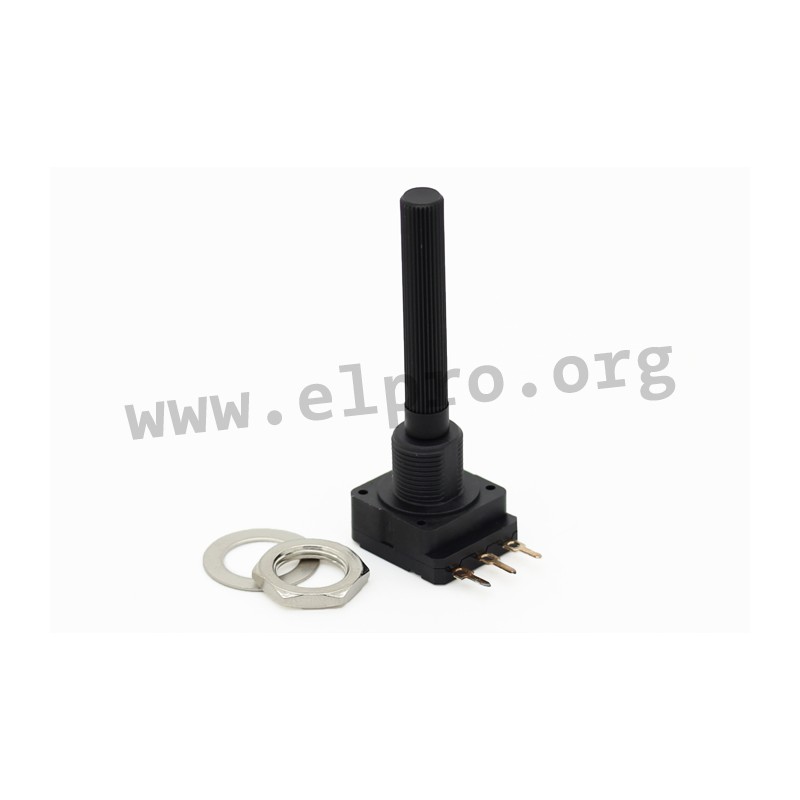

PC16SH10IP06255A2020TA, Piher rotary potentiometers, 6mm, mono, 0,25W, PC16SH series

PC-16 SH10IM06 2,2M A3030

33341 PC-16 SH10IM06 2,2M A3030 PC16SH-10IP06255A2020TA PC16SH-10IP06255A2020TA 6mm, mono. • rated power (TU = 40°C): 0.25W• operating voltage, max.: 250V DC• resistance tolerance100Ω...1MΩ: ±20%>1MΩ: ±30%• rotationmechanical: 300° ±5°electrical: 280° ±20°• torque: 0.5...1.5Ncm• stop torque: >40Ncm• temperature range: -25...+70°C

Specifications

manufacturer
Manufacturer's name PC16SH-10IP0...
Resistance [Ω] 2,2M
Power, max. [W] 0,25
Data Sheet

Unit price

1,08 €

Stock: 137
Further delivery:
CW 03/2025

Minimum order quantity 1 to 7 units or multiples of 10 plus 0 to 7 .
