PSAI05R-050QL6

Phihong USB switching power supplies series PSAI05R

USB universal switching power supplies for input plug adapters with 5W, isolation class II, and a low off-load power. These devices are protected against overload and short circuit, as well as they are equipped with input plug adapters for EU, US, UK, and Australia. We offer the PSAI05R-050QL6 type of this Phihong series.

  • power: 5W
  • input voltage range: 90 to 264V AC (47 to 63Hz)
  • maximal inrush power: 30A
  • average efficiency: 73,78%
  • output socket: USB-A
  • operating temperature: 0 to +50°C
  • weight: 120g

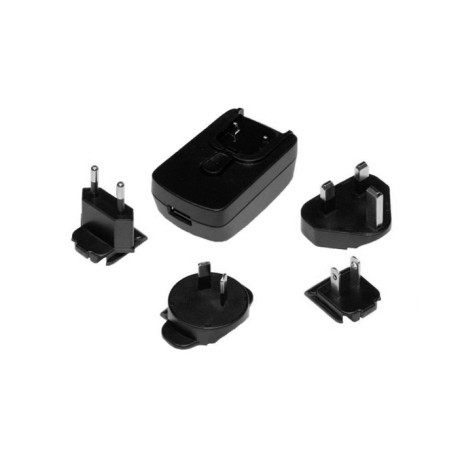

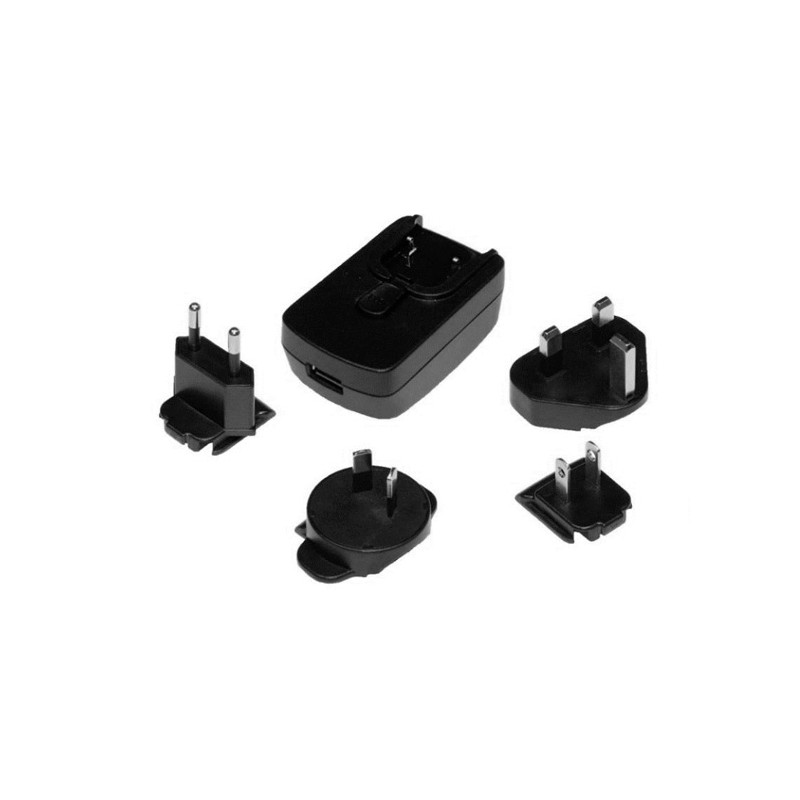

PSAI05R-050QL6, Phihong USB universal switching power supplies, 5W, for AC plug adapters, PSAI05R series

PSAI05R-050QL6

247576 PSAI05R-050QL6 PSAI05R-050QL6 Phihong USB switching power supplies series PSAI05R. USB universal switching power supplies for input plug adapters with 5W, isolation class II, and a low off-load power. These devices are protected against overload and short circuit, as well as they are equipped with input plug adapters for EU, US, UK, and Australia. We offer the PSAI05R-050QL6 type of this Phihong series. power: 5W input voltage range: 90 to 264V AC (47 to 63Hz) maximal inrush power: 30A average efficiency: 73,78% output socket: USB-A operating temperature: 0 to +50°C weight: 120g

Specifications

manufacturer
Manufacturer's name PSAI05R-050QL6
Output voltage [V] 5
Efficiency [%] DOE VI
Output current [A] 0...1
Output power [W] 5
Ripple [mVp-p] 200
Data Sheet

Unit price

6,59 €

Stock: 0
Further delivery:
CW 25/2025
