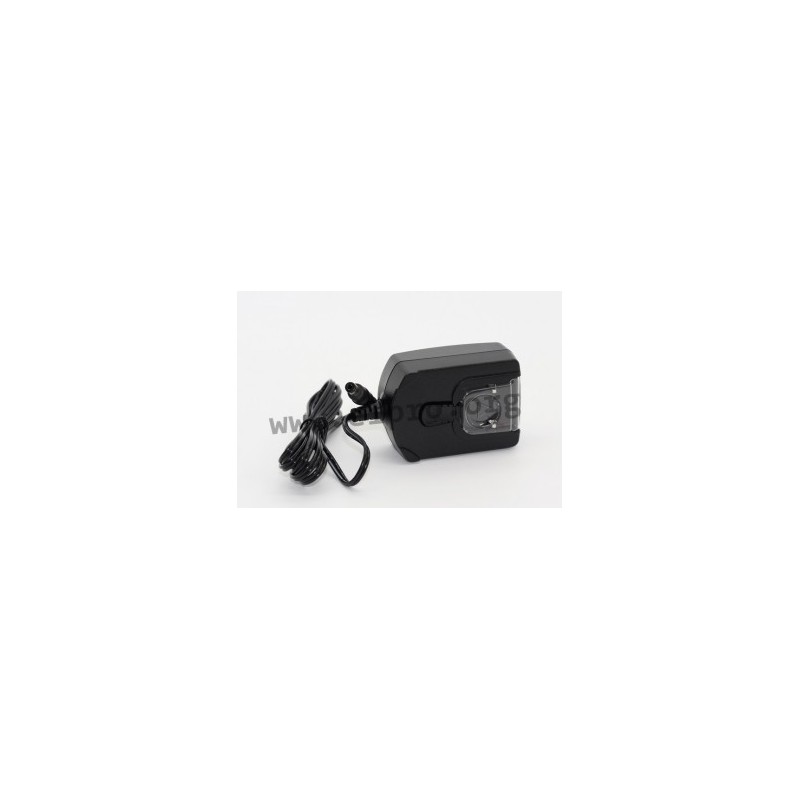

PSAC12R-120

Phihong plug-in power supply series PSAC12R

Plug-in switching power supplies fpr AC plug adapters with 12W, a universal input, insulation class II, a low no-load power and energy efficiency Level VI. These devices are protected against overload as well as short circuit and comply with EN55024, EN61000-3-2, EN60950-1 as well as EN61000-4-2. We offer the following types of this Phihong series: PSAC12R-050 and PSAC12R-120.

  • single output
  • output: 10 to 12W
  • input voltage: 90 to 264V AC (47 to 63Hz)
  • maximal input inrush current: 60A
  • cable length: 1,5m
  • output plug: 2,1x5,5mm
  • operating temperature: 0 to +40°C
  • weight: 151g

Matching input plugs

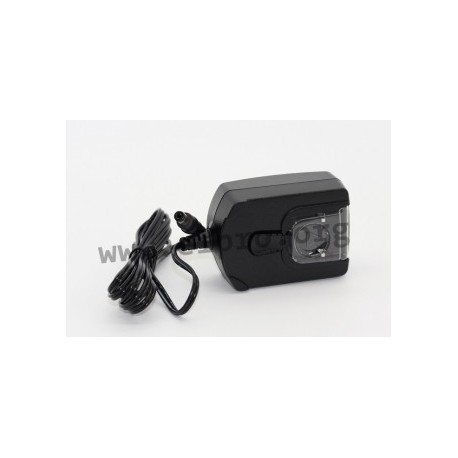

PSAC12R-120, Phihong plug-in switching power supplies, 12W, PSAC12R series

PSAC12R-120

107143 PSAC12R-120 PSAC12R-120 Phihong plug-in power supply series PSAC12R. Plug-in switching power supplies fpr AC plug adapters with 12W, a universal input, insulation class II, a low no-load power and energy efficiency Level VI. These devices are protected against overload as well as short circuit and comply with EN55024, EN61000-3-2, EN60950-1 as well as EN61000-4-2. We offer the following types of this Phihong series: PSAC12R-050 and PSAC12R-120. single output output: 10 to 12W input voltage: 90 to 264V AC (47 to 63Hz) maximal input inrush current: 60A cable length: 1,5m output plug: 2,1x5,5mm operating temperature: 0 to +40°C weight: 151g Matching input plugs

Specifications

manufacturer
Manufacturer's name PSAC12R-120
Output voltage [V] 12
Efficiency [%] DOE VI
Output current [A] 0...1
Output voltage tolerance: [%] 1
Output power [W] 12
Ripple [mVp-p] 120
Data Sheet

Unit price

9,49 €

Stock: 18
Further delivery:
CW 33/2025
