PSAA30R-120L6

Phihong plug-in power supplies series PSAA_

Plug-in power supplies for input plug adapters with 15 to 30W, universal input, isolation class II, and a low off-load power. These devices are protected against overload as well as short circuit, and they have an average efficiency of 83,08 to 88,20%. We offer the following types of this Phihong series: PSAA20R-050L6, PSAA30R-120L6, and PSAA30R-240L6.

  • single output
  • power: 15 to 30W
  • input voltage range: 90 to 264V AC (47 to 63Hz)
  • maximal inrush current: 100A
  • cable lenght: 1 to 1,5m
  • output plug: 2,1x5,5mm
  • operating temperature: 0 to +40°C
  • weight: 150 to 180g

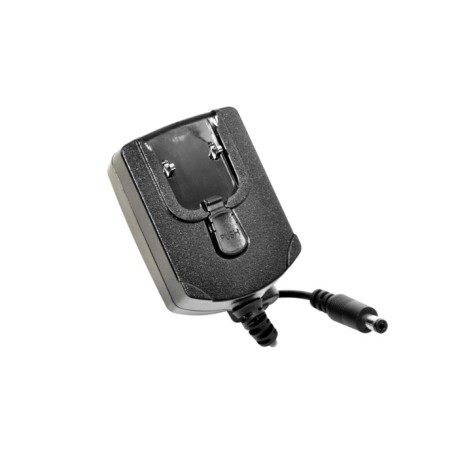

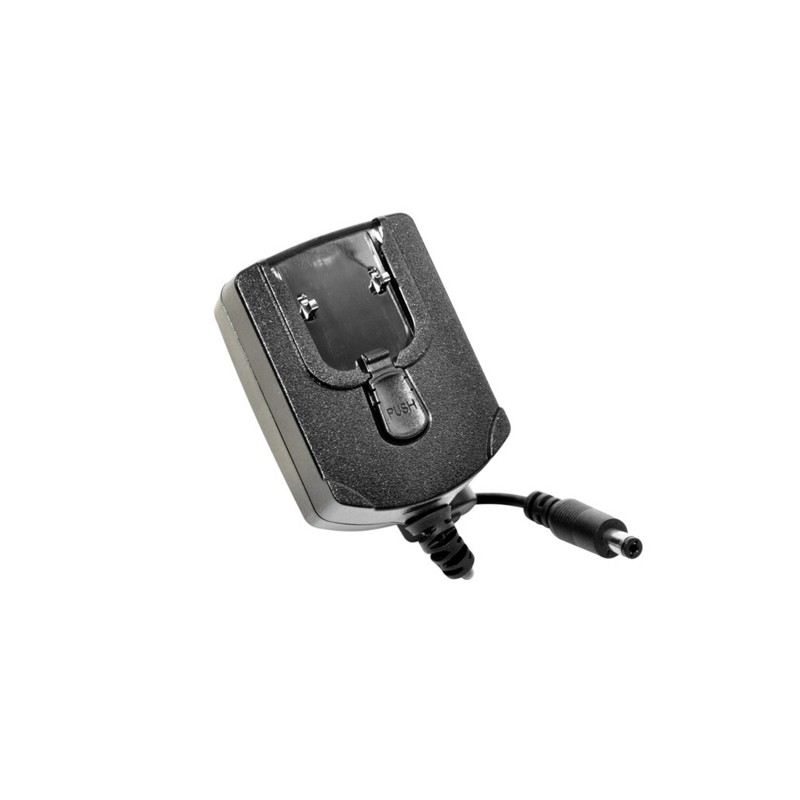

PSAA30R-120L6, Phihong universal plug-in power supplies, 15 to 30W, for AC plug adapters, PSAA_ series

PSAA30R-120L6

247573 PSAA30R-120L6 PSAA30R-120L6 Phihong plug-in power supplies series PSAA_. Plug-in power supplies for input plug adapters with 15 to 30W, universal input, isolation class II, and a low off-load power. These devices are protected against overload as well as short circuit, and they have an average efficiency of 83,08 to 88,20%. We offer the following types of this Phihong series: PSAA20R-050L6, PSAA30R-120L6, and PSAA30R-240L6. single output power: 15 to 30W input voltage range: 90 to 264V AC (47 to 63Hz) maximal inrush current: 100A cable lenght: 1 to 1,5m output plug: 2,1x5,5mm operating temperature: 0 to +40°C weight: 150 to 180g

Specifications

manufacturer
Manufacturer's name PSAA30R-120L6
Output voltage [V] 12
Efficiency [%] DOE VI
Output current [A] 0...2,5
Output power [W] 30
Ripple [mVp-p] 240
Data Sheet

Unit price

14,29 €

Stock: 0
Further delivery:
CW 33/2025
