PSA15R-120-P6

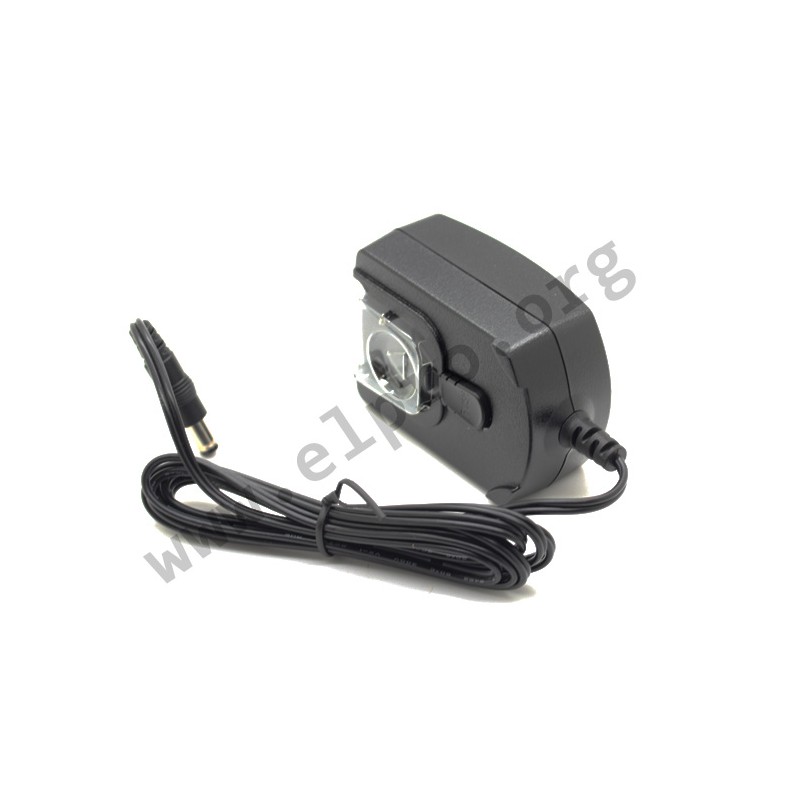

Phihong plug-in power supply series PSA15R

Plug-in switching power supplies for AC plug adapters (must be ordered separately) with 15W, insulation class II, energy efficiency Level VI, a universal input and a low no-load power. These devices are protected against overload as well as short circuit and comply with EN60950-1, EN55024 as well as EN61000-3-2. We offer the following types of this Phihong series: PSA15R-120-P6 and PSA15R-240-P6.

  • single output
  • output: 15W
  • input voltage: 90 to 264V AC (47 to 63Hz)
  • maximal input inrush current: 60A
  • no-load power: <0,1W
  • output plug: 2,1x5,5mm
  • cable length: 1,85m
  • operating temperature: 0 to +40°C
  • weight: 145g

Matching input plugs

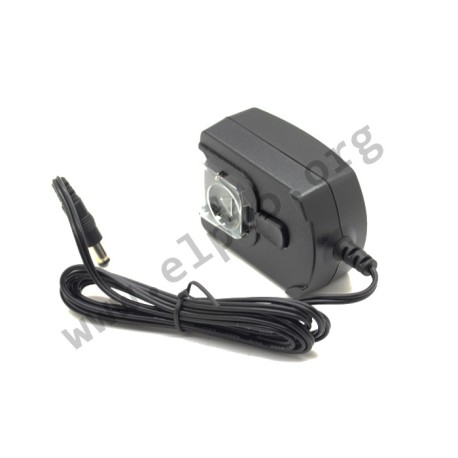

PSA15R-120P6, Phihong plug-in switching power supplies, 15W, PSA15R series

PSA15R-120-P6

107134 PSA15R-120-P6 PSA15R-120P6 PSA15R-120P6 Phihong plug-in power supply series PSA15R. Plug-in switching power supplies for AC plug adapters (must be ordered separately) with 15W, insulation class II, energy efficiency Level VI, a universal input and a low no-load power. These devices are protected against overload as well as short circuit and comply with&nbsp;EN60950-1, EN55024 as well as EN61000-3-2. We offer the following types of this&nbsp;Phihong series:&nbsp;PSA15R-120-P6 and PSA15R-240-P6. single output output: 15W input voltage: 90 to 264V AC (47 to 63Hz) maximal input inrush current: 60A no-load power: &lt;0,1W output plug: 2,1x5,5mm cable length: 1,85m operating temperature: 0 to +40&deg;C weight: 145g Matching input plugs

Specifications

manufacturer
Manufacturer's name PSA15R-120P6
Output voltage [V] 12
Efficiency [%] DOE VI
Output current [A] 0...1,25
Output voltage tolerance: [%] 1
Output power [W] 15
Ripple [mVp-p] 100
Data Sheet

Unit price

9,99 €

Stock: 22
Further delivery:
CW 29/2025
