PPL90U-240

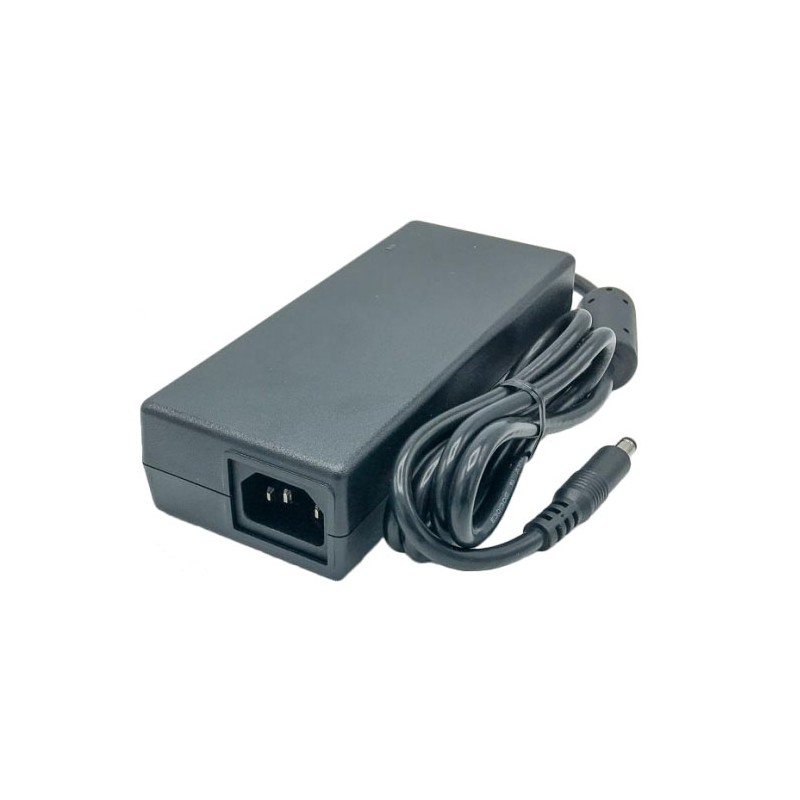

Phihong external power supply series PPL90U

External switching power supplies in a non-spillable housing with 90W, protection class I and a universal input. These devices are protected against overcurrent, overvoltage as well as short circuit and comply with energy efficiency Level (EU) 2019/1782 + Level VI. We offer the following types of this Phihong series: PPL90U-120 and PPL90U-240.

  • single output
  • output: 84 to 90W
  • input voltage: 90 to 264V AC (47 to 63Hz)
  • maximal input inrush current: 80A
  • input plug: IEC-320 C14
  • output plug: 5,5x2,1mm coaxial connector
  • operating temperature: 0 to +40°C
  • dimensions: 151x64x36mm
  • weight: 580g

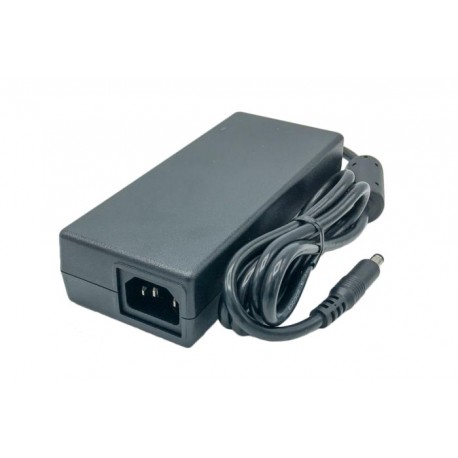

PPL90U-240, Phihong external switching power supplies, 90W, PPL90U series

PPL90U-240

241521 PPL90U-240 PPL90U-240 Phihong external power supply series PPL90U. External switching power supplies in a non-spillable housing with 90W, protection class I and a universal input. These devices are protected against overcurrent, overvoltage as well as short circuit and comply with energy efficiency Level (EU) 2019/1782 + Level VI. We offer the following types of this Phihong series: PPL90U-120 and PPL90U-240. single output output: 84 to 90W input voltage: 90 to 264V AC (47 to 63Hz) maximal input inrush current: 80A input plug: IEC-320 C14 output plug: 5,5x2,1mm coaxial connector operating temperature: 0 to +40°C dimensions: 151x64x36mm weight: 580g

Specifications

manufacturer
Manufacturer's name PPL90U-240
Output voltage [V] 24
Efficiency [%] 90,2
Output current range [A] 0...3,75
Output voltage tolerance: [%] 5
Output power [W] 90
Ripple [mVp-p] 240
Data Sheet

Unit price

42,59 €

Stock: 10
Further delivery:
CW 33/2025
