PPL36W-120L6

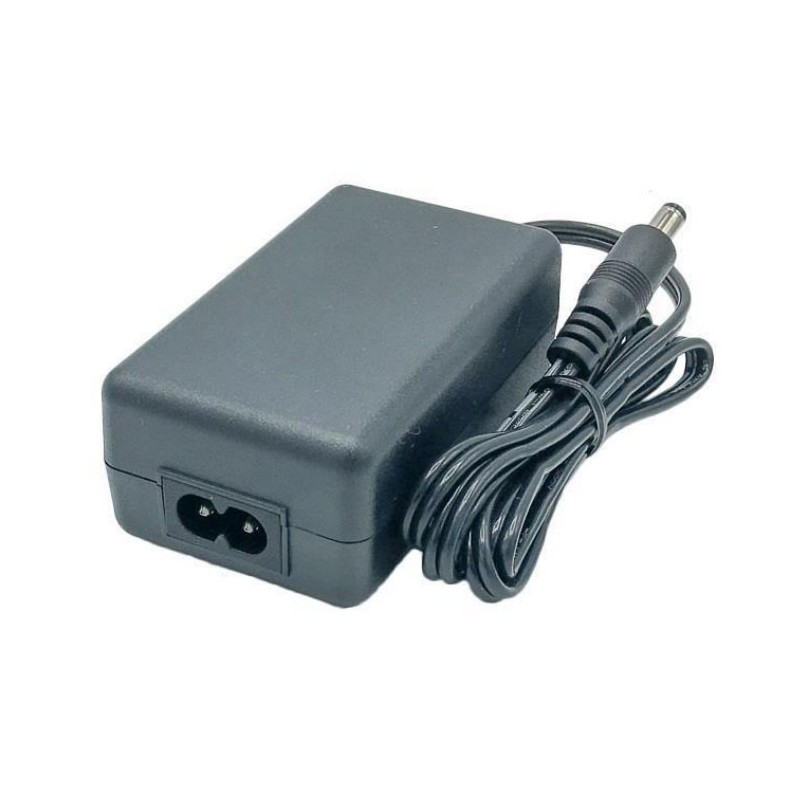

Phihong external power supply series PPL36W

External switching power supplies in a compact housing with 36W, a universal input and protection class II. These devices are protected against overcurrent, overvoltage as well as short circuit and comply with energy efficiency Level (EU) 2019/1782 + Level VI. We offer the following types of this Phihong series: PPL36W-050, PPL36W-120L6 and PPL36W-240.

  • single output
  • output: 25 to 36W
  • input voltage: 90 to 264V AC (47 to 63Hz)
  • maximal input inrush current: 70A
  • input plug: IEC-320 C8
  • output plug: 5,5x2,1mm coaxial connector
  • operating temperature: 0 to +40°C
  • dimensions: 99x50x33mm
  • weight: 170g

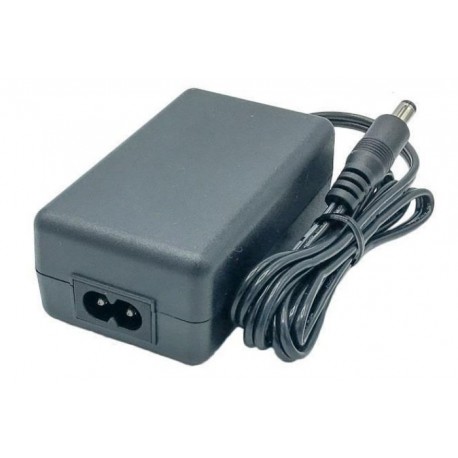

PPL36W-120L6, Phihong external switching power supplies, 36W, PPL36W series

PPL36W-120L6

241512 PPL36W-120L6 PPL36W-120L6 Phihong external power supply series PPL36W. External switching power supplies in a compact housing with 36W, a universal input and protection class II. These devices are protected against overcurrent, overvoltage as well as short circuit and comply with energy efficiency Level (EU) 2019/1782 + Level VI. We offer the following types of this Phihong series: PPL36W-050, PPL36W-120L6 and PPL36W-240. single output output: 25 to 36W input voltage: 90 to 264V AC (47 to 63Hz) maximal input inrush current: 70A input plug: IEC-320 C8 output plug: 5,5x2,1mm coaxial connector operating temperature: 0 to +40°C dimensions: 99x50x33mm weight: 170g

Specifications

manufacturer
Manufacturer's name PPL36W-120L6
Output voltage [V] 12
Efficiency [%] 87,9
Output current range [A] 0...3
Output voltage tolerance: [%] 5
Output power [W] 36
Ripple [mVp-p] 120
Data Sheet

Unit price

17,49 €

Stock: 10
Further delivery:
CW 29/2025
