PPL300U-480

Phihong desktop power supplies series PPL300U

External switching power supplies with 300W, a universal input, and protection class I. These devices conform with energy level (EU) 2019/1782 + level VI, as well as they are protected against over voltage, overload, and short circuit. We offer the following types of this Phihong series: PPL300U-120, PPL300U-240, and PPL300U-480.

  • power: 300W
  • input voltage range: 90 to 264V AC (47 to 63Hz)
  • maximal inrush current: 150A
  • cable length: 120cm / 100cm (PPL300U-120)
  • input plug: IEC-320 C14
  • output plug: plug terminal6-pole
  • operating temperature: 0 to +40°C
  • dimensions: 254x116x47mm
  • weight: 1600g

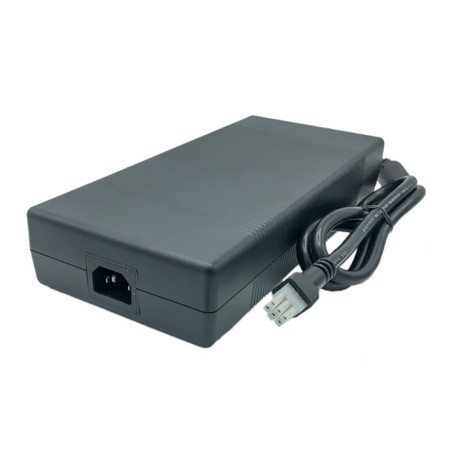

PPL300U-480, Phihong desktop power supplies, 300W, PPL300U series

PPL300U-480

247587 PPL300U-480 PPL300U-480 Phihong desktop power supplies series PPL300U. External switching power supplies with 300W, a universal input, and protection class I. These devices conform with energy level (EU) 2019/1782 + level VI, as well as they are protected against over voltage, overload, and short circuit. We offer the following types of this Phihong series: PPL300U-120, PPL300U-240, and PPL300U-480. power: 300W input voltage range: 90 to 264V AC (47 to 63Hz) maximal inrush current: 150A cable length: 120cm / 100cm (PPL300U-120) input plug: IEC-320 C14 output plug: plug terminal6-pole operating temperature: 0 to +40°C dimensions: 254x116x47mm weight: 1600g

Specifications

manufacturer
Manufacturer's name PPL300U-480
Output voltage [V] 48
Output current [A] 0...6,25
Output voltage tolerance: [%] 5
Output power [W] 300
Ripple [mVp-p] 960
Data Sheet

Unit price

156,49 €

Stock: 0
Further delivery:
CW 25/2025
