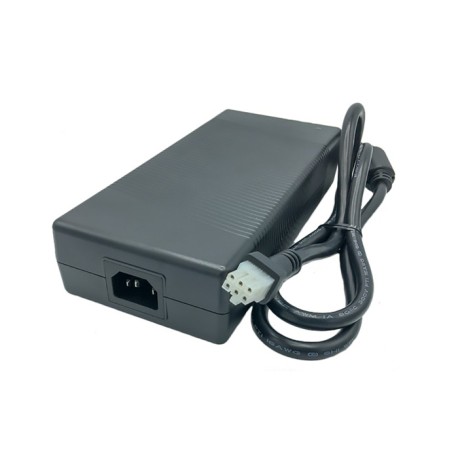

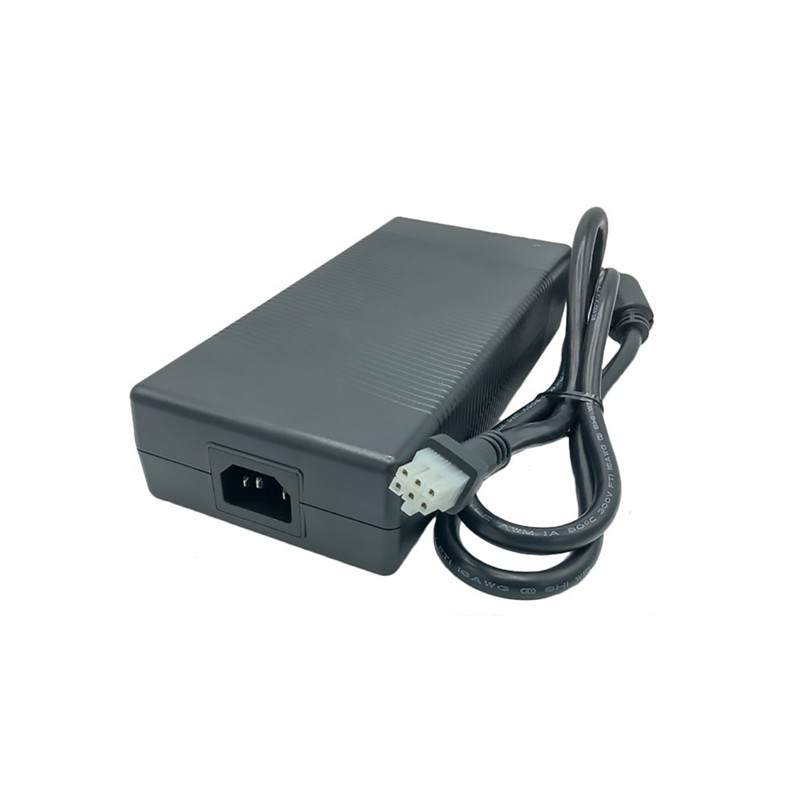

PPL250U-240L6

Phihong desktop power supplies series PPL250U

External switching power supplies with 250W, a universal input, and protection class I. These devices conform with energy level (EU) 2019/1782 + level VI, as well as they are protected against over voltage, overload, and short circuit. We offer the following types of this Phihong series: PPL250U-120L6 and PPL200U-240L6.

  • power: 250W
  • input voltage range: 90 to 264V AC (47 to 63Hz)
  • maximal inrush current: 120A
  • cable length: 120cm
  • input plug: IEC-320 C14
  • output plug: plug terminal 6-pole
  • operating temperature: 0 to +40°C
  • dimensions: 204x94x43,5mm
  • weight: 1040g
PPL250U-240L6, Phihong desktop power supplies, 250W, PPL250U series

PPL250U-240L6

247584 PPL250U-240L6 PPL250U-240L6 Phihong desktop power supplies series PPL250U. External switching power supplies with 250W, a universal input, and protection class I. These devices conform with energy level (EU) 2019/1782 + level VI, as well as they are protected against over voltage, overload, and short circuit. We offer the following types of this Phihong series: PPL250U-120L6 and PPL200U-240L6. power: 250W input voltage range: 90 to 264V AC (47 to 63Hz) maximal inrush current: 120A cable length: 120cm input plug: IEC-320 C14 output plug: plug terminal 6-pole operating temperature: 0 to +40°C dimensions: 204x94x43,5mm weight: 1040g

Specifications

manufacturer
Manufacturer's name PPL250U-240L6
Output voltage [V] 24
Output current [A] 0...10,4
Output voltage tolerance: [%] 5
Output power [W] 249,6
Ripple [mVp-p] 240
Data Sheet

Unit price

120,49 €

Stock: 0
Further delivery:
CW 33/2025
