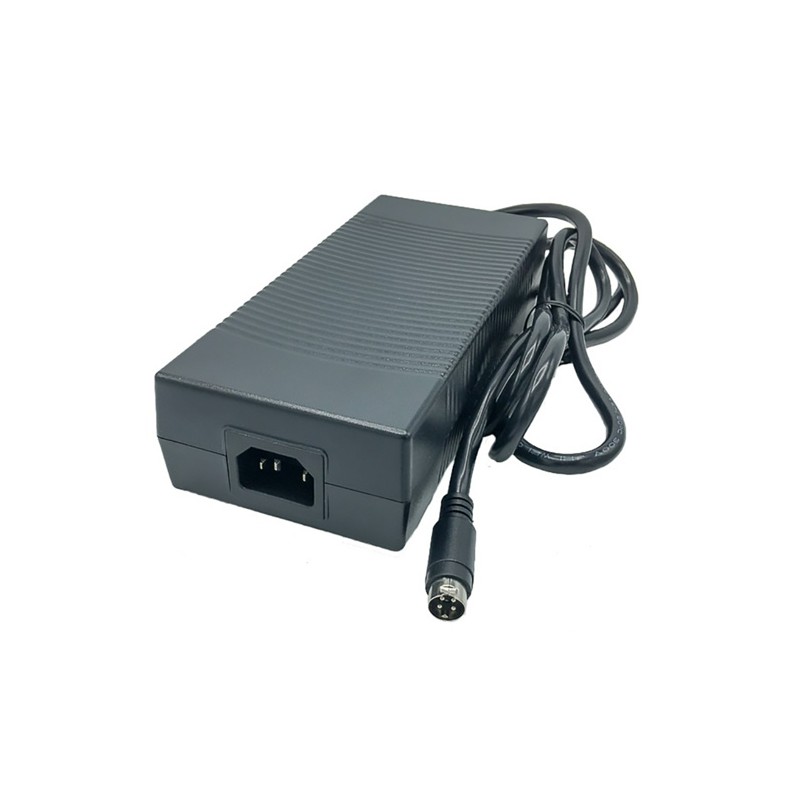

PPL200U-240

Phihong desktop power supplies series PPL200U

External switching power supplies with 200W, a universal input, and protection class I. These devices conform with energy level (EU) 2019/1782 + level VI, as well as they are protected against over voltage, overload, and short circuit. We offer the following types of this Phihong series: PPL200U-120, PPL200U-240, and PPL200U-480.

  • power: 200W
  • input voltage range: 90 to 264V AC (47 to 63Hz)
  • maximal inrush current: 100A
  • cable length: 150cm / 120cm (PPL200U-120)
  • input plug: IEC-320 C14
  • output plug: DIN-4 pole
  • operating temperature: 0 to +40°C
  • dimensions: 183,2x81x42,3mm
  • weight: 820g

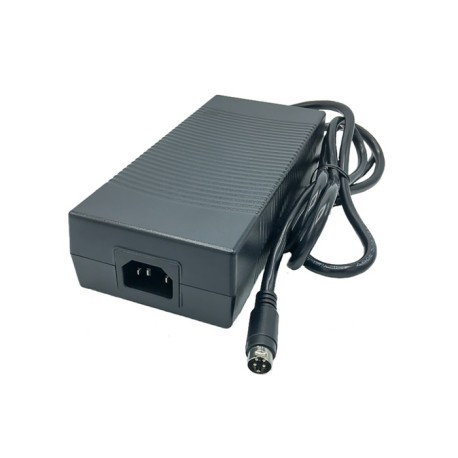

PPL200U-240, Phihong desktop power supplies, 200W, PPL200U series

PPL200U-240

247581 PPL200U-240 PPL200U-240 Phihong desktop power supplies series PPL200U. External switching power supplies with 200W, a universal input, and protection class I. These devices conform with energy level (EU) 2019/1782 + level VI, as well as they are protected against over voltage, overload, and short circuit. We offer the following types of this Phihong series: PPL200U-120, PPL200U-240, and PPL200U-480. power: 200W input voltage range: 90 to 264V AC (47 to 63Hz) maximal inrush current: 100A cable length: 150cm / 120cm (PPL200U-120) input plug: IEC-320 C14 output plug: DIN-4 pole operating temperature: 0 to +40°C dimensions: 183,2x81x42,3mm weight: 820g

Specifications

manufacturer
Manufacturer's name PPL200U-240
Output voltage [V] 24
Output current [A] 0...8,3
Output voltage tolerance: [%] 5
Output power [W] 199,2
Ripple [mVp-p] 240
Data Sheet

Unit price

152,69 €

Stock: 0
Further delivery:
CW 29/2025
