PPL18W-120

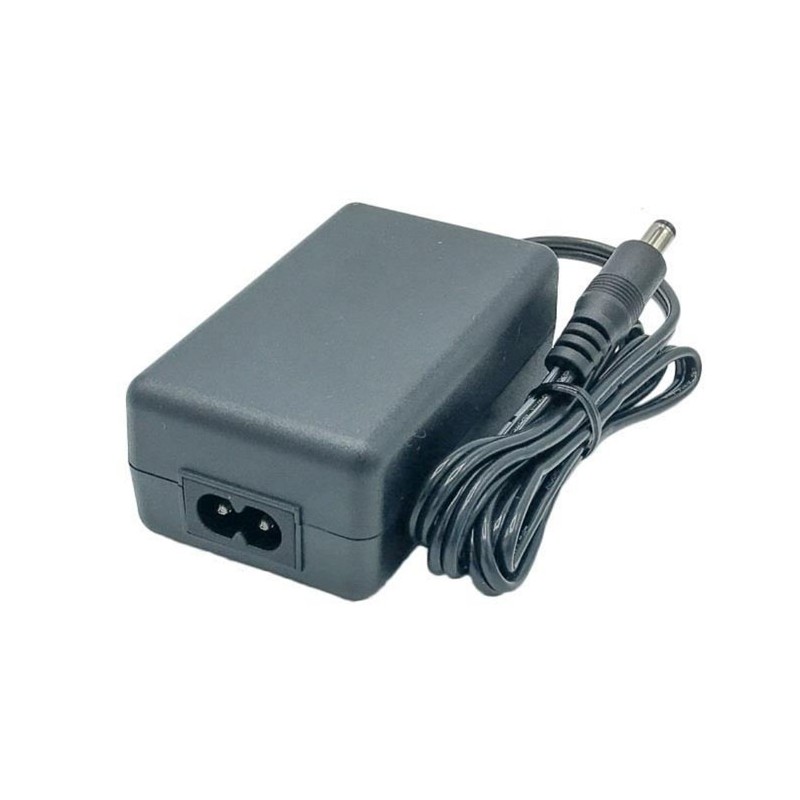

Phihong external power supply series PPL18W

External switching power supplies in a compact housing with 18W, protection class II and a universal input. These devices are protected against overcurrent, overvoltage as well as short circuit and comply with energy efficiency Level (EU) 2019/1782 + Level VI. We offer the following types of this Phihong series: PPL18W-050L6, PPL18W-120 and PPL18W-240.

  • single output
  • output: 15 to 19,2W
  • input voltage: 90 to 264V AC (47 to 63Hz)
  • maximal input inrush current: 60A
  • cable length: 150cm
  • input plug: 5,5x2,1mm coaxial connector
  • operating temperature: 0 to +40°C
  • dimensions: 100x50x33mm
  • weight: 170g

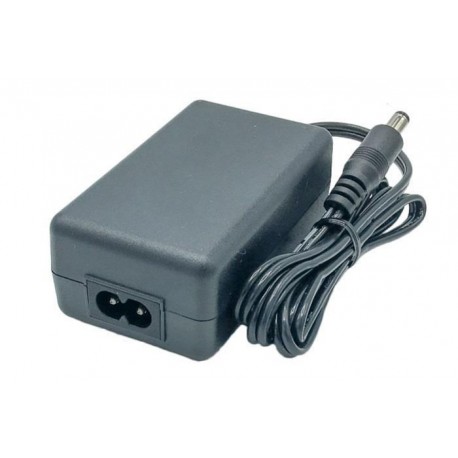

PPL18W-120, Phihong external switching power supplies, 18W, PPL18W series

PPL18W-120

241506 PPL18W-120 PPL18W-120 Phihong external power supply series PPL18W. External switching power supplies in a compact housing with 18W, protection class II and a universal input. These devices are protected against overcurrent, overvoltage as well as short circuit and comply with energy efficiency Level (EU) 2019/1782 + Level VI. We offer the following types of this Phihong series: PPL18W-050L6, PPL18W-120 and PPL18W-240. single output output: 15 to 19,2W input voltage: 90 to 264V AC (47 to 63Hz) maximal input inrush current: 60A cable length: 150cm input plug: 5,5x2,1mm coaxial connector operating temperature: 0 to +40°C dimensions: 100x50x33mm weight: 170g

Specifications

manufacturer
Manufacturer's name PPL18W-120
Output voltage [V] 12
Efficiency [%] 86,4
Output current range [A] 0...1,6
Output voltage tolerance: [%] 5
Output power [W] 19,2
Ripple [mVp-p] 120
Data Sheet

Unit price

14,09 €

Stock: 10
Further delivery:
CW 29/2025
