PPL18U-120

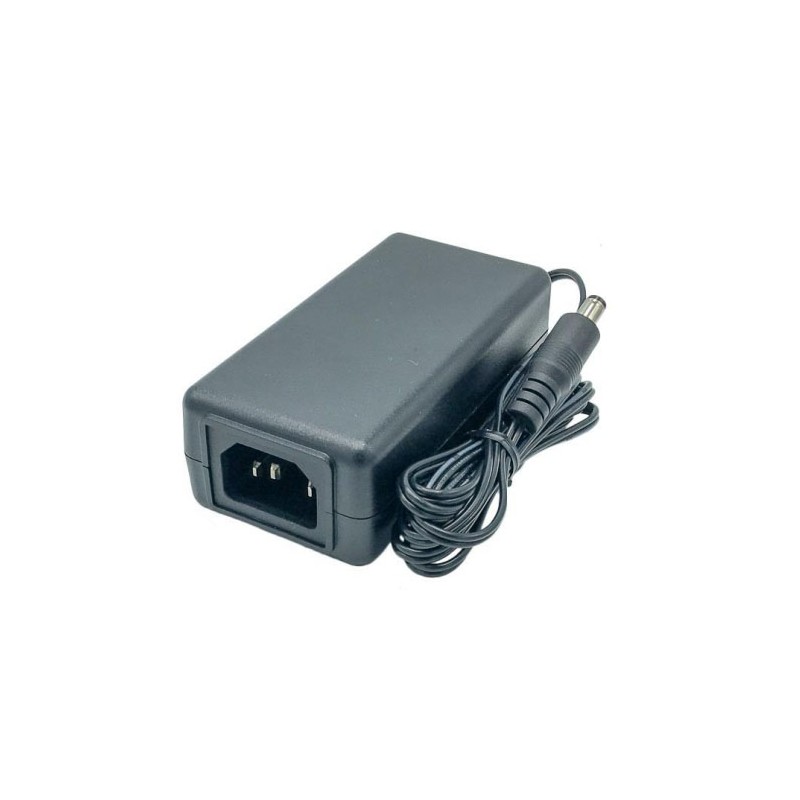

Phihong external power supply series PPL18U

External switching power supplies in a compact housing with 18W, a universal input and protection class I. These devices comply with energy efficiency Level (EU) 2019/1782 + Level VI and are protected against overvoltage, overcurrent as well as short circuit. We offer the following types of this Phihong series: PPL18U-050L6, PPL18U-120 and PPL18U-240.

  • single output
  • output: 15 to 19,2W
  • input voltage: 90 to 264V AC (47 to 63Hz)
  • maximal input inrush current: 60A
  • cable length: 150cm
  • input plug: IEC-320 C14
  • output plug: 5,5x2,1mm coaxial connector
  • operating temperature: 0 to +40°C
  • dimensions: 100x50x33mm
  • weight: 170g

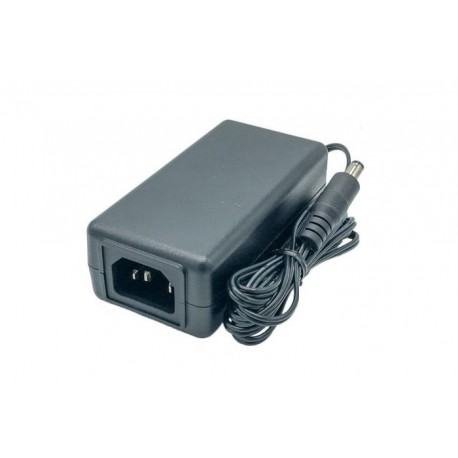

PPL18U-120, Phihong external switching power supplies, 18W, PPL18U series

PPL18U-120

241503 PPL18U-120 PPL18U-120 Phihong external power supply series PPL18U. External switching power supplies in a compact housing with 18W, a universal input and protection class I. These devices comply with energy efficiency Level (EU) 2019/1782 + Level VI and are protected against overvoltage, overcurrent as well as short circuit. We offer the following types of this Phihong series: PPL18U-050L6, PPL18U-120 and PPL18U-240. single output output: 15 to 19,2W input voltage: 90 to 264V AC (47 to 63Hz) maximal input inrush current: 60A cable length: 150cm input plug: IEC-320 C14 output plug: 5,5x2,1mm coaxial connector operating temperature: 0 to +40°C dimensions: 100x50x33mm weight: 170g

Specifications

manufacturer
Manufacturer's name PPL18U-120
Output voltage [V] 12
Output current range [A] 0...1,6
Output voltage tolerance: [%] 5
Output power [W] 19,2
Ripple [mVp-p] 120
Data Sheet

Unit price

14,09 €

Stock: 20
Further delivery:
CW 33/2025
