PPL160U-480

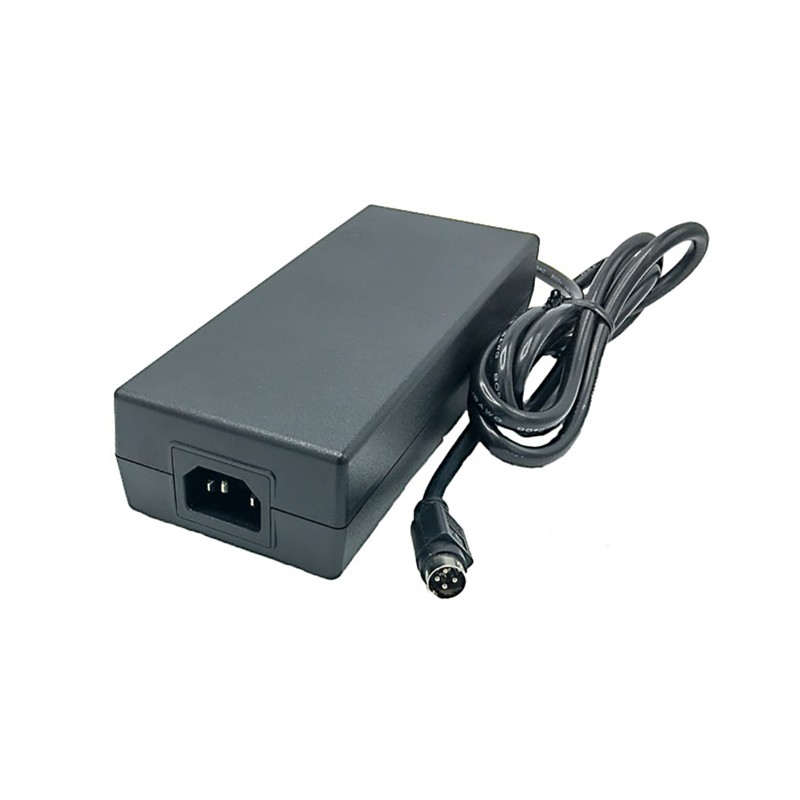

Phihong desktop power supplies PPL160U

External switching power supplies with 160W, a universal input, and protection class I. These devices conform with the energy level (EU) 2019/1782 + level VI, as well as they are protected against over voltage, overload, and short circuit. We offer the following types of this Phihong series: PPL160U-120, PPL160U-240, and PPL160U-480.

  • power: 160W
  • input voltage range: 90 to 264V AC (47 to 63Hz)
  • maximal inrush current: 140A
  • cable lenght: 150cm / 120cm (PPL160U-120)
  • input plug: IEC-320 C14
  • output plug: DIN-4 pole
  • operating temperature: 0 to +40°C
  • dimensions: 175x74x42mm
  • weight: 700g

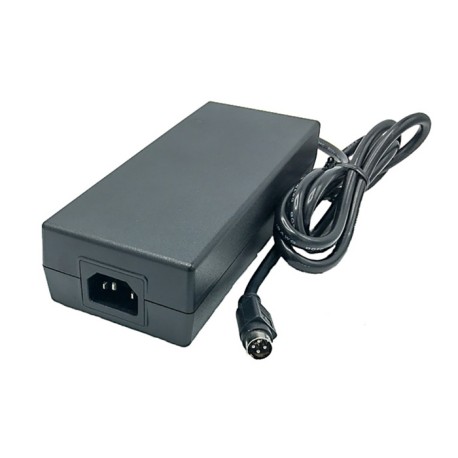

PPL160U-480, Phihong desktop power supplies, 160W, PPL160U series

PPL160U-480

247579 PPL160U-480 PPL160U-480 Phihong desktop power supplies PPL160U. External switching power supplies with 160W, a universal input, and protection class I. These devices conform with the energy level (EU) 2019/1782 + level VI, as well as they are protected against over voltage, overload, and short circuit. We offer the following types of this Phihong series: PPL160U-120, PPL160U-240, and PPL160U-480. power: 160W input voltage range: 90 to 264V AC (47 to 63Hz) maximal inrush current: 140A cable lenght: 150cm / 120cm (PPL160U-120) input plug: IEC-320 C14 output plug: DIN-4 pole operating temperature: 0 to +40°C dimensions: 175x74x42mm weight: 700g

Specifications

manufacturer
Manufacturer's name PPL160U-480
Output voltage [V] 48
Output current [A] 0...3,3
Output voltage tolerance: [%] 5
Output power [W] 158,4
Ripple [mVp-p] 480
Data Sheet

Unit price

121,89 €

Stock: 0
Further delivery:
CW 29/2025
