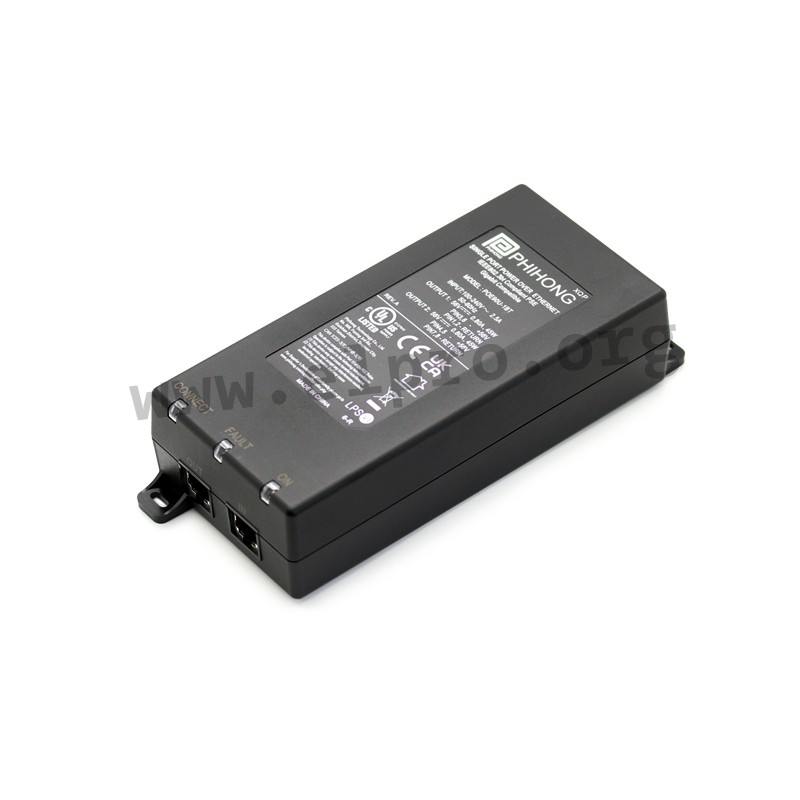

POE90U-1BT6

Phihong desktop power supply series POE90U

PoE injectors with 90W, a single port, protection class I and a universal input. These desktop switching power supplies are suitable for power supply through data lines and are protected against overload, overvoltage as well as short circuit. They have an LED status display and comply with IEC60950-1, IEC62368-1, UL60950-1, UL62368-1, EN55032 class B as well as IEEE802.3bt (Hi-PoE). We offer the type POE90U-1BT6 of this Phihong series.

  • single output
  • output: 90W
  • input voltage: 90 to 264V AC (47 to 63Hz)
  • maximal input inrush current: 75A
  • input current: 1,2A
  • leakage current: 3,5mA
  • data rate: 1Gb
  • withstand voltage I/P-O/P: 4242V DC
  • withstand voltage I/P-FG: 2121V DC
  • input plug: C14
  • output plug: RJ45
  • dimensions: 178x80,5x43,6mm
  • weight: 500g

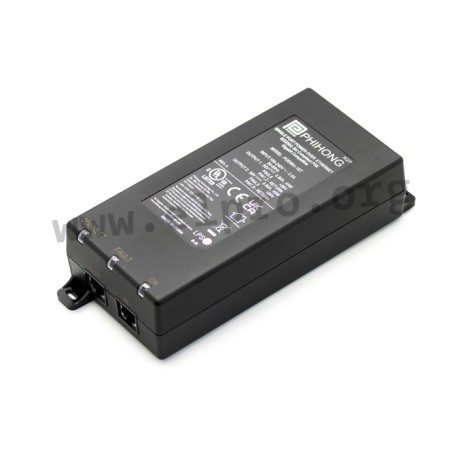

POE90U-1BT6, Phihong PoE desktop switching power supplies, 90W, POE90U series

POE90U-1BT6

236113 POE90U-1BT6 POE90U-1BT6 Phihong desktop power supply series POE90U. PoE injectors with 90W, a single port, protection class I and a universal input. These desktop switching power supplies are suitable for power supply through data lines and are protected against overload, overvoltage as well as short circuit. They have an LED status display and comply with IEC60950-1, IEC62368-1, UL60950-1, UL62368-1, EN55032 class B as well as IEEE802.3bt (Hi-PoE). We offer the type POE90U-1BT6 of this Phihong series. single output output: 90W input voltage: 90 to 264V AC (47 to 63Hz) maximal input inrush current: 75A input current: 1,2A leakage current: 3,5mA data rate: 1Gb withstand voltage I/P-O/P: 4242V DC withstand voltage I/P-FG: 2121V DC input plug: C14 output plug: RJ45 dimensions: 178x80,5x43,6mm weight: 500g

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name POE90U-1BT6
Output voltage [V] 56
Output current [A] 1,06
Output power [W] 90
Ripple [mVp-p] 250
Data Sheet

Unit price

68,99 €

Stock: 9
