POE60U-1BTE

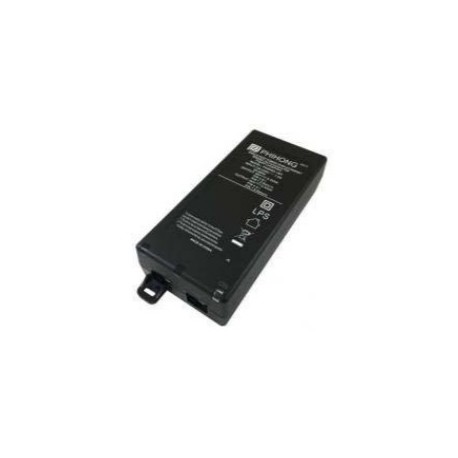

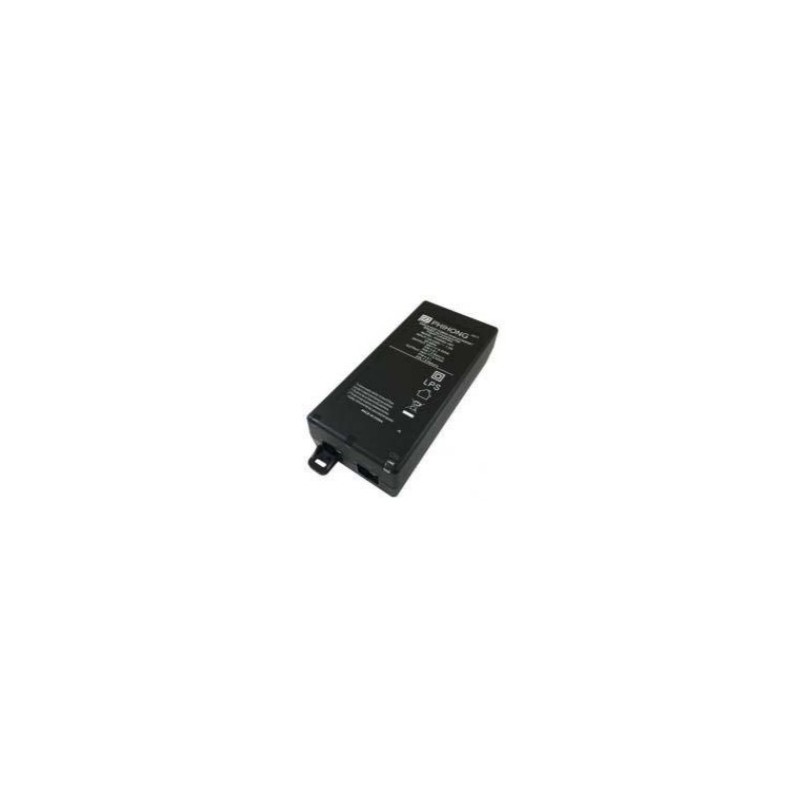

Phihong desktop power supply series POE60U

PoE injectors with 60W, a universal input, protection class I and a single port. These desktop switching power supplies are able to supply devices with voltage through the data line and are protected against overload, short circuit as well as overvoltage. They have an LED status display and comply with IEC60950-1, IEC62368-1, UL60950-1, UL62368-1, EN55032 class B as well as IEEE802.3bt (Hi-PoE). We offer the type POE60U-1BTE of this Phihong series.

  • single output
  • output: 60W
  • input voltage: 90 to 264V AC (47 to 63Hz)
  • maximal input inrush current: 80A
  • input current: 1,2A
  • leakage current: 3,5mA
  • data rate: 1Gb
  • withstand voltage I/P-O/P: 4242V DC
  • withstand voltage I/P-FG: 2121V DC
  • input plug: C14
  • output plug: RJ45
  • operating temperature: -10 to +40°C
  • dimensions: 166x80x44mm
  • weight: 500g
POE60U-1BTE, Phihong PoE desktop switching power supplies, 60W, POE60U series

POE60U-1BTE

236112 POE60U-1BTE POE60U-1BTE Phihong desktop power supply series POE60U. PoE injectors with 60W, a universal input, protection class I and a single port. These desktop switching power supplies are able to supply devices with voltage through the data line and are protected against overload, short circuit as well as overvoltage. They have an LED status display and comply with IEC60950-1, IEC62368-1, UL60950-1, UL62368-1, EN55032 class B as well as IEEE802.3bt (Hi-PoE). We offer the type POE60U-1BTE of this Phihong series. single output output: 60W input voltage: 90 to 264V AC (47 to 63Hz) maximal input inrush current: 80A input current: 1,2A leakage current: 3,5mA data rate: 1Gb withstand voltage I/P-O/P: 4242V DC withstand voltage I/P-FG: 2121V DC input plug: C14 output plug: RJ45 operating temperature: -10 to +40°C dimensions: 166x80x44mm weight: 500g

Specifications

manufacturer
Manufacturer's name POE60U-1BTE
Output voltage [V] 56
Output current [A] 1,07
Output power [W] 60
Ripple [mVp-p] 100
Data Sheet

Unit price

53,69 €

Stock: 10
Further delivery:
CW 33/2025
