BL 22-0860IDC-GT-10L

IDC female headers

* for flat cables
* thermoplastic, UL94V-0
* contact material: phosphor-bronze: gold-plated
* pitch: 2mm
* rated current: 1.5A
* rated voltage: 100VRMS/150V DC
* operating temperature range: -40...+105°C

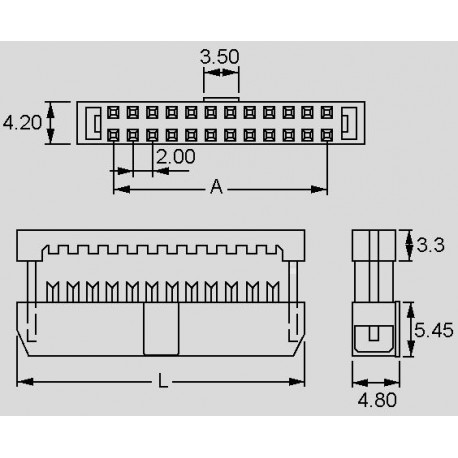

dimensions

BL 22-0860IDC-GT-10L

31828 BL 22-0860IDC-GT-10L 160-1-010-S-KS0 160-1-010-S-KS0 IDC female headers. * for flat cables* thermoplastic, UL94V-0* contact material: phosphor-bronze: gold-plated* pitch: 2mm* rated current: 1.5A* rated voltage: 100VRMS/150V DC* operating temperature range: -40...+105°C

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name 160-1-010-S-KS0
Number of poles 10
A [mm] 8
Length [mm] 15,3

Unit price

0,67 €

Stock: 7
