EEHZA1E331P

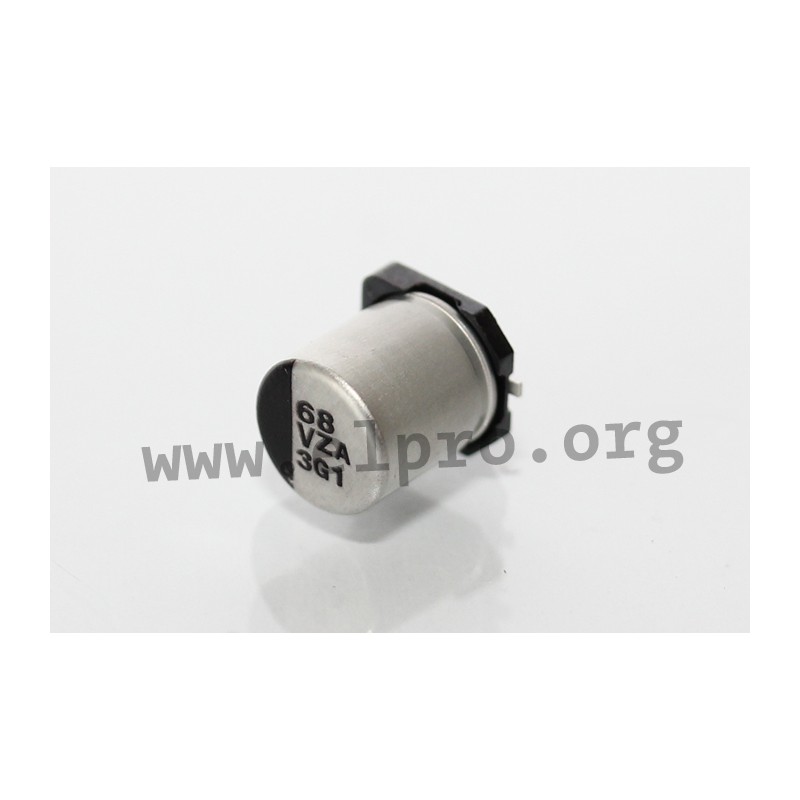

Panasonic electrolytic capacitor series ZA

  • surface mount polymer hybrid aluminium electrolytic capacitors
  • with a low ESR, a high ripple current, a high rated voltage (up to 80V) and a long service life (10000h at 105°C)
  • little characteristics changes by temperature and frequency
  • AEC-Q200 compliant and partly vibration-proof (EEHZA_V)
  • capacitance tolerance: ±20%
  • taped
EEHZA1E331P

EEHZA1E331P

39029 EEHZA1E331P EEHZA1E331P Panasonic electrolytic capacitor series ZA. surface mount polymer hybrid aluminium electrolytic capacitors with a low ESR, a high ripple current, a high rated voltage (up to 80V) and a long service life (10000h at 105°C) little characteristics changes by temperature and frequency AEC-Q200 compliant and partly vibration-proof (EEHZA_V) capacitance tolerance: ±20% taped

Specifications

manufacturer
Manufacturer's name EEHZA1E331P
Design G
Ripple Current (105°C, 100kHz) [mA] 2500
Nominal voltage [V DC] 25
Impedance [mΩ] 20
Loss factor at 120Hz, 20°C 0,14
Capacity [µF] 330
Data Sheet

Unit price

0,598 €

Stock: 0
Next incoming goods:
CW 04/2025
1940 units

Further delivery:
CW 27/2025

Minimum order quantity 10 units or
multiples of 10.
