EEHZA1E470V

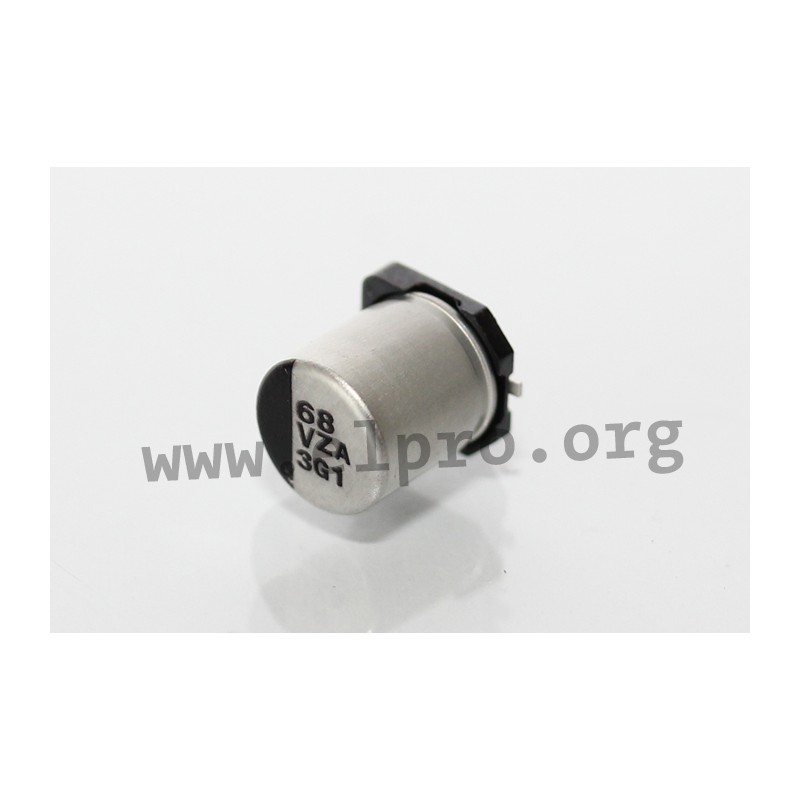

Panasonic electrolytic capacitor series ZA

  • surface mount polymer hybrid aluminium electrolytic capacitors
  • with a low ESR, a high ripple current, a high rated voltage (up to 80V) and a long service life (10000h at 105°C)
  • little characteristics changes by temperature and frequency
  • AEC-Q200 compliant and partly vibration-proof (EEHZA_V)
  • capacitance tolerance: ±20%
  • taped

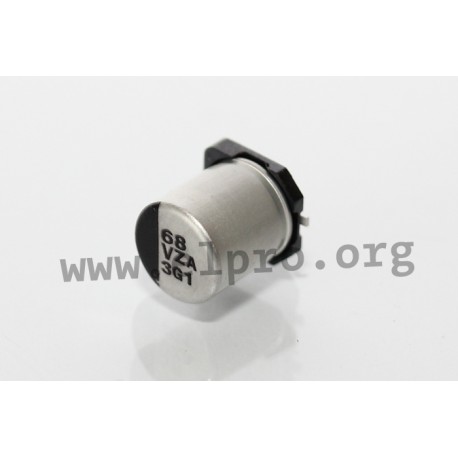

EEHZA1E470V,Panasonic electrolytic capacitors, SMD, 105°, reflow, low ESR, hybrid, 5000h, ZA series

EEHZA1E470V

119419 EEHZA1E470V EEHZA1E470V Panasonic electrolytic capacitor series ZA. surface mount polymer hybrid aluminium electrolytic capacitors with a low ESR, a high ripple current, a high rated voltage (up to 80V) and a long service life (10000h at 105°C) little characteristics changes by temperature and frequency AEC-Q200 compliant and partly vibration-proof (EEHZA_V) capacitance tolerance: ±20% taped

Specifications

manufacturer
Manufacturer's name EEHZA1E470V
Design D
Ripple Current (105°C, 100kHz) [mA] 1300
Nominal voltage [V DC] 25
Impedance [mΩ] 50
Loss factor at 120Hz, 20°C 0,14
Capacity [µF] 47
Data Sheet

Unit price

0,505 €

Stock: 200
Further delivery:
CW 23/2025

Minimum order quantity 10 units or
multiples of 10.
