TX2-24V

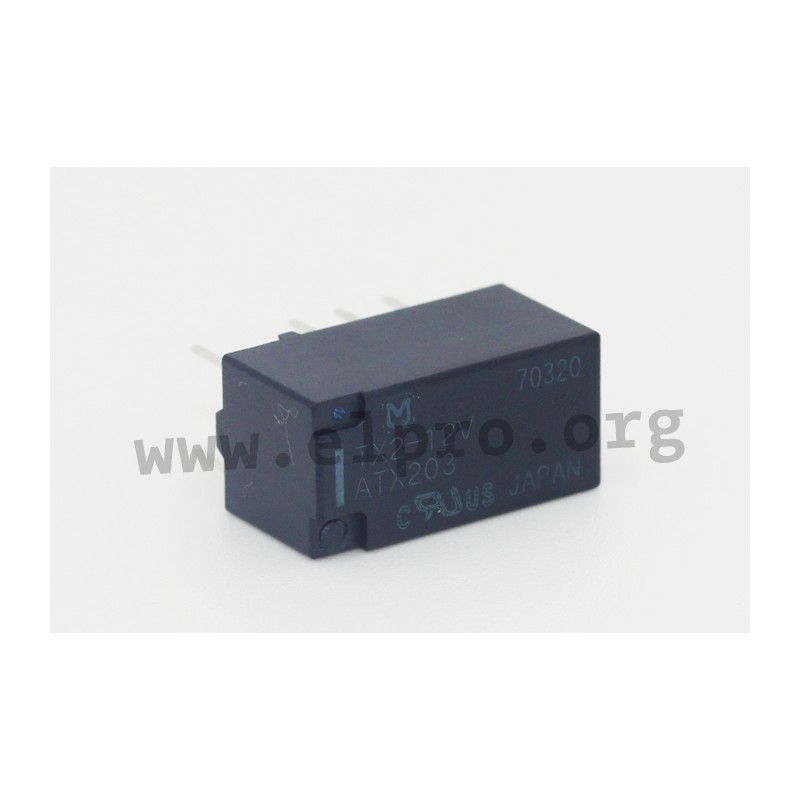

PCB relays 2A, TX2 by Panasonic

* series: TX2
* contact: DPDT

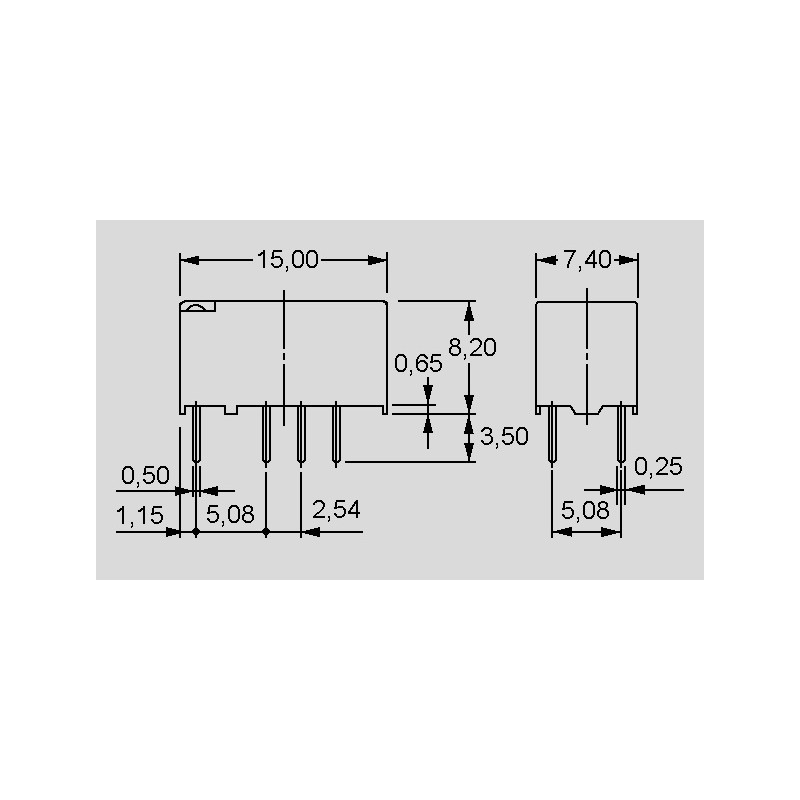

* housing: 15x7.4x8.2mm
* high switching capacity in a compact housing
* high sensitivity: 140mW
* surge withstand between contact and coil: 2000V
* high insulation resistance: min. 100MΩ
* contact material: Ag + Au clad
* max. switching current: 2A
* min. switching voltage: 0.01mA / 10mV DC
* max. switching voltage: 250V AC / 220V DC
* max. switching power: 60VA / 30W
* max. operate/release time: 4/4ms
* testing voltage coil/contact (1 min.): 2000V AC
* testing voltage contact/contact (1 min.): 1000V AC
* min. lifetime mechanical: 108operations
* min. lifetime electrical: 105 operations
* operating temperature: -40...+85°C
* by Panasonic
* weight approx.: 2g

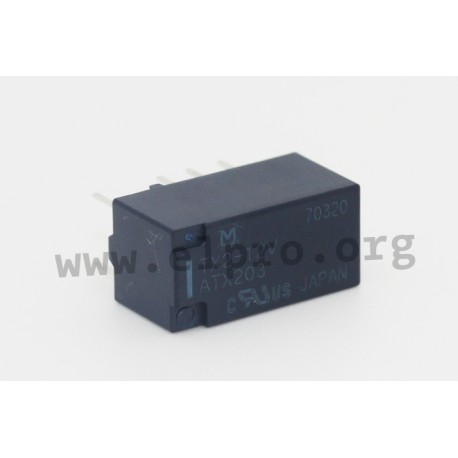

series TX2 by Panasonic

TX2-24V

44216 TX2-24V TX2-24V PCB relays 2A, TX2 by Panasonic. * series: TX2* contact: DPDT* housing: 15x7.4x8.2mm* high switching capacity in a compact housing* high sensitivity: 140mW* surge withstand between contact and coil: 2000V* high insulation resistance: min. 100MΩ* contact material: Ag + Au clad* max. switching current: 2A* min. switching voltage: 0.01mA / 10mV DC* max. switching voltage: 250V AC / 220V DC* max. switching power: 60VA / 30W* max. operate/release time: 4/4ms* testing voltage coil/contact (1 min.): 2000V AC* testing voltage contact/contact (1 min.): 1000V AC* min. lifetime mechanical: 108operations* min. lifetime electrical: 105 operations* operating temperature: -40...+85°C* by Panasonic* weight approx.: 2g

Specifications

manufacturer
Manufacturer's name TX2-24V
Rated current [mA] 5,8
Nominal resistance [Ω] 4114
Switching current [A] 2
Nominal capacity [mW] 140
