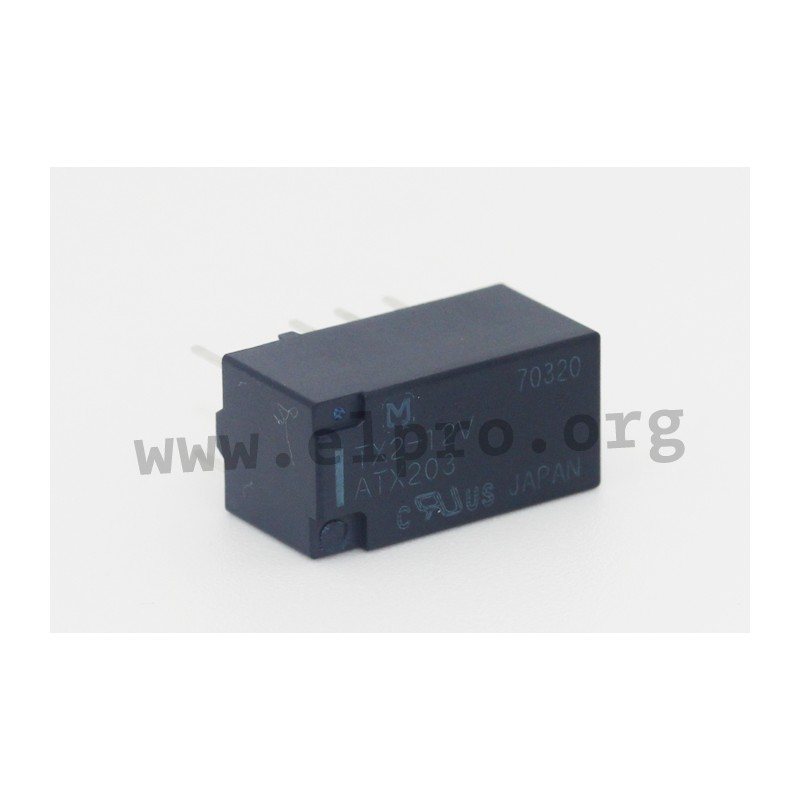

TX2-12V

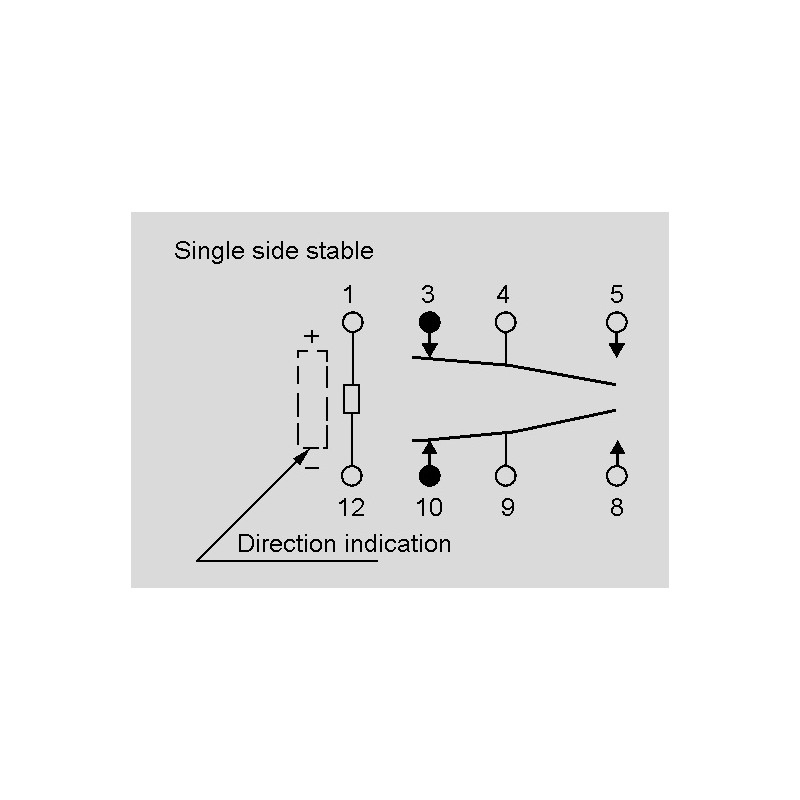

* contact: DPDT

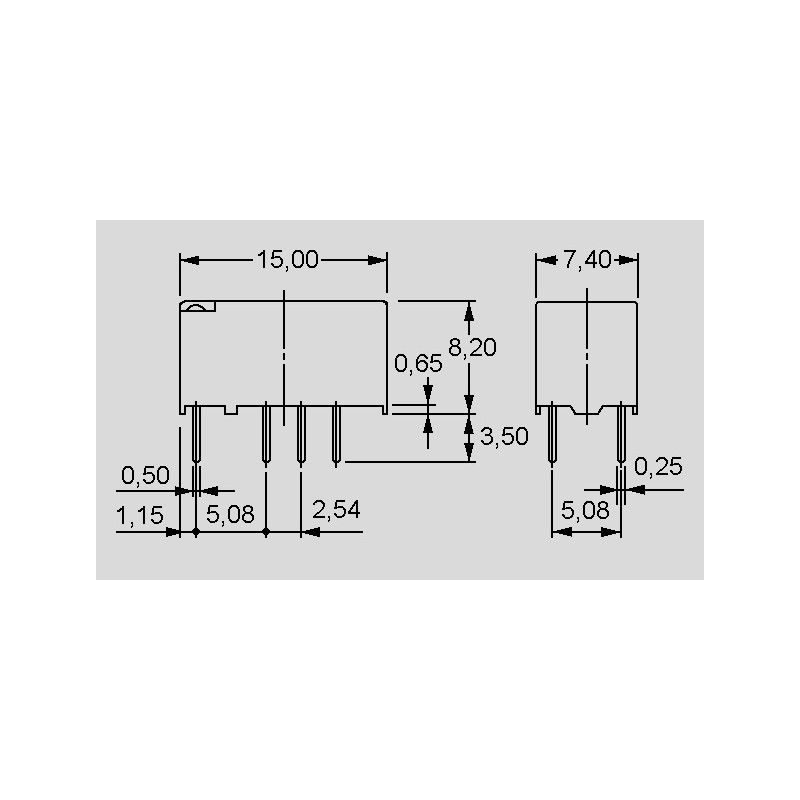

* housing: 15x7.4x8.2mm
* high switching capacity in a compact housing
* high sensitivity: 140mW
* surge withstand between contact and coil: 2000V
* high insulation resistance: min. 100MΩ
* contact material: Ag + Au clad
* max. switching current: 2A
* min. switching voltage: 0.01mA / 10mV DC
* max. switching voltage: 250V AC / 220V DC
* max. switching power: 60VA / 30W
* max. operate/release time: 4/4ms
* testing voltage coil/contact (1 min.): 2000V AC
* testing voltage contact/contact (1 min.): 1000V AC
* min. lifetime mechanical: 108operations
* min. lifetime electrical: 105 operations
* operating temperature: -40...+85°C
* by Panasonic
* weight approx.: 2g
PCB relays 2A, TX2 by Panasonic
* series: TX2* contact: DPDT
* housing: 15x7.4x8.2mm
* high switching capacity in a compact housing
* high sensitivity: 140mW
* surge withstand between contact and coil: 2000V
* high insulation resistance: min. 100MΩ
* contact material: Ag + Au clad
* max. switching current: 2A
* min. switching voltage: 0.01mA / 10mV DC
* max. switching voltage: 250V AC / 220V DC
* max. switching power: 60VA / 30W
* max. operate/release time: 4/4ms
* testing voltage coil/contact (1 min.): 2000V AC
* testing voltage contact/contact (1 min.): 1000V AC
* min. lifetime mechanical: 108operations
* min. lifetime electrical: 105 operations
* operating temperature: -40...+85°C
* by Panasonic
* weight approx.: 2g

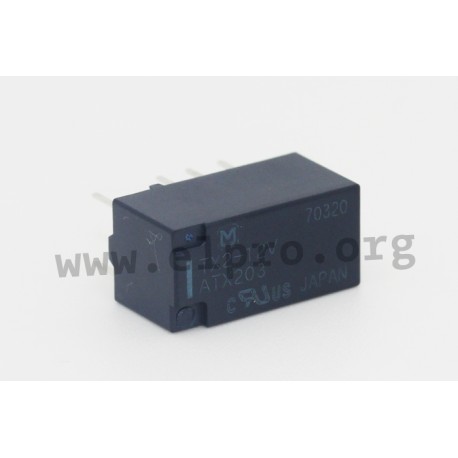

TX2-12V
Specifications
| manufacturer | Panasonic |
| Manufacturer's name | TX2-12V |
| Rated current [mA] | 11,7 |
| Nominal resistance [Ω] | 1028 |
| Switching current [A] | 2 |
| Nominal capacity [mW] | 140 |
