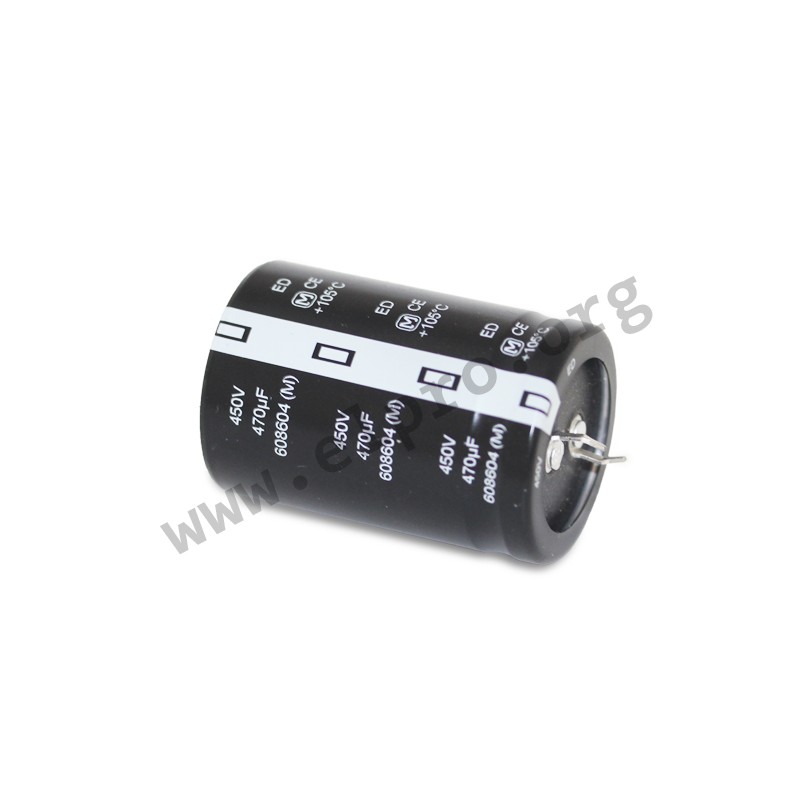

TS-ED 450 V 470 µF 105°

Panasonic capacitor series TS-ED

Electrolytic capacitors with a service life of 3000h at 105°C. These caps are suitable for snap-in mounting and have a high ripple current capability. We offer the following types of this Panasonic series: EETED2W391EA and EETED2W471EA.

  • rated voltage: 450V DC
  • capacitance tolerance: ±20%
  • operating temperature: -25 to +105°C
  • pitch: 10mm
EETED2W471EA, Panasonic electrolytic capacitors, radial, pitch 10mm, snap-in, 105°C, TS-ED series

TS-ED 450 V 470 µF 105°

3996 TS-ED 450 V 470 µF 105° EETED2W471EA EETED2W471EA Panasonic capacitor series TS-ED. Electrolytic capacitors with a service life of 3000h at 105°C. These caps are suitable for snap-in mounting and have a high ripple current capability. We offer the following types of this Panasonic series: EETED2W391EA and EETED2W471EA. rated voltage: 450V DC capacitance tolerance: ±20% operating temperature: -25 to +105°C pitch: 10mm

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name EETED2W471EA
Nominal voltage [V] 450
Capacity [µF] 470
D x L [mm] 35x50
Pitch [mm] 10
Data Sheet

Unit price

7,70 €

Stock: 40
