EEETC1V101P

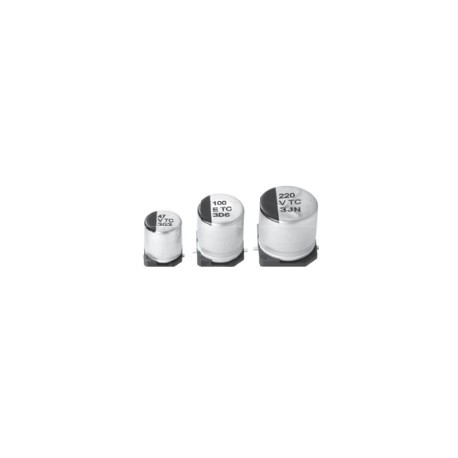

SMD electrolytic capacitors series TC-V

We are offering the following capacitors in a taped style by Panasonic: EEETC1A221P, EEETC1A331P, EEETC1A471P, EEETC1C101XP, EEETC1C101P, EEETC1C221P, EEETC1C331P, EEETC1C471P, EEETC1E101P, EEETC1E221P, EEETC1E331P, EEETC1V470XP, EEETC1V470P, EEETC1V101P and EEETC1V221P.

• capacitance tolerance: ±20%
• temperature range: -40°C to +125°C
• operating life (at 125°C): 3000h

SMD-electrolytic capacitors series FKS

EEETC1V101P

109913 EEETC1V101P EEETC1V101P SMD electrolytic capacitors series TC-V. We are offering the following capacitors in a taped style by Panasonic: EEETC1A221P, EEETC1A331P, EEETC1A471P, EEETC1C101XP, EEETC1C101P, EEETC1C221P, EEETC1C331P, EEETC1C471P, EEETC1E101P, EEETC1E221P, EEETC1E331P, EEETC1V470XP, EEETC1V470P, EEETC1V101P and EEETC1V221P. • capacitance tolerance: ±20%• temperature range: -40°C to +125°C• operating life (at 125°C): 3000h

Specifications

manufacturer
Manufacturer's name EEETC1V101P
Reverse current [mA] 410
Nominal voltage [V DC] 35
Impedance [Ω] 0,2
Loss factor at 120Hz, 20°C 0,16
Data Sheet

Unit price

0,364 €

Stock: 200
Next incoming goods:
CW 05/2025
1000 units

Further delivery:
CW 17/2025

Minimum order quantity 100 units or
multiples of 100.
