> Passive elements>Capacitors>Electrolytic capacitors>Panasonic electrolytic capacitors, SMD, 105°C, 3000h, TC-V series>EEETC1A471P

Manufacturers

EEETC1A471P

SMD electrolytic capacitors series TC-V

We are offering the following capacitors in a taped style by Panasonic: EEETC1A221P, EEETC1A331P, EEETC1A471P, EEETC1C101XP, EEETC1C101P, EEETC1C221P, EEETC1C331P, EEETC1C471P, EEETC1E101P, EEETC1E221P, EEETC1E331P, EEETC1V470XP, EEETC1V470P, EEETC1V101P and EEETC1V221P.

• capacitance tolerance: ±20%
• temperature range: -40°C to +125°C
• operating life (at 125°C): 3000h

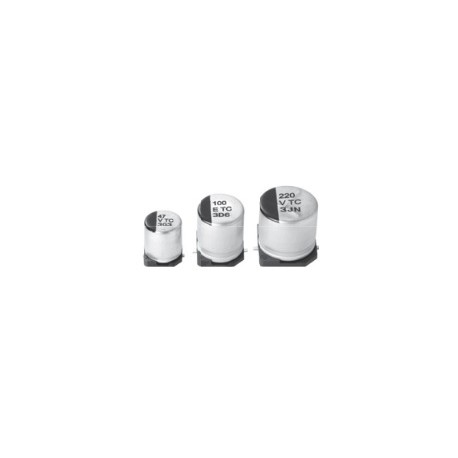

SMD-electrolytic capacitors series TV-C

EEETC1A471P

109904 EEETC1A471P EEETC1A471P SMD electrolytic capacitors series TC-V. We are offering the following capacitors in a taped style by Panasonic: EEETC1A221P, EEETC1A331P, EEETC1A471P, EEETC1C101XP, EEETC1C101P, EEETC1C221P, EEETC1C331P, EEETC1C471P, EEETC1E101P, EEETC1E221P, EEETC1E331P, EEETC1V470XP, EEETC1V470P, EEETC1V101P and EEETC1V221P. • capacitance tolerance: ±20%• temperature range: -40°C to +125°C• operating life (at 125°C): 3000h

Specifications

manufacturer
Manufacturer's name EEETC1A471P
Nominal voltage [V DC] 10
Impedance [Ω] 0,15
Loss factor at 120Hz, 20°C 0,3
Capacity [µF] 470
Data Sheet

Unit price

0,451 €

Stock: 0
Further delivery:
CW 17/2025

Minimum order quantity 500 units or
multiples of 500.
