EEUTA1V101

Panasonic electrolytic capacitor series TA-A and TP-A

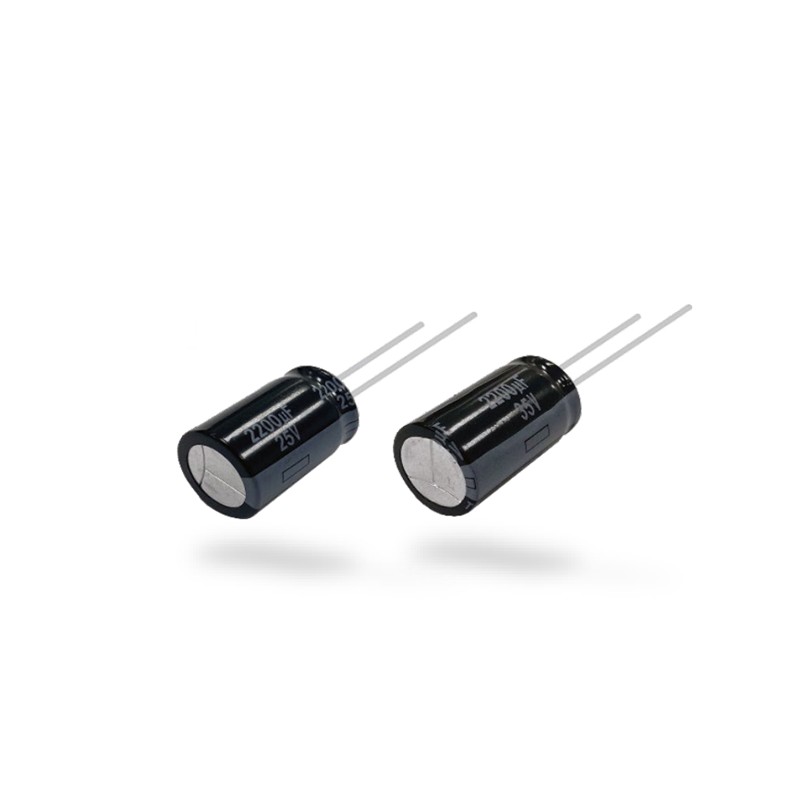

Electrolytic capacitors in an aluminium cup with radial terminals. These caps have an extended temperature range of up to +125°C (EEUTA_) resp. +135°C (EEUTP_) and have a capacitance tolerance of ±20%. They comply with AEC-Q200 and are suitable for PCB mounting. We offer various types of this Panasonic series.

  • rated voltage: 16 to 63V DC
  • capacity: 10 to 2200µF
  • capacitance tolerance: ±20%
  • service life EEUTA_: 2000h (at +125°C)
  • service life EEUTP_: 2000 to 5000h (at +125°C) resp. 1000 to 2000h (at +135°C)
  • bulk
EEUTA1V101, Panasonic electrolytic capacitors, radial, 125°C, TA-A and TP-A series

EEUTA1V101

243622 EEUTA1V101 EEUTA1V101 Panasonic electrolytic capacitor series TA-A and TP-A. Electrolytic capacitors in an aluminium cup with radial terminals. These caps have an extended temperature range of up to +125°C (EEUTA_) resp. +135°C (EEUTP_) and have a capacitance tolerance of ±20%. They comply with AEC-Q200 and are suitable for PCB mounting. We offer various types of this Panasonic series. rated voltage: 16 to 63V DC capacity: 10 to 2200µF capacitance tolerance: ±20% service life EEUTA_: 2000h (at +125°C) service life EEUTP_: 2000 to 5000h (at +125°C) resp. 1000 to 2000h (at +135°C) bulk

Specifications

manufacturer
Manufacturer's name EEUTA1V101
Nominal voltage [V] 35
Capacity [µF] 100
Data Sheet

Unit price

0,528 €

Stock: 200
Further delivery:
CW 18/2025

Minimum order quantity 25 units or
multiples of 25.
