20SVPF560M

Panasonic electrolytic capacitor series SVPF

  • halogen free surface mount OS-CON electrolytic capacitors
  • an ideal frequency characteristic and an excellent noise reduction capability thanks to highly conductive polymers
  • with a high voltage (maximal 50V DC), a high reliability and a long service life (5000h at 105°C)
  • operating temperature: -55 to +105°C
  • capacitance tolerance: ±20%
  • taped
Panasonic SVPF series

20SVPF560M

109794 20SVPF560M 20SVPF560M Panasonic electrolytic capacitor series SVPF. halogen free surface mount OS-CON electrolytic capacitors an ideal frequency characteristic and an excellent noise reduction capability thanks to highly conductive polymers with a high voltage (maximal 50V DC), a high reliability and a long service life (5000h at 105°C) operating temperature: -55 to +105°C capacitance tolerance: ±20% taped

Specifications

manufacturer
Manufacturer's name 20SVPF560M

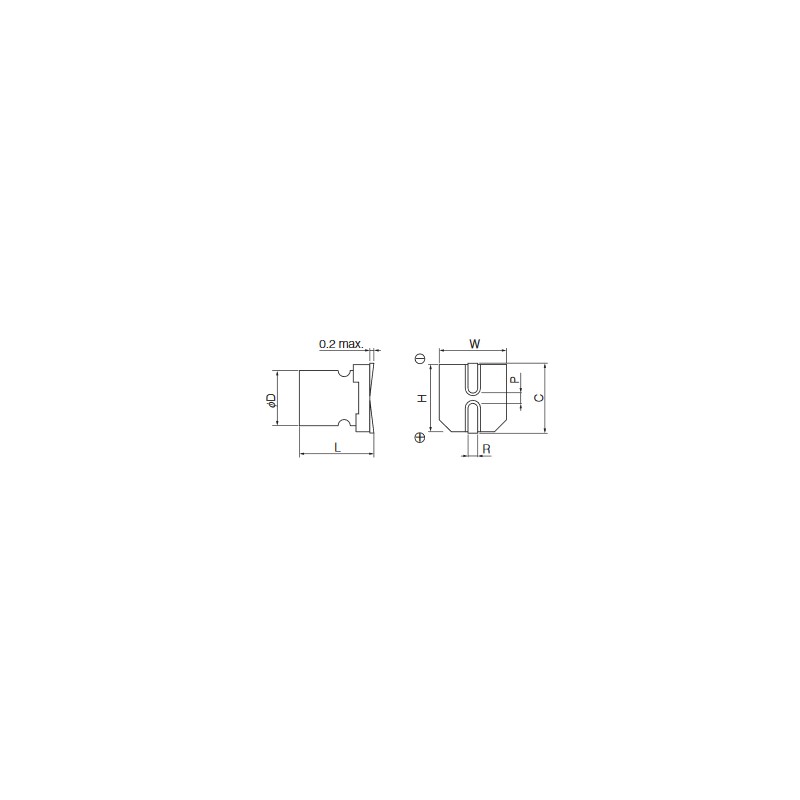

Design F12
Reverse current [mA] 4950
Nominal voltage [V DC] 20
Impedance [mΩ] 12
Capacity [µF] 560
Data Sheet

Unit price

0,945 €

Stock: 4350
Next incoming goods:
CW 19/2025
1200 units

Further delivery:
CW 43/2025

Minimum order quantity 25 units or
multiples of 25.
