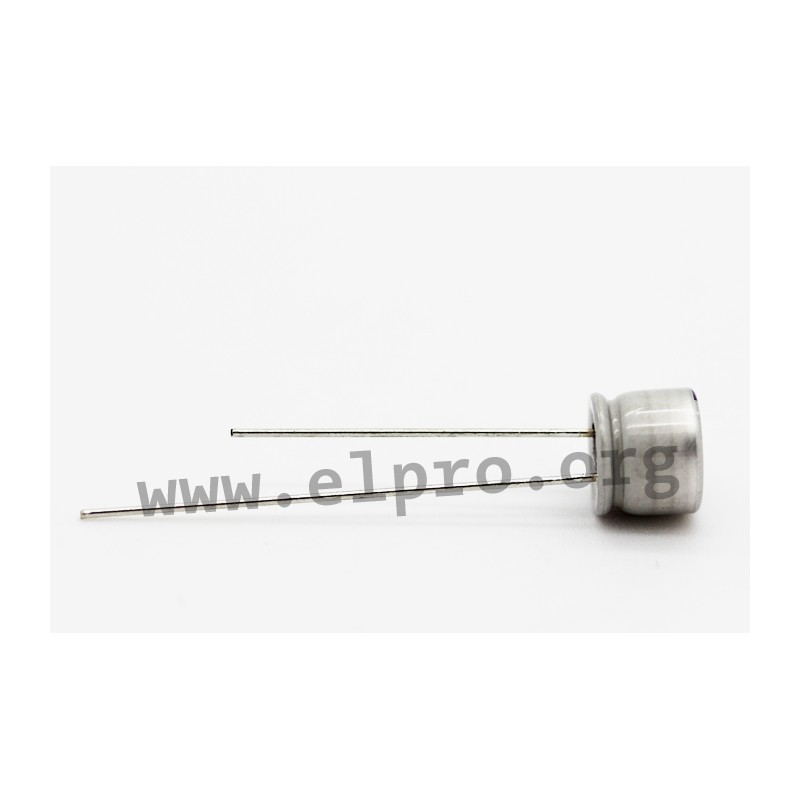

16SEPF180M+TSS

Panasonic electrolytic capacitor series SEPF and SEPG

  • halogen-free polymer aluminium solid capacitors
  • radial type
  • an ideal frequency characteristic and a very good noise reduction capability due to highly conductive polymers
  • with a high reliability, a high heat resistance and a long service life (5000h at 105°C)
  • operating temperature: -55 to +105°C
  • capacitance tolerance: ±20%
  • rated voltage: 16 to 35V DC
  • rated capacity: 22 to 1000µF

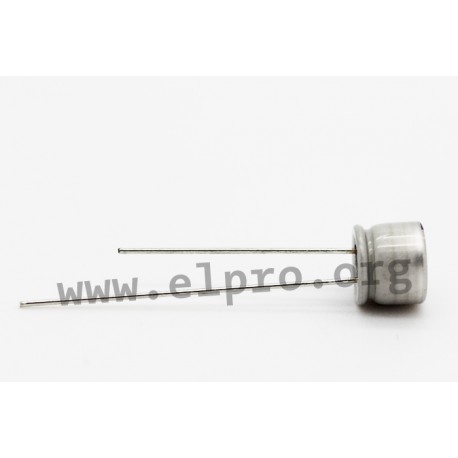

16SEPF180M+TSS, Panasonic electrolytic capacitors, radial, 105°C, OS-CON, SEPF and SEPG series

16SEPF180M+TSS

122099 16SEPF180M+TSS 16SEPF180M+TSS Panasonic electrolytic capacitor series SEPF and SEPG. halogen-free polymer aluminium solid capacitors radial type an ideal frequency characteristic and a very good noise reduction capability due to highly conductive polymers  with a high reliability, a high heat resistance and a long service life (5000h at 105°C) operating temperature: -55 to +105°C capacitance tolerance: ±20% rated voltage: 16 to 35V DC rated capacity: 22 to 1000µF

Specifications

manufacturer
Manufacturer's name 16SEPF180M+TSS
Nominal voltage [V DC] 16
Reverse current [A] 3,3
Loss factor at 120Hz, 25°C 0,12
Capacity [µF] 180
Pitch [mm] 2,5
D [mm] 6,3
L [mm] 6
Data Sheet

Unit price

0,269 €

Stock: 1550
Further delivery:
CW 39/2025

Minimum order quantity 25 units or
multiples of 25.
