> Passive elements>Capacitors>Electrolytic capacitors>Panasonic solid capacitors, radial, 105°C, OS-CON, SEPF and SEPG series>35SEPF82M

Manufacturers

35SEPF82M

Panasonic electrolytic capacitor series SEPF and SEPG

  • halogen-free polymer aluminium solid capacitors
  • radial type
  • an ideal frequency characteristic and a very good noise reduction capability due to highly conductive polymers
  • with a high reliability, a high heat resistance and a long service life (5000h at 105°C)
  • operating temperature: -55 to +105°C
  • capacitance tolerance: ±20%
  • rated voltage: 16 to 35V DC
  • rated capacity: 22 to 1000µF

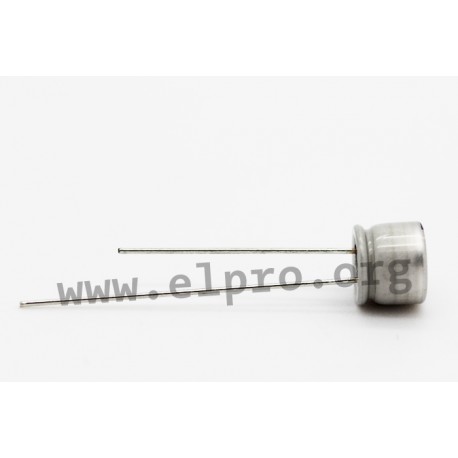

Panasonic SEPF series

35SEPF82M

109753 35SEPF82M 35SEPF82M Panasonic electrolytic capacitor series SEPF and SEPG. halogen-free polymer aluminium solid capacitors radial type an ideal frequency characteristic and a very good noise reduction capability due to highly conductive polymers  with a high reliability, a high heat resistance and a long service life (5000h at 105°C) operating temperature: -55 to +105°C capacitance tolerance: ±20% rated voltage: 16 to 35V DC rated capacity: 22 to 1000µF

Specifications

manufacturer
Manufacturer's name 35SEPF82M
Nominal voltage [V DC] 35
Reverse current [A] 4
Capacity [µF] 82
Pitch [mm] 3,5
D [mm] 8
L [mm] 12
Data Sheet

Unit price

0,782 €

Stock: 900
Further delivery:
CW 39/2025

Minimum order quantity 25 units or
multiples of 25.
