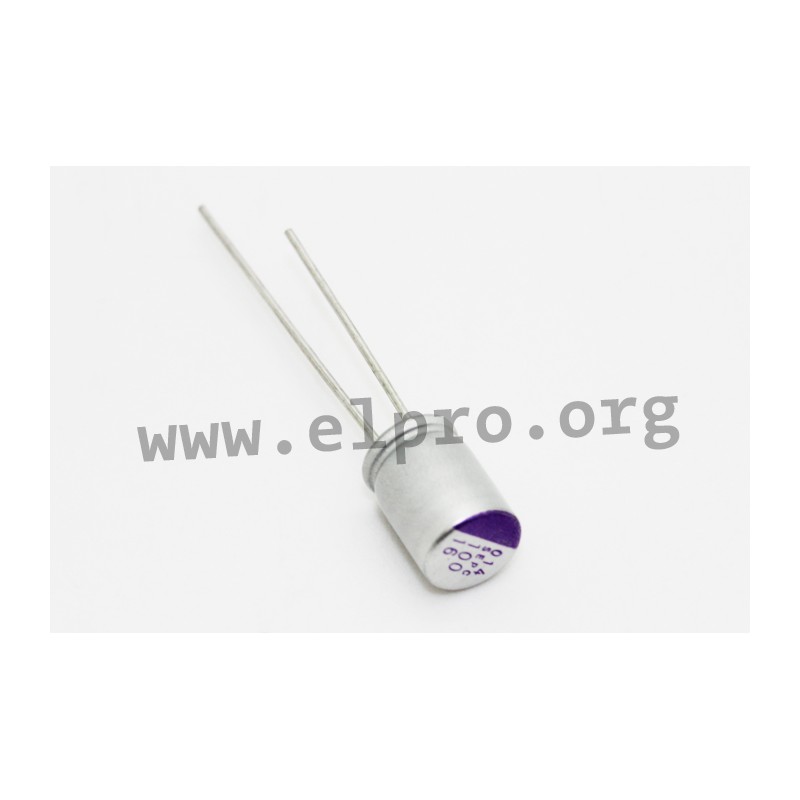

16SEPC100MW

Polymer aluminum solid capacitors series SEPC by Panasonic

These halogen free capacitors have a long life and a super low ESR: 5 to 24mOhm. Furthermore, the capacitors are characterized by a high reliability and a high heat resistance. An excellent reduction of noise and fantastic characteristic is guaranteed by the usage of high conductive polymer in OS-CON to achieve a low equivalent series resistance (ESR). We are offering the following types by Panasonic: 16SEPC100M, 16SEPC100MW, 16SEPC220MD, 16SEPC270M and 16SEPC470M.

• nominal capacitance: 100 to 470µF
• capacitance tolerance: ±20%
• temperature range: -55°C to +105°C
• operating life (at 105°C): 5000h

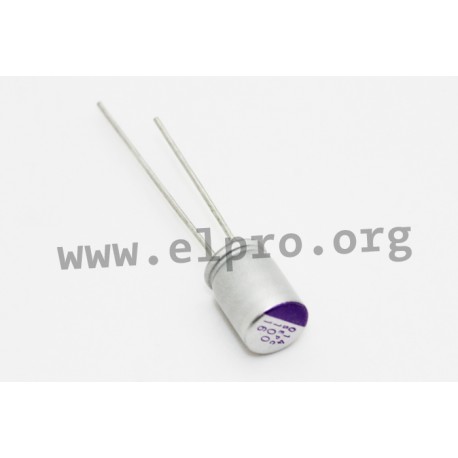

16SEPC100MW, Panasonic solid capacitors, radial, 105°C, super low ESR, OS-CON, SEPC series

16SEPC100MW

109736 16SEPC100MW 16SEPC100MW Polymer aluminum solid capacitors series SEPC by Panasonic. These halogen free capacitors have a long life and a super low ESR: 5 to 24mOhm. Furthermore, the capacitors are characterized by a high reliability and a high heat resistance. An excellent reduction of noise and fantastic characteristic is guaranteed by the usage of high conductive polymer in OS-CON to achieve a low equivalent series resistance (ESR). We are offering the following types by Panasonic: 16SEPC100M, 16SEPC100MW, 16SEPC220MD, 16SEPC270M and 16SEPC470M. • nominal capacitance: 100 to 470µF• capacitance tolerance: ±20%• temperature range: -55°C to +105°C• operating life (at 105°C): 5000h

Specifications

manufacturer
Manufacturer's name 16SEPC100MW
Reverse current [A] 4,68
Nominal voltage [V] 16
Pitch [mm] 2,5
D [mm] 6,3
L [mm] 9
Data Sheet

Unit price

0,478 €

Stock: 0
Next incoming goods:
CW 19/2025
975 units

Further delivery:
CW 39/2025

Minimum order quantity 25 units or
multiples of 25.
