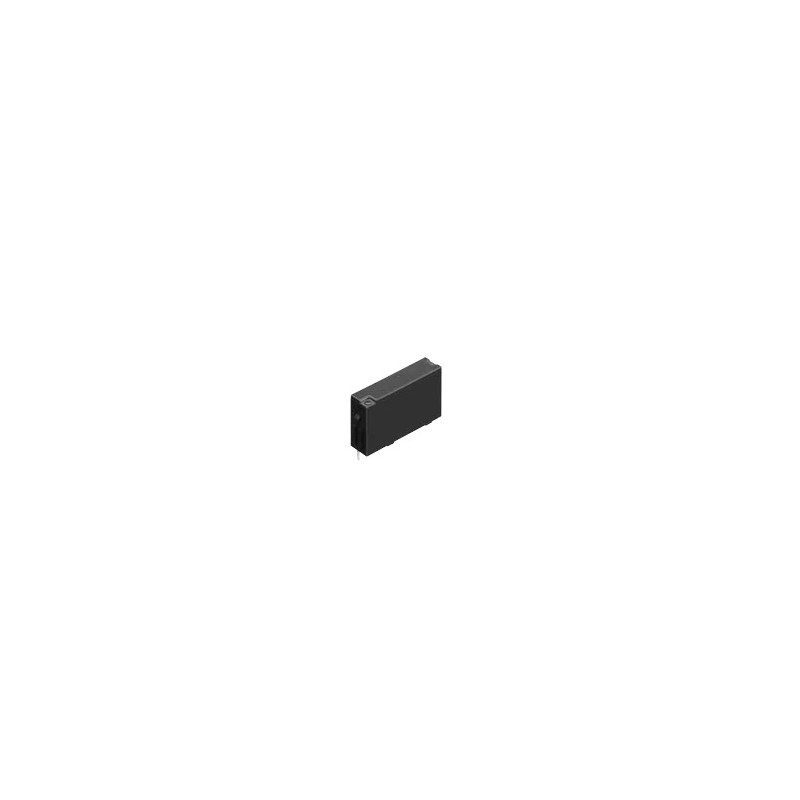

APAN 3112

PCB relays series PA-N / APAN3

They have a slim design with 5mm depth and a high isolation (min. 5.35mm between coil and contact). The impulse withstand voltage between contact and coil is 6000V.

• contact: SPST
• contact material: AgNi
• max. switching current: 5A
• max. switching voltage: 250V AC
• max. switching power: 1.250VA
• max. operate/release time: 10/5ms
• testing voltage
coil/contact (1 min.): 1.000V AC
open contacts (1 min.): 3.000V AC
• min. lifetime
mechanical: 2x107 operations
electrical: 5x104 operations
• operating temperature: -40 to +90°C
• housing: 20x5x12.5 mm
• weight: 3g

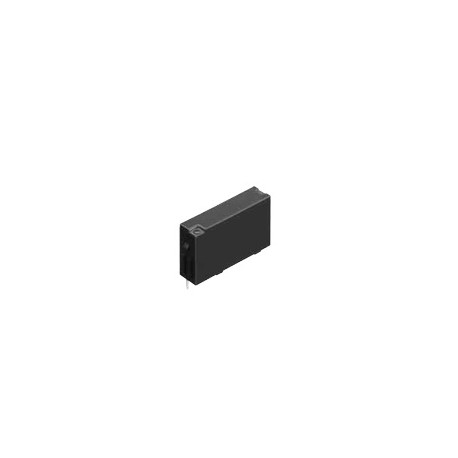

APAN 3112

APAN 3112

107612 APAN 3112 APAN3112 APAN3112 PCB relays series PA-N / APAN3. They have a slim design with 5mm depth and a high isolation (min. 5.35mm between coil and contact). The impulse withstand voltage between contact and coil is 6000V. • contact: SPST• contact material: AgNi• max. switching current: 5A• max. switching voltage: 250V AC• max. switching power: 1.250VA• max. operate/release time: 10/5ms• testing voltagecoil/contact (1 min.): 1.000V ACopen contacts (1 min.): 3.000V AC• min. lifetimemechanical: 2x107 operationselectrical: 5x104 operations• operating temperature: -40 to +90°C• housing: 20x5x12.5 mm• weight: 3g

Specifications

manufacturer
Manufacturer's name APAN3112
Nominal voltage [V DC] 12
Rated current [mA] 9,2
Coil resistance [Ω] 1.309
Nominal capacity [mW] 110
Data Sheet

Unit price

1,30 €

Stock: 200
Further delivery:
CW 20/2025
