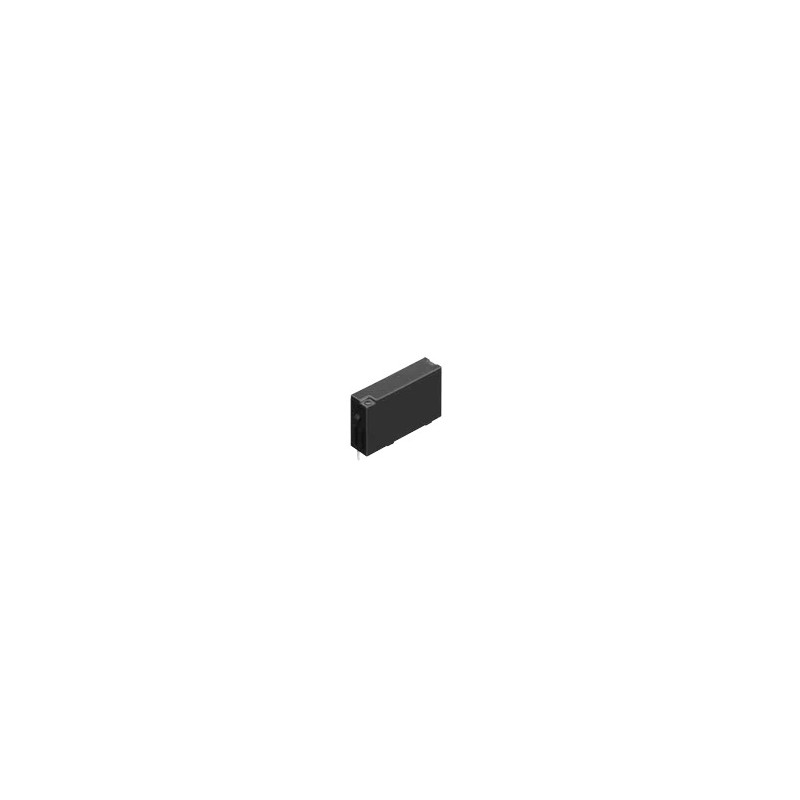

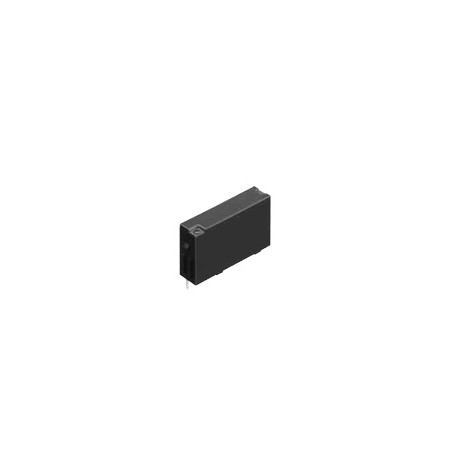

APAN 314 H

PCB relays series PA-N / APAN3

They have a slim design with 5mm depth and a high isolation (min. 5.35mm between coil and contact). The impulse withstand voltage between contact and coil is 6000V.

* contact: SPST
* contact material: AgNi
* max. switching current: 5A
* max. switching voltage: 250V AC
* max. switching power: 1.250VA
* max. operate/release time: 10/5ms
* testing voltage
coil/contact (1 min.): 1.000V AC
open contacts (1 min.): 3.000V AC
* min. lifetime
mechanical: 2x107 operations
electrical: 5x104 operations
* operating temperature: -40 to +90°C
* housing: 20x5x12.5 mm
* weight: 3g

APAN 314 H

APAN 314 H

107610 APAN 314 H APAN314H APAN314H PCB relays series PA-N / APAN3. They have a slim design with 5mm depth and a high isolation (min. 5.35mm between coil and contact). The impulse withstand voltage between contact and coil is 6000V. * contact: SPST* contact material: AgNi* max. switching current: 5A* max. switching voltage: 250V AC* max. switching power: 1.250VA* max. operate/release time: 10/5ms* testing voltagecoil/contact (1 min.): 1.000V ACopen contacts (1 min.): 3.000V AC* min. lifetimemechanical: 2x107 operationselectrical: 5x104 operations* operating temperature: -40 to +90°C* housing: 20x5x12.5 mm* weight: 3g

Specifications

manufacturer
Manufacturer's name APAN314H
Nominal voltage [V DC] 4,5
Rated current [mA] 24,4
Coil resistance [Ω] 184
Response voltage [V] 3,15
Release voltage [V] 0,225
Nominal capacity [mW] 110
Data Sheet

Unit price

5,39 €

Stock: 55
Further delivery:
CW 06/2025
